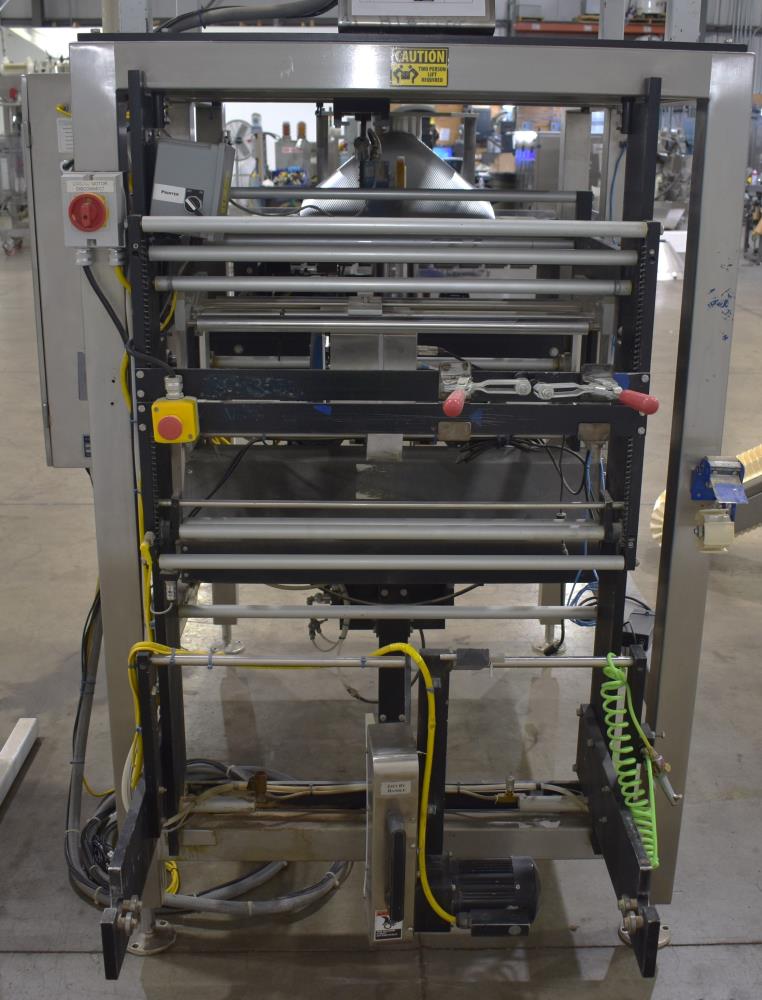

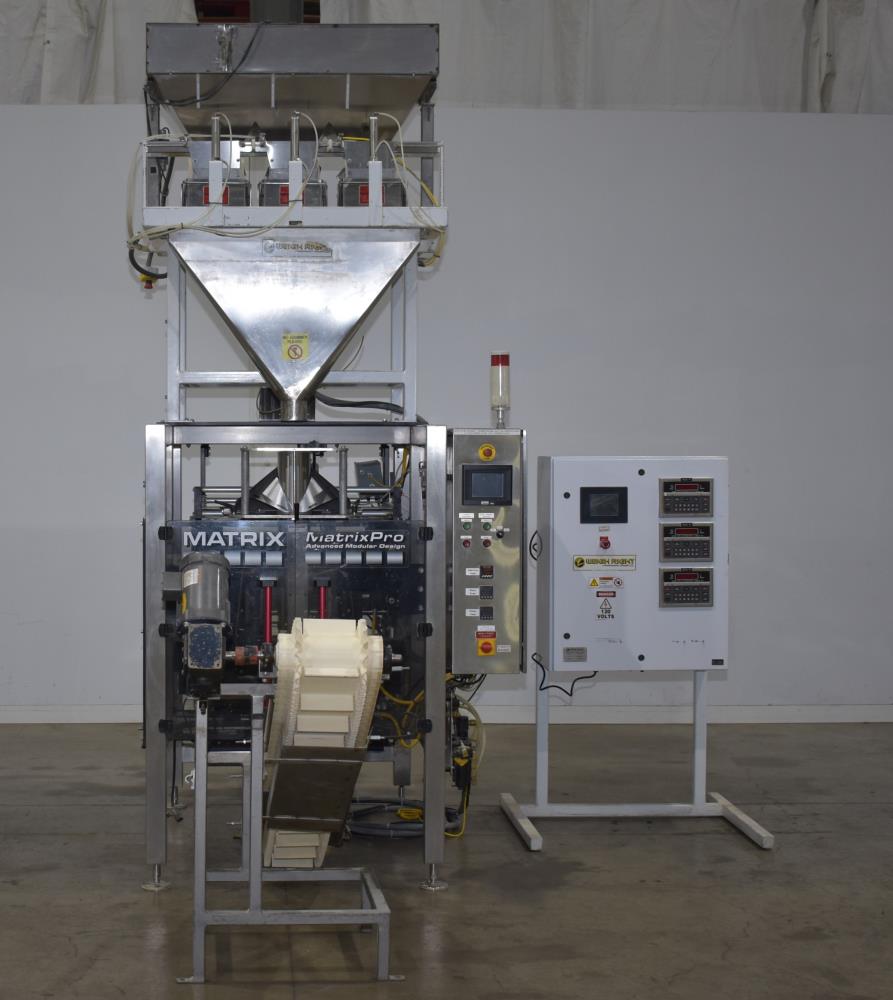

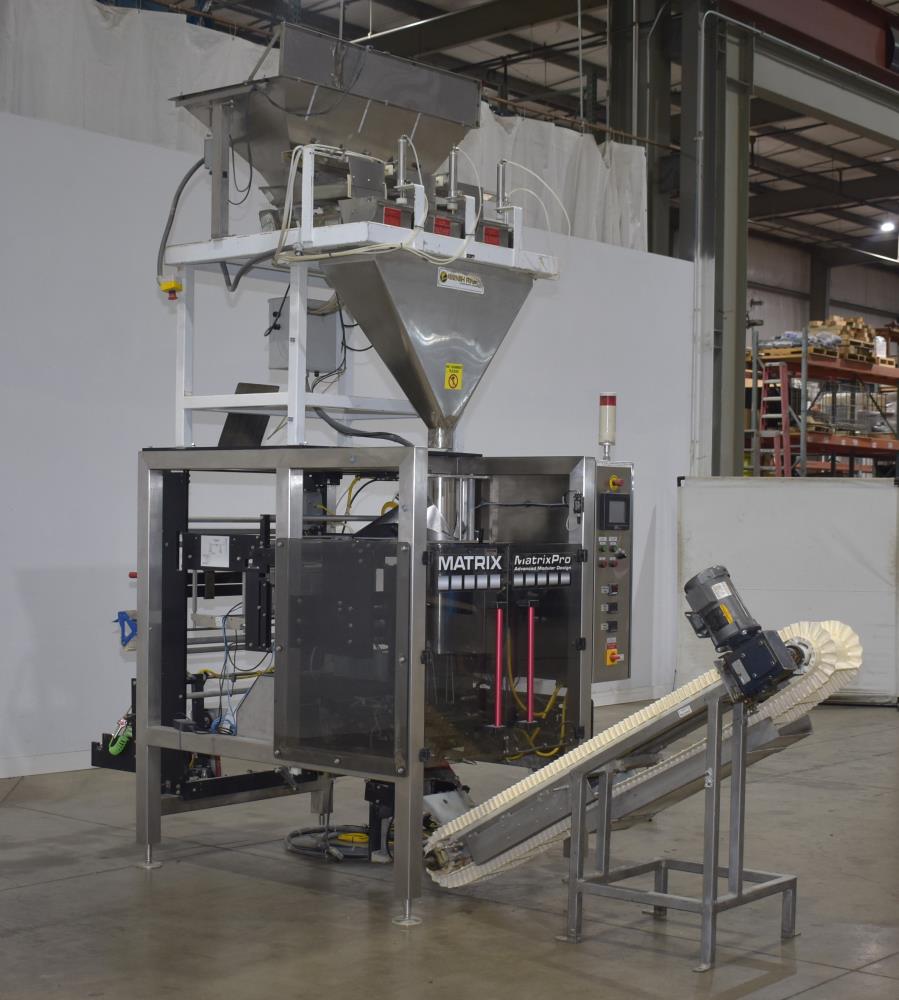

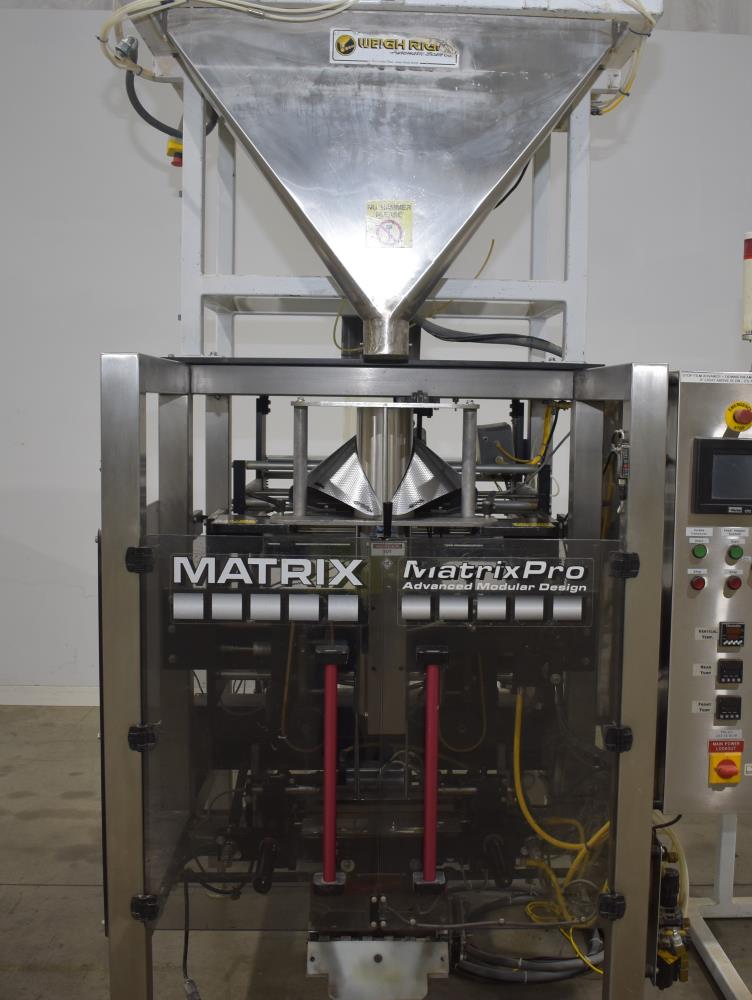

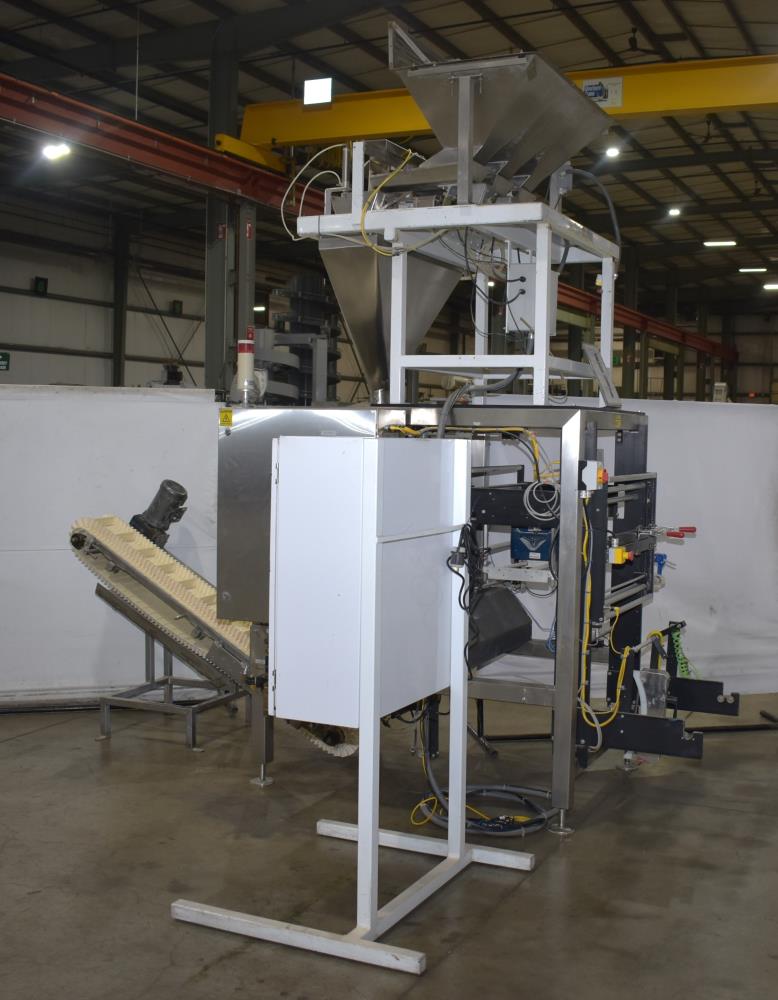

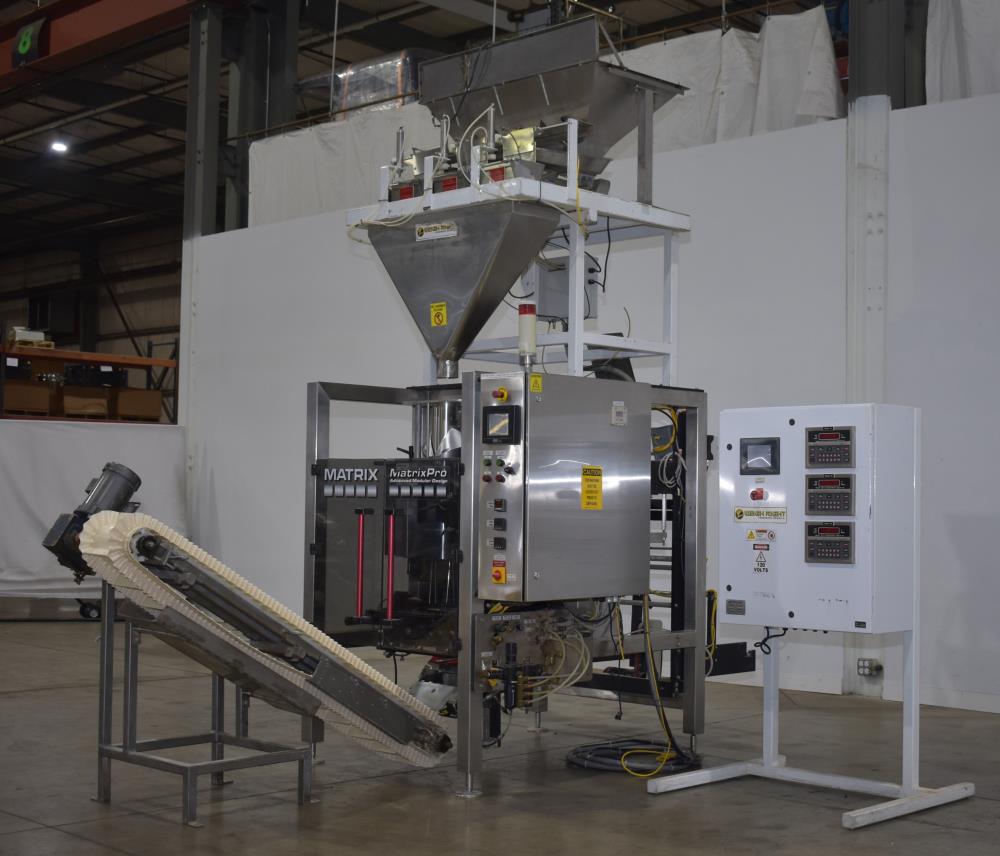

Used Matrix Pro Series Model 20135R is a high-performance vertical form fill seal (VFFS) machine, designed for efficient and precise bagging operations. Capable of operating at speeds of up to 105 bags per minute (BPM) (depending on product and film type), this machine is ideal for high-speed packaging applications across food, pharmaceutical, and industrial sectors.
The system supports a bag size range of:
- Width: 1.75″ – 13″ (44mm – 330mm)
- Length: 2.5″ – 15″ (60mm – 390mm) (single pull)

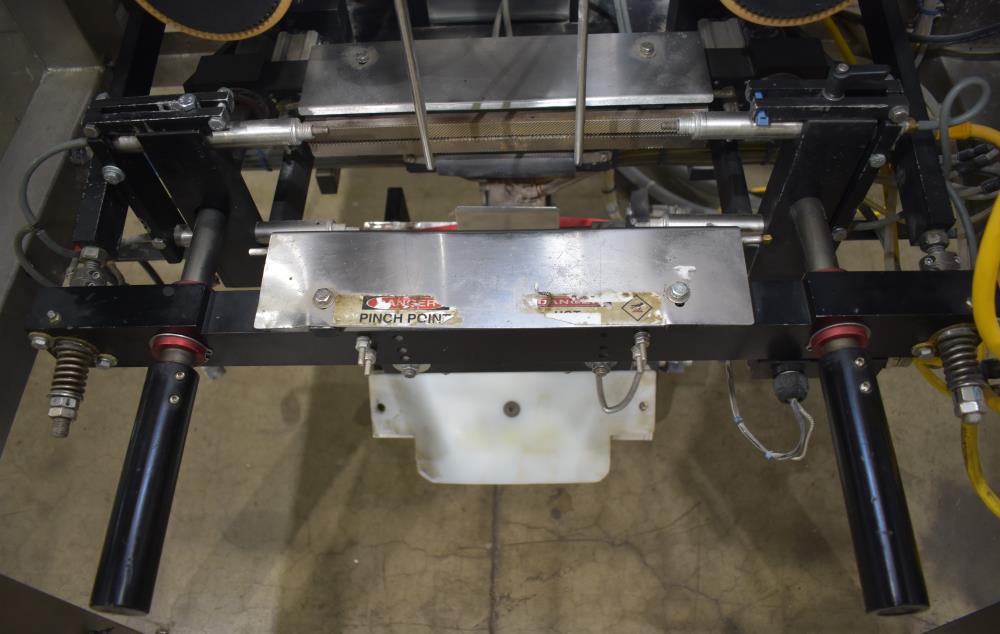

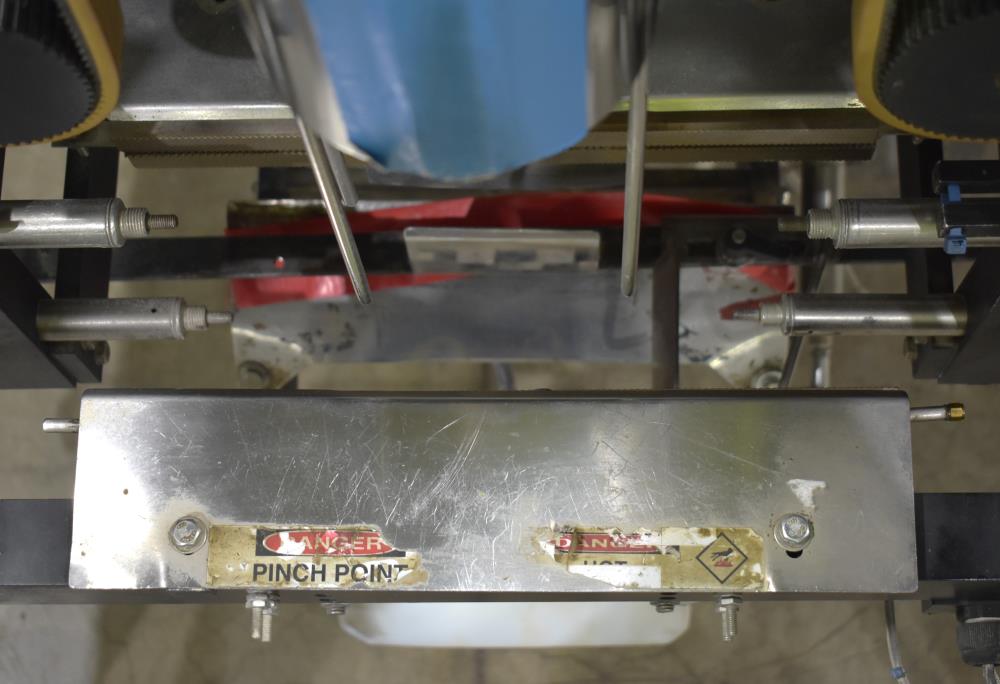

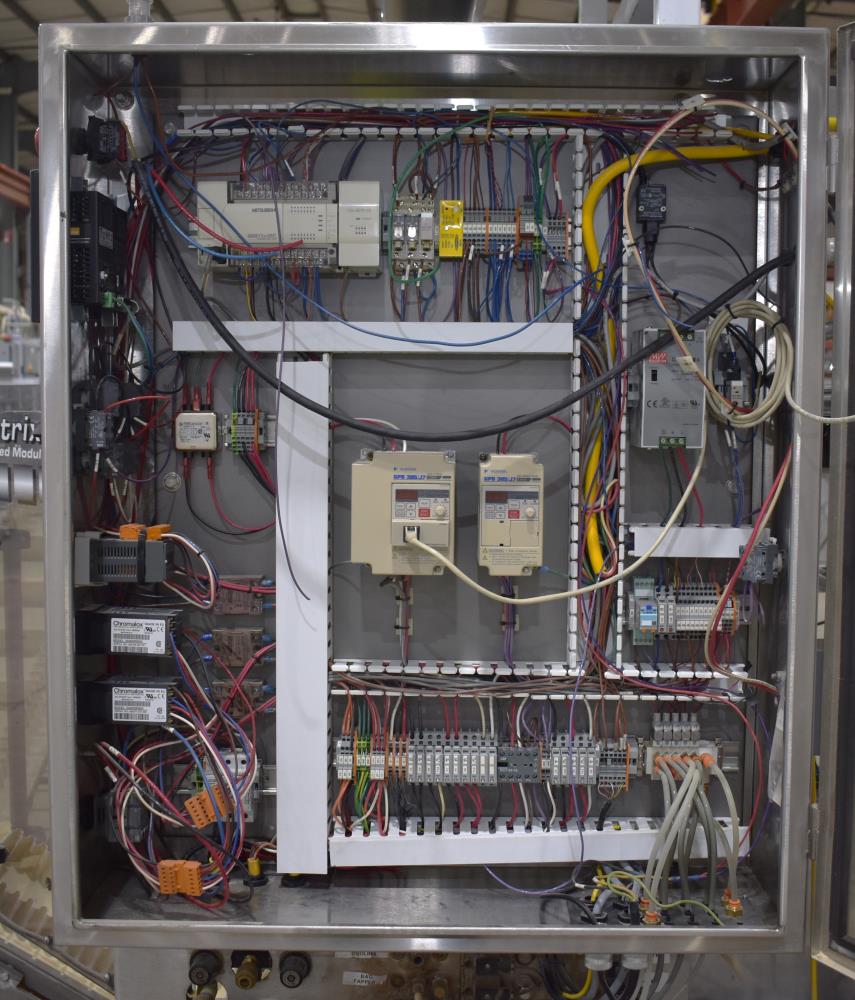

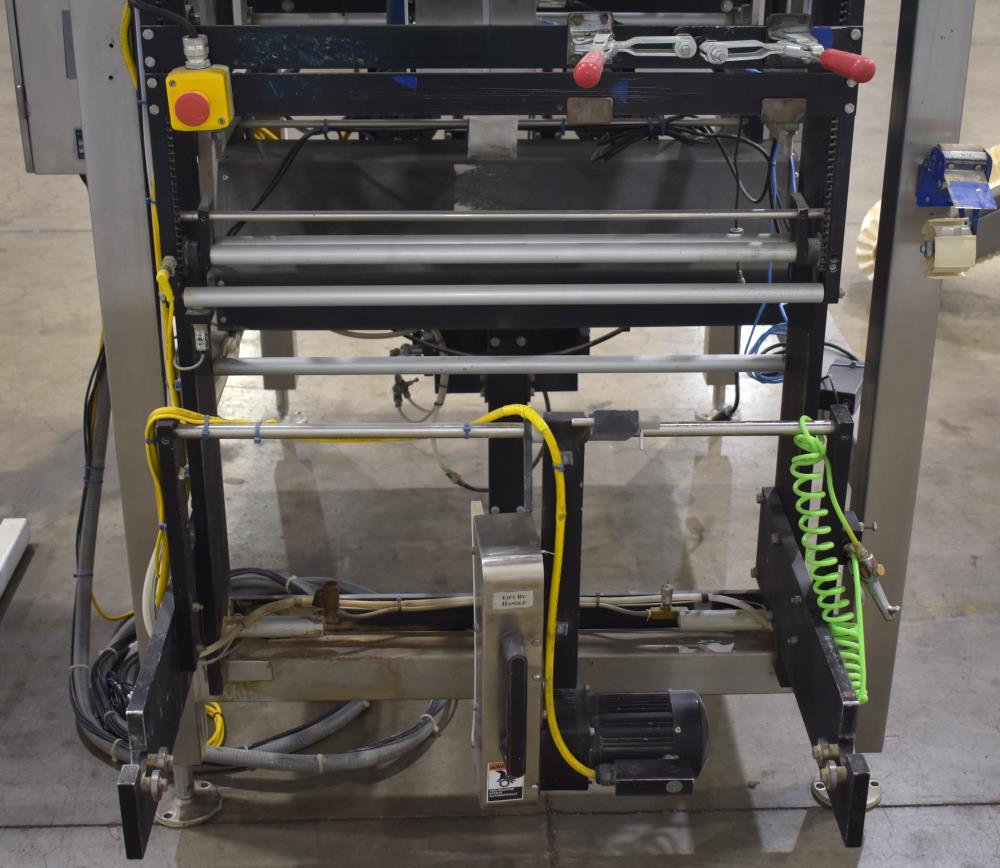

Designed with side belt pull-downs, film registration, and top & bottom gusseting, this unit ensures precise film handling and consistent packaging quality. It features a Mitsubishi MELSEC FX2N-32MT PLC, (2) Omron Sysdrive 3G3JV inverters, and a Parker HMI, providing smooth operation, user-friendly controls, and high-accuracy bagging. Includes a Domino V220i coder for batch coding, expiration dates, and traceability.

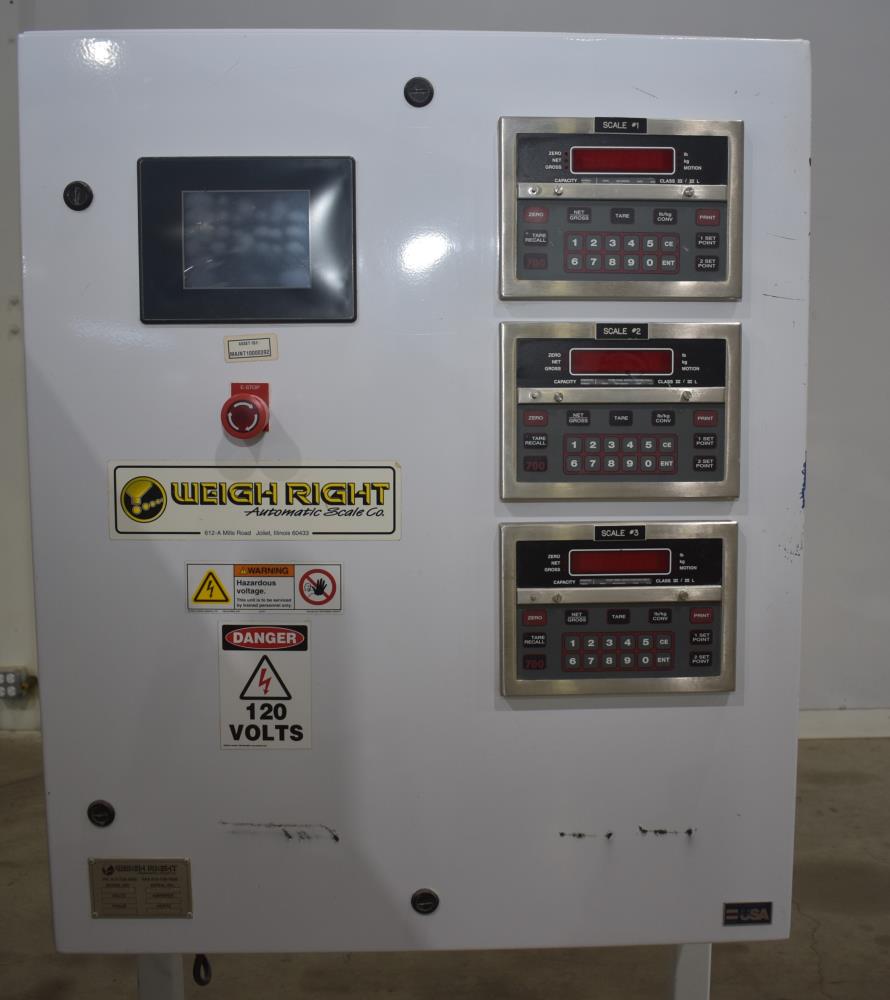

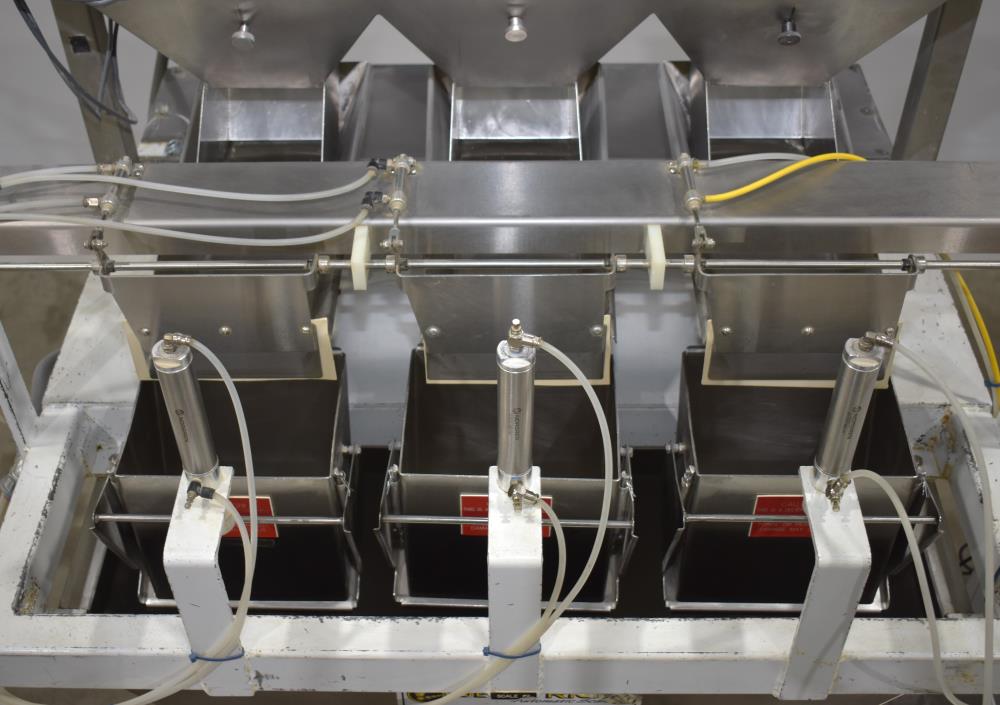

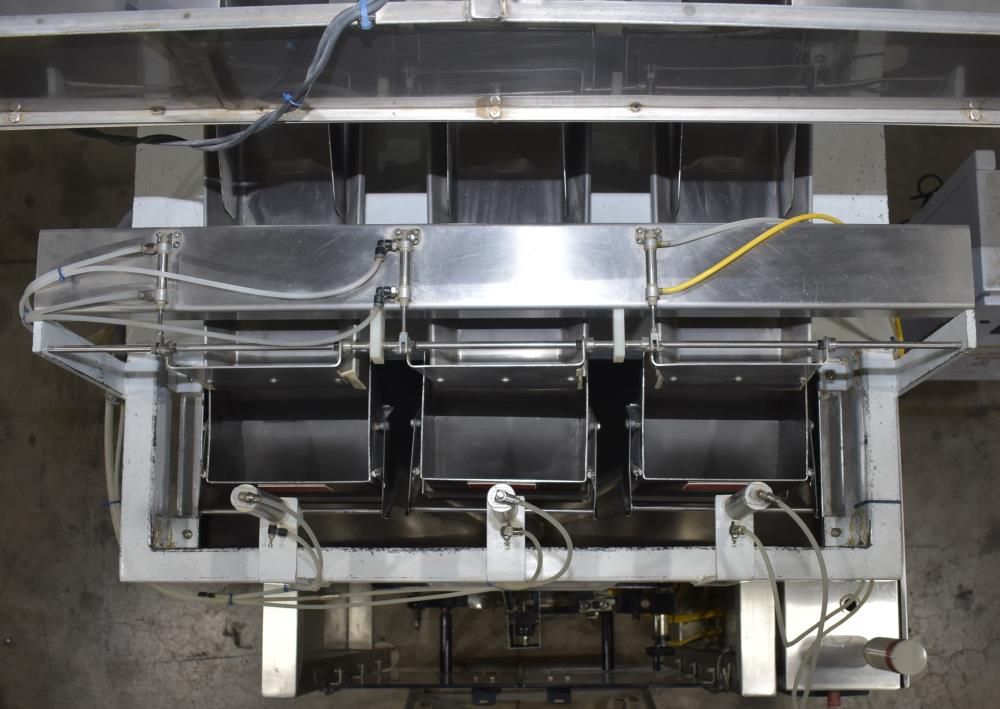

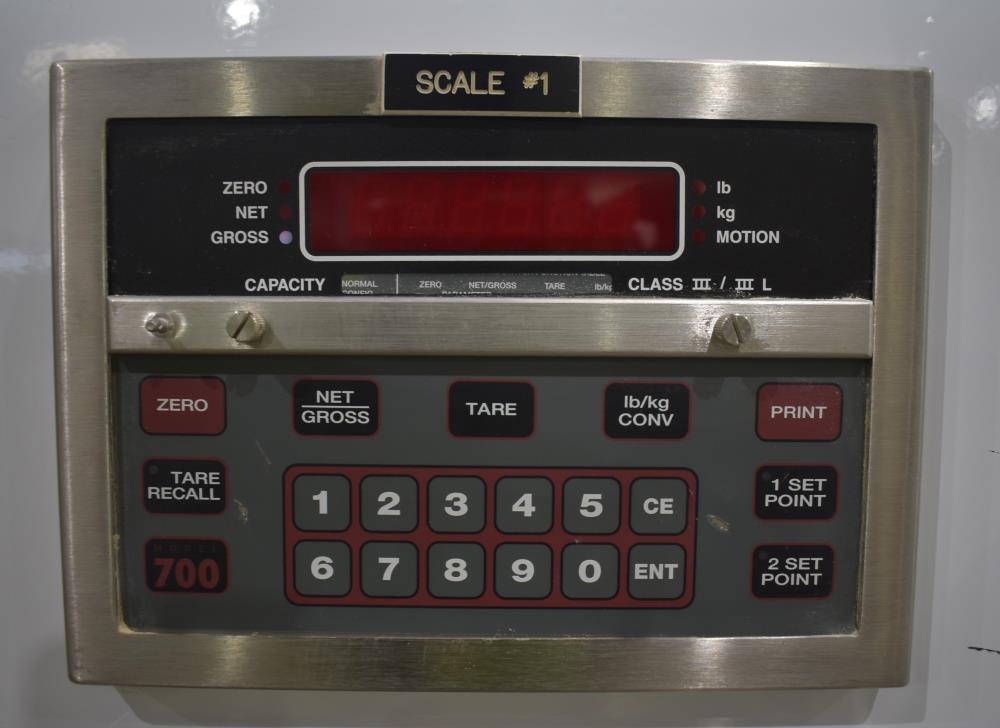

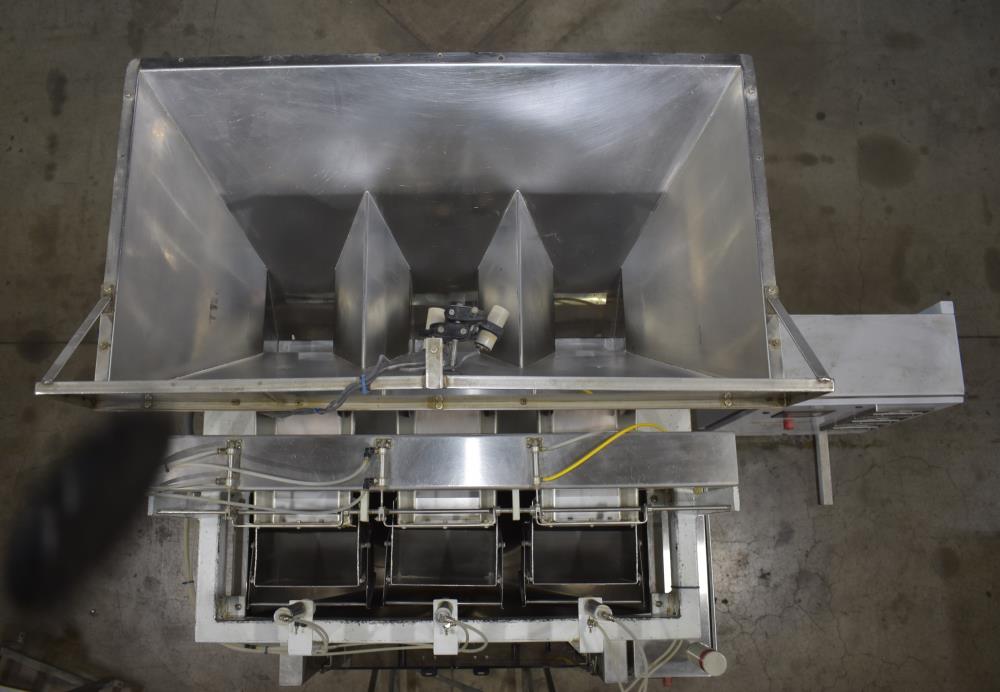

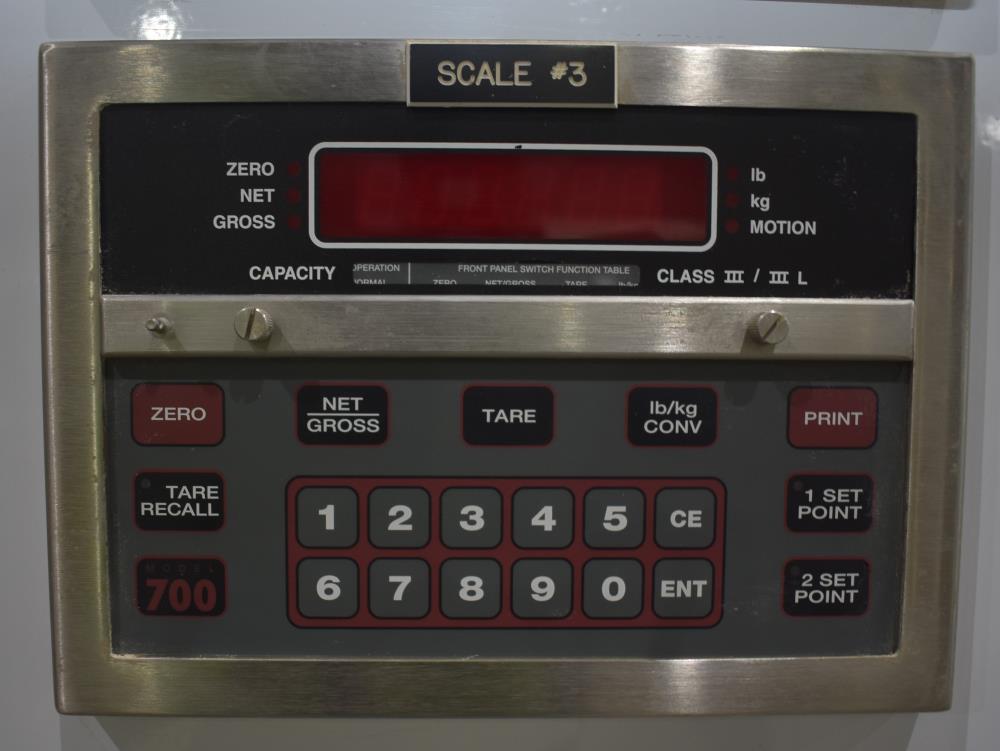

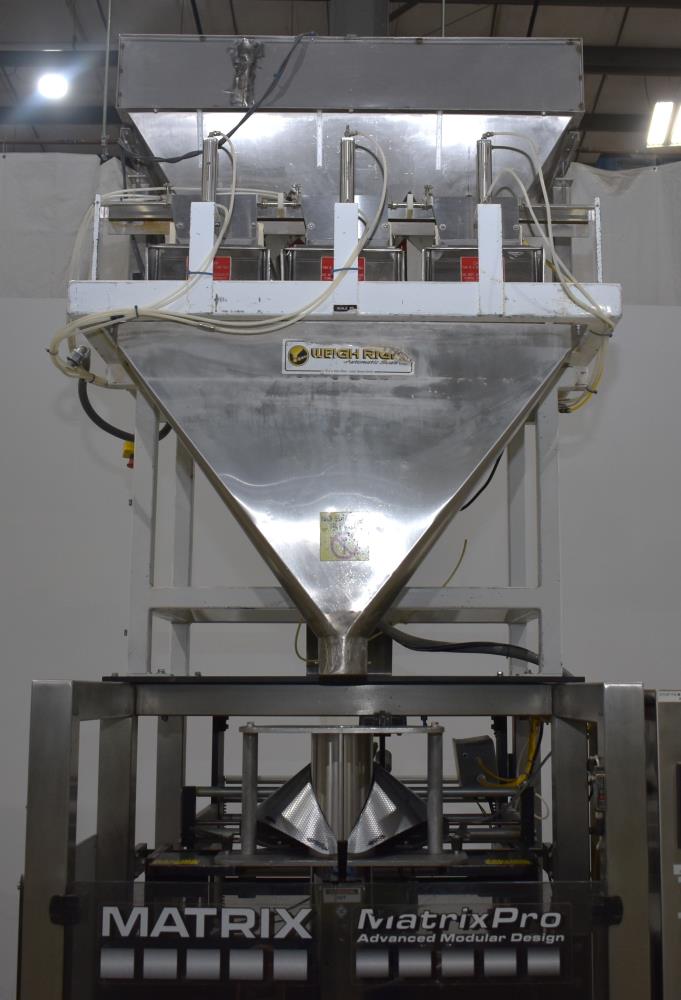

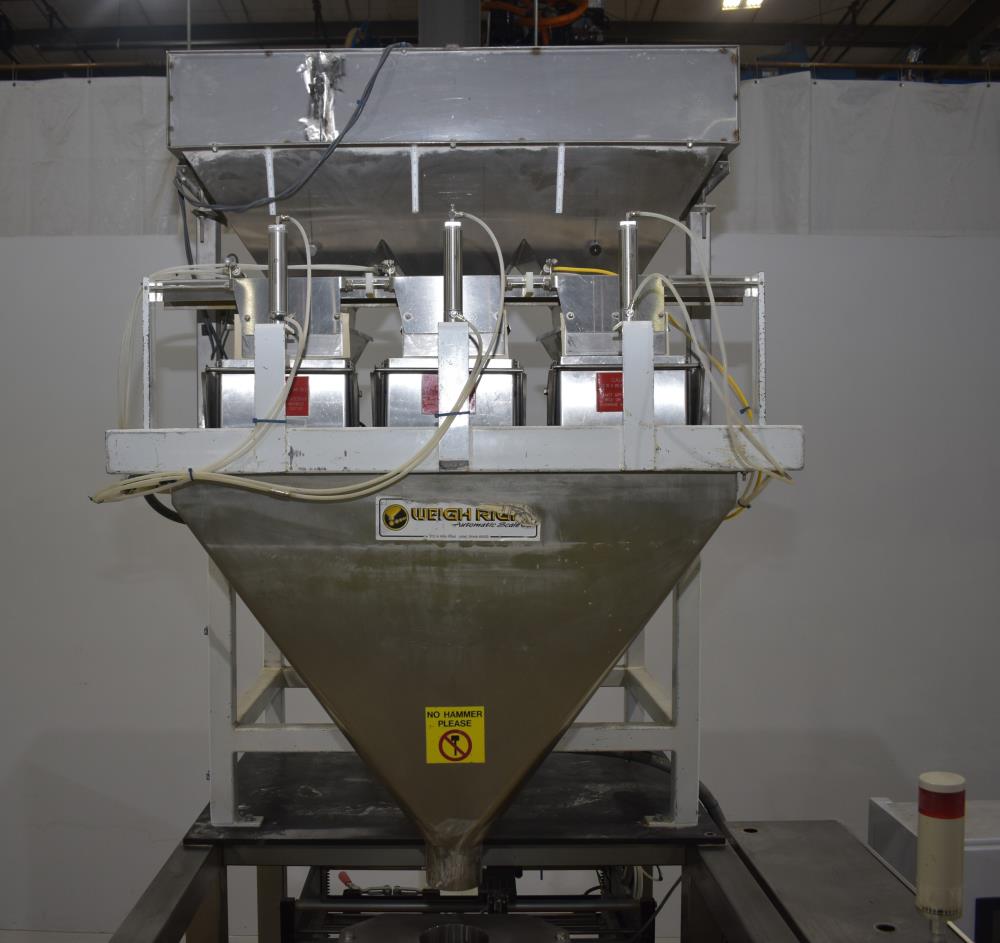

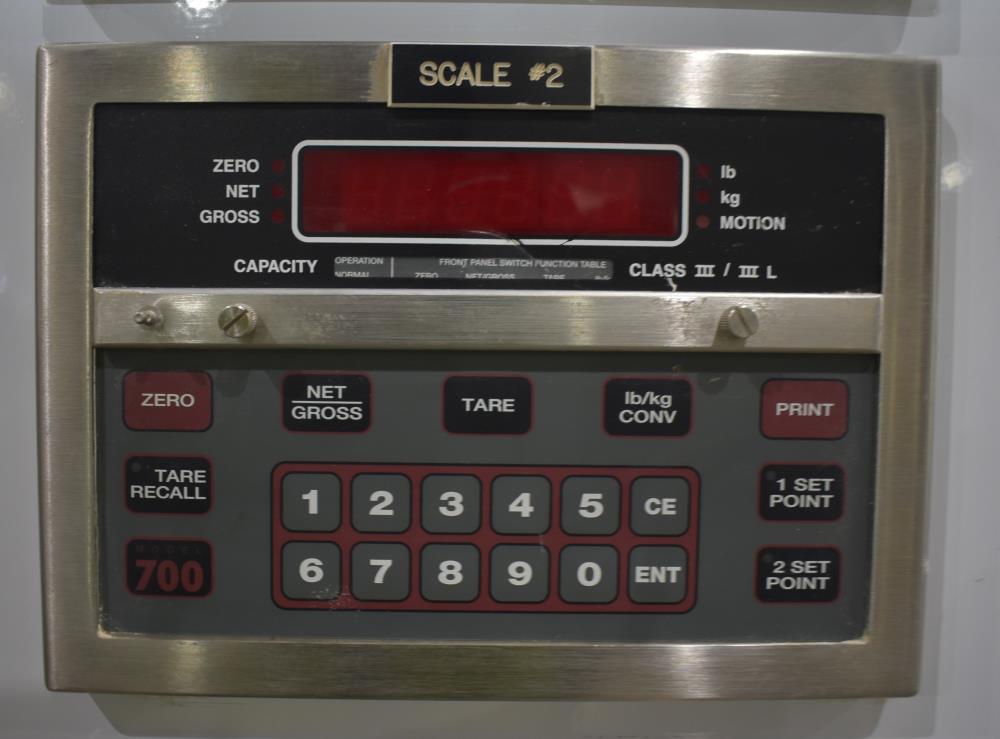

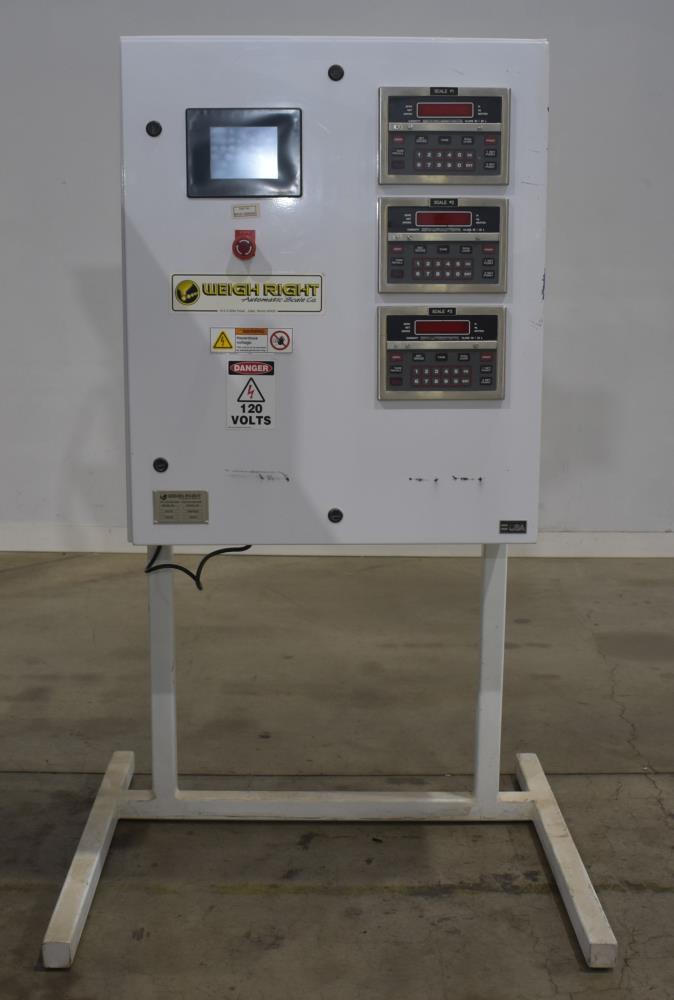

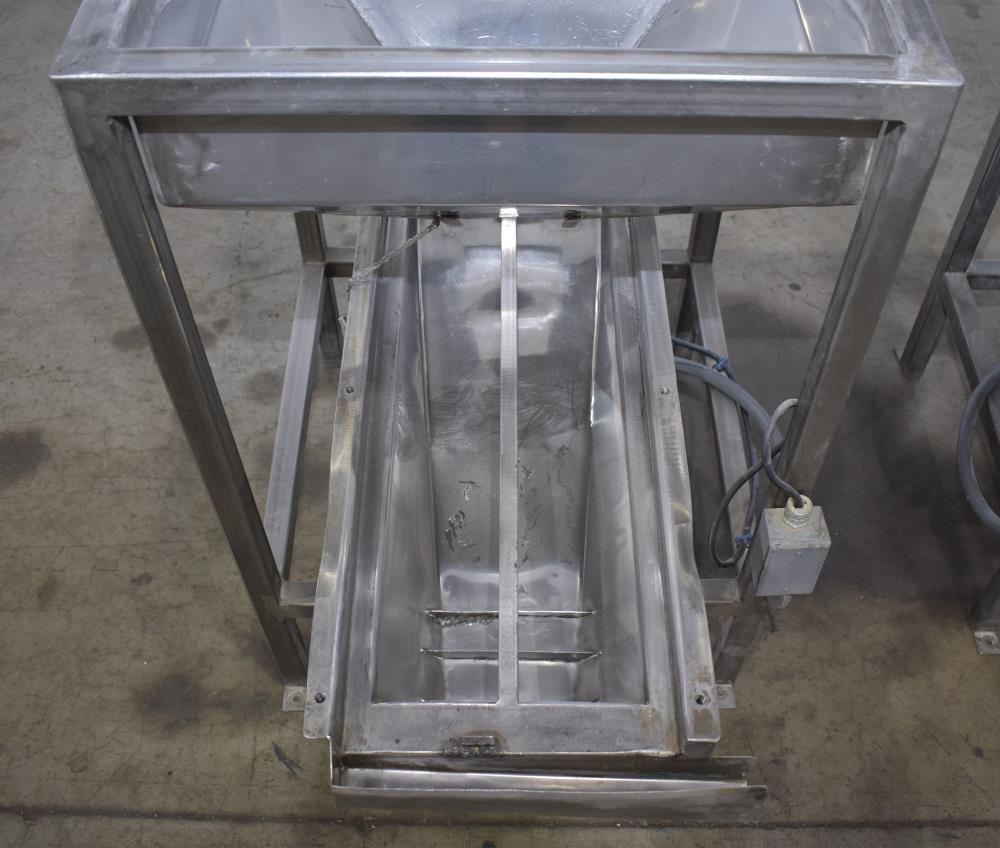

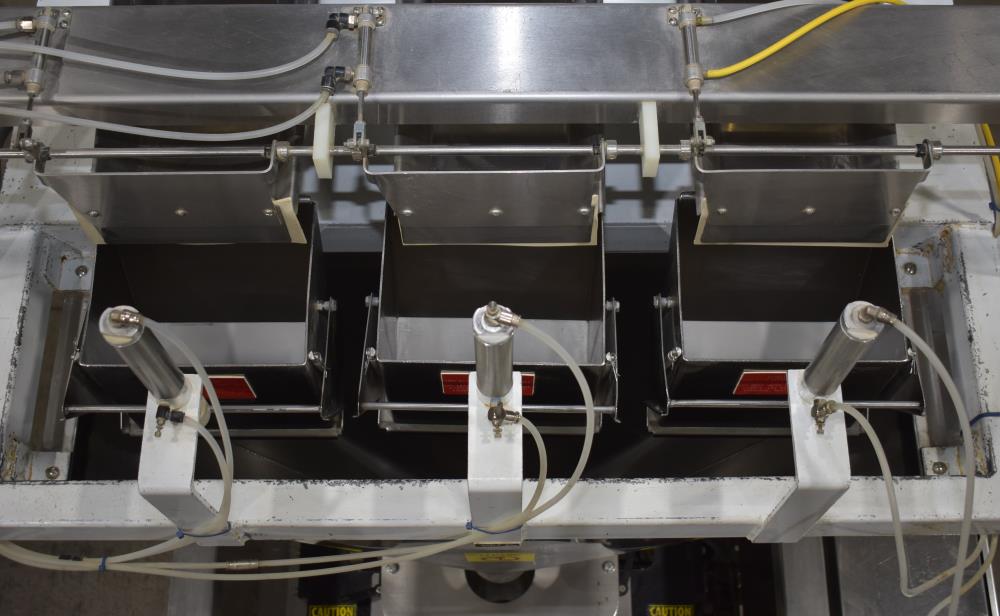

Additionally, this unit comes equipped with a Weigh Right Model PMB403S Three Head linear scale (Serial #20080077), ensuring precise weight measurements for accurate product filling.

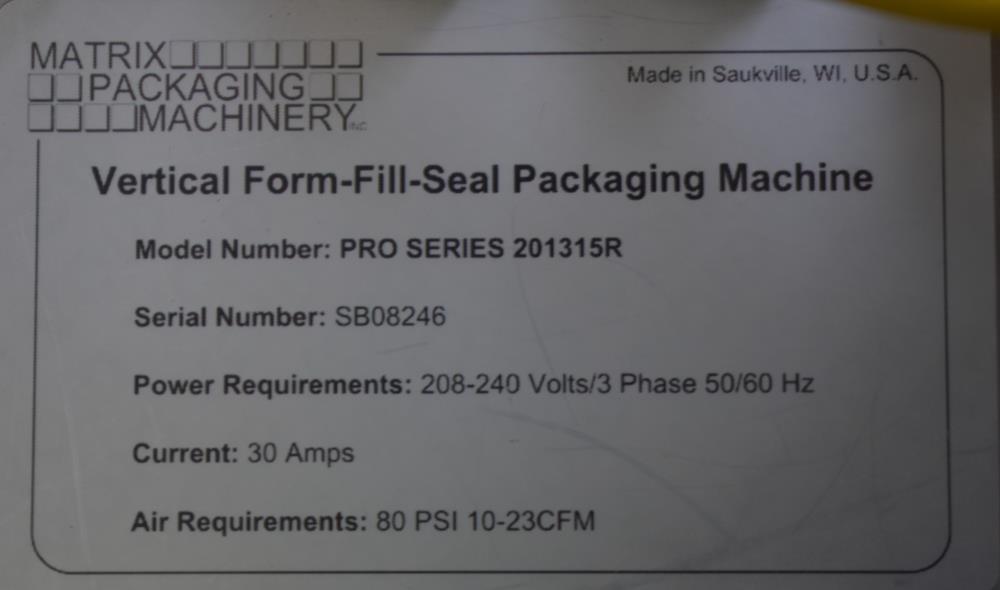

The Matrix 20135R operates on 3-phase power (3/60/208-240V, 30 Amp) and requires 80 psi air pressure at 10-23 CFM for efficient performance.
Specifications
- Manufacturer: Matrix Packaging
- Model: Pro Series 20135R
- Machine Type: Vertical Form Fill Seal (VFFS) Machine
- Speed: Up to 105 BPM (bags per minute) (depending on application)
- Bag Size Range:
- Width: 1.75″ – 13″ (44mm – 330mm)
- Length: 2.5″ – 15″ (60mm – 390mm) (single pull)

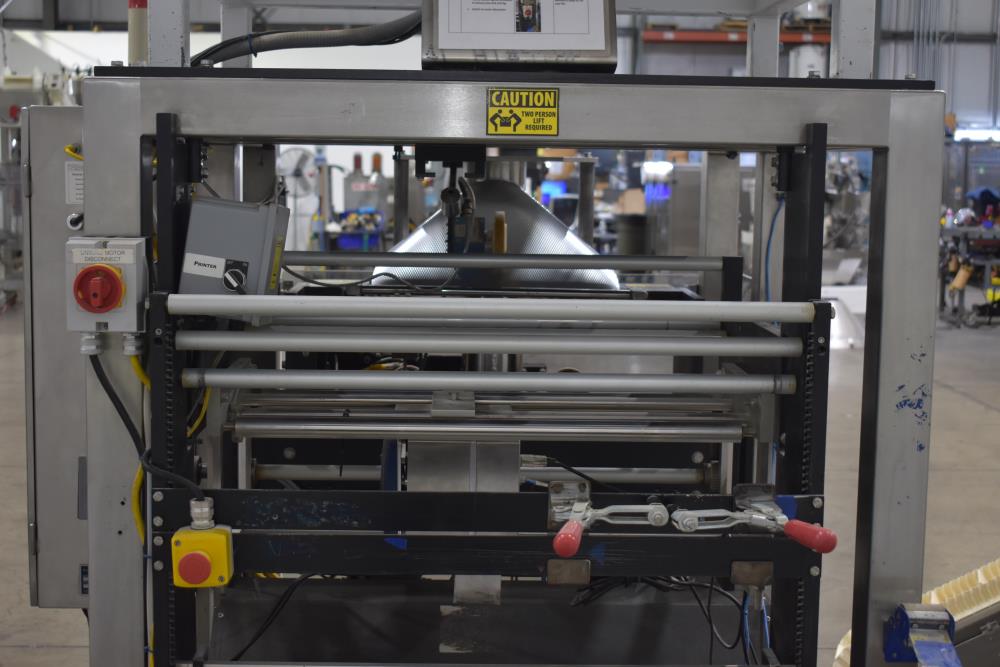

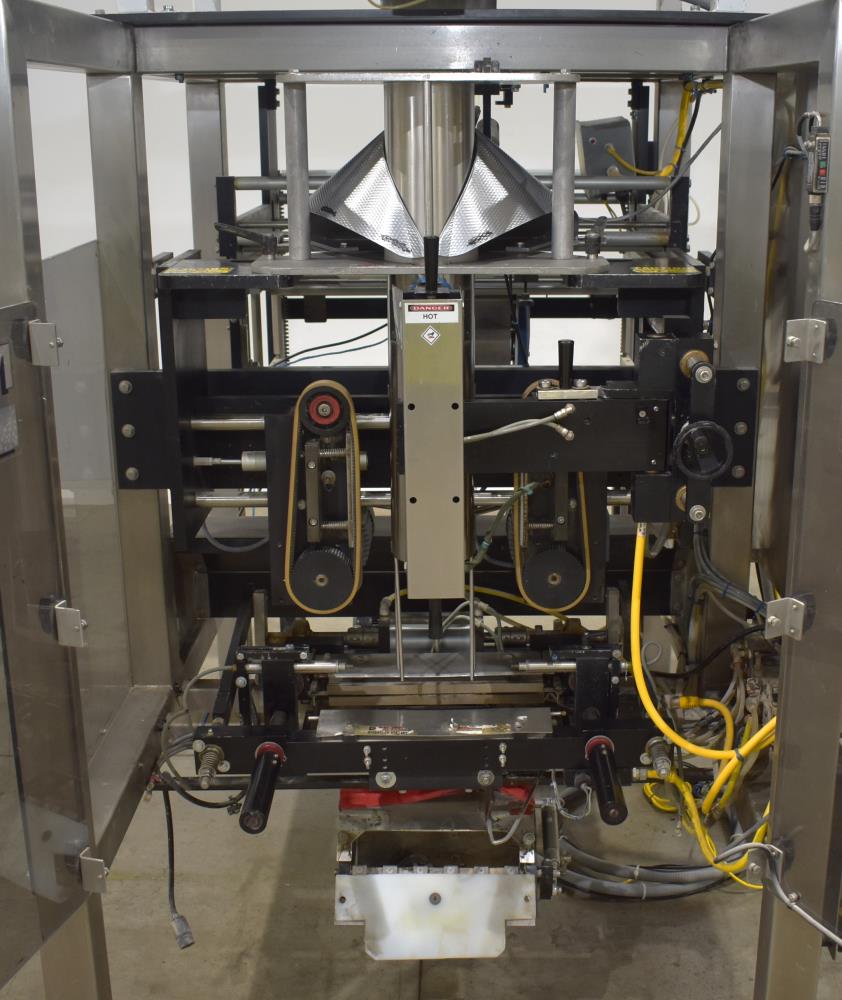

- Film Handling Features:

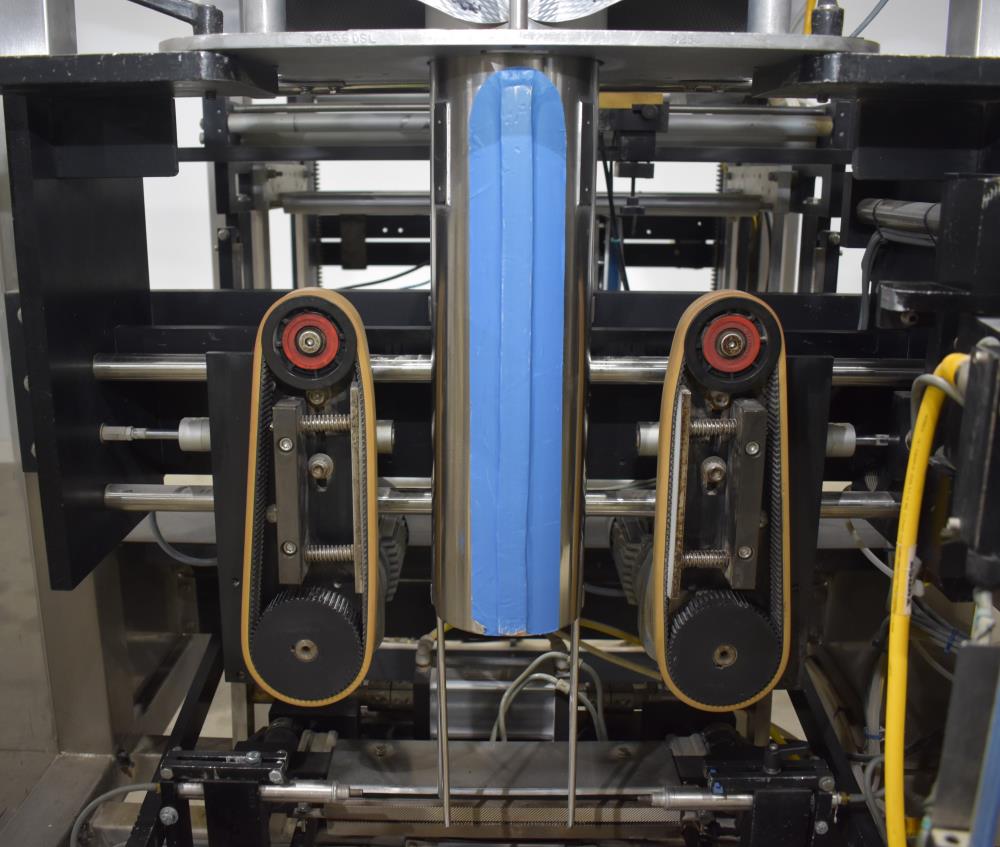

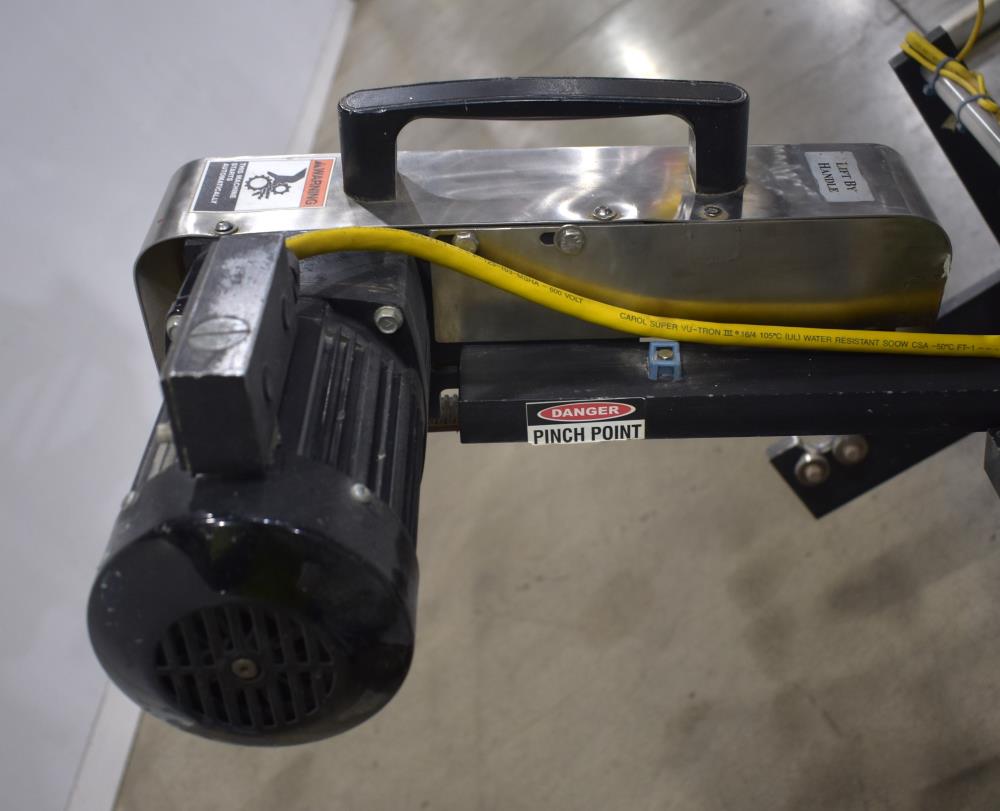

- Side Belt Pull Downs
- Film Registration
- Top and Bottom Gusseting
- Control System:

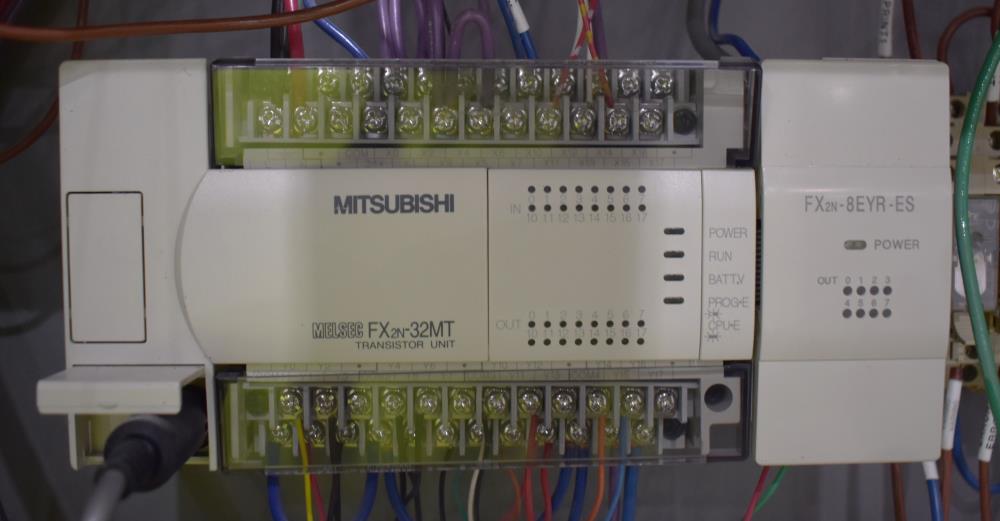

- Mitsubishi MELSEC FX2N-32MT PLC

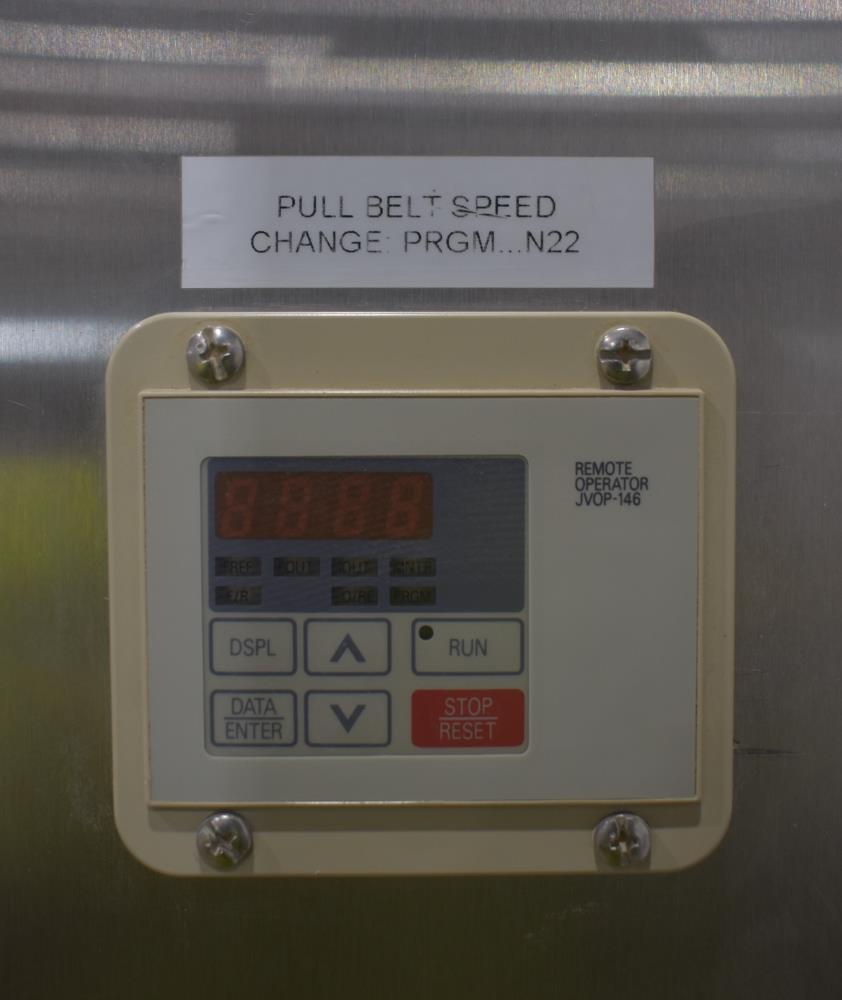

- (2) Omron Sysdrive 3G3JV Inverters

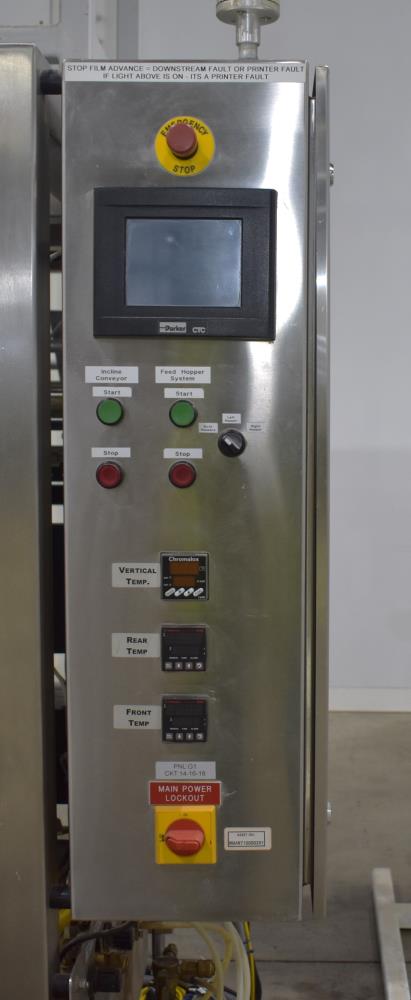

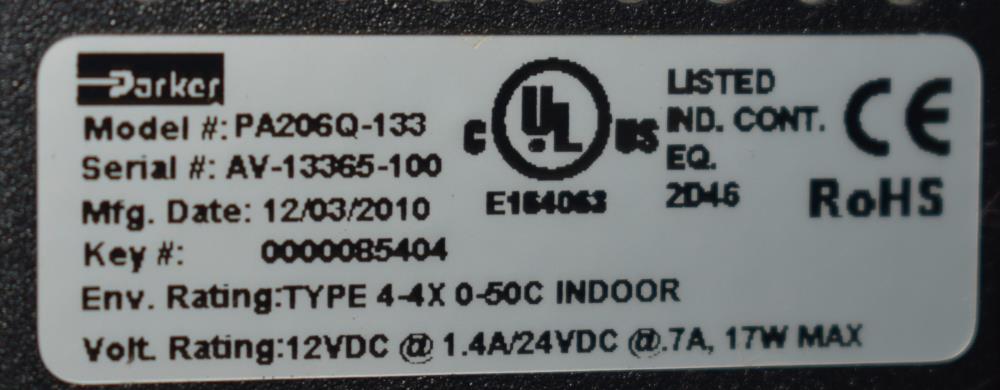

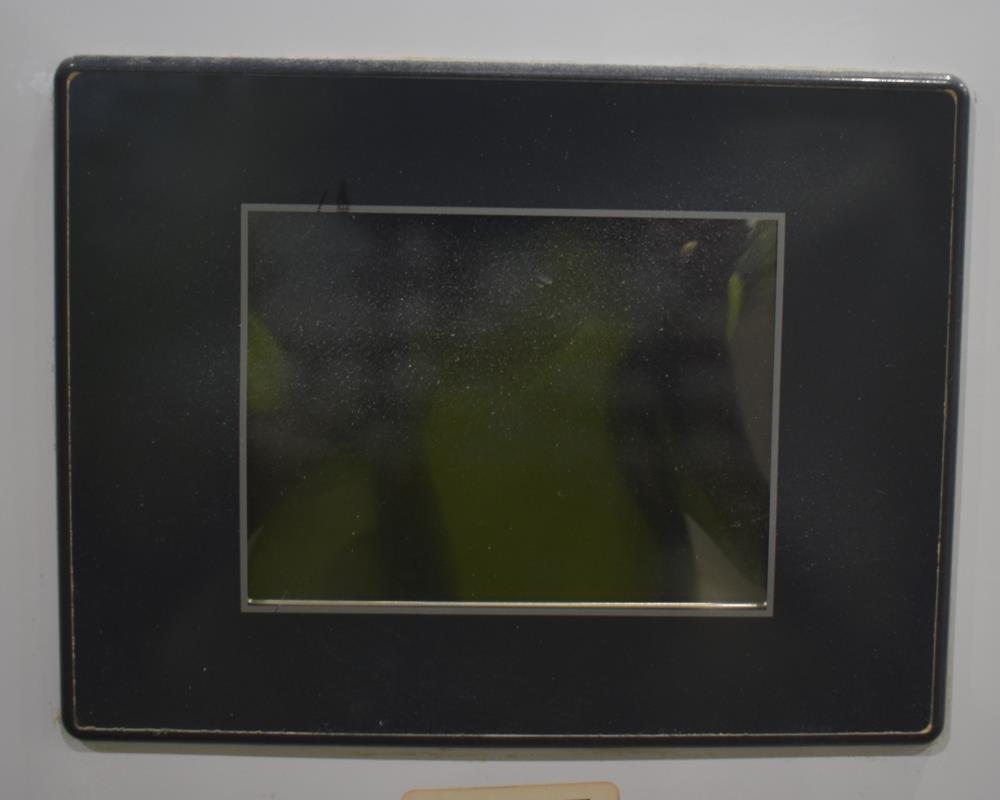

- Parker HMI (Human-Machine Interface)

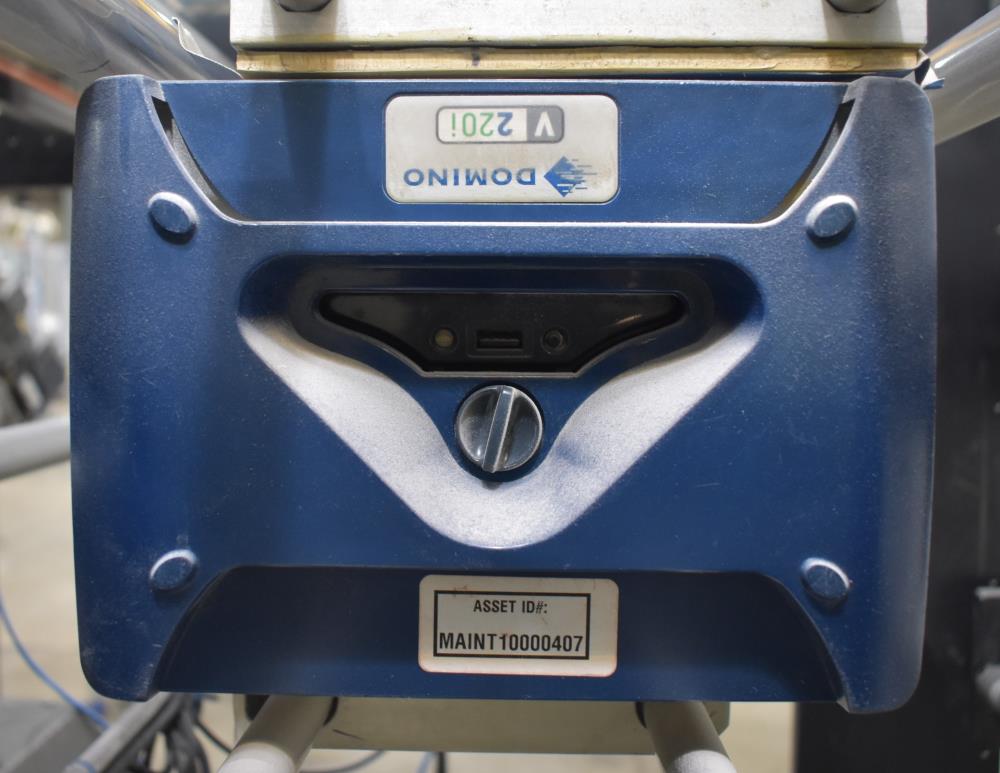

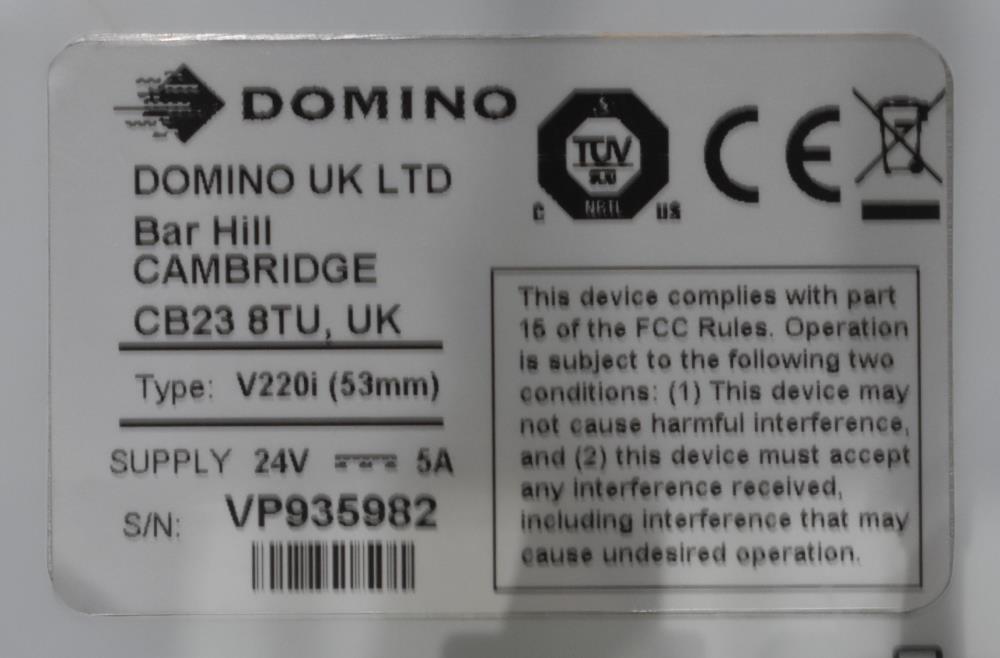

- Batch Coding System: Domino V220i Coder
- Weighing System: Weigh Right Model PMB403S Linear Scale (Serial #20080077)
- Air Requirements: 80 psi, 10-23 CFM
Power Requirements: 3/60/208-240V, 30 Amp
