Professional PDC Shrink Tunnel for Superior Label Quality
This used steam tunnel represents PDC International’s proven engineering for shrink sleeve label applications. Built in 2021, this KST55-914 delivers the uniform, distortion-free shrinking performance that has made PDC the choice for demanding beverage, food, pharmaceutical, and personal care packaging operations.
Steam tunnels provide more uniform heat transfer than hot air systems. This results in superior label registration and shape conformance. The technology is particularly well-suited for full body shrink labels where graphics quality is critical to brand presentation.
PDC manufactures its steam tunnels in the USA using high-quality stainless steel construction. Standard components ensure easy maintenance throughout the tunnel’s long service life.
Used Steam Tunnel Designed for Distortion-Free Results
This single-zone steam tunnel provides precisely focused heat application. This minimizes energy use while optimizing container appearance and reducing the risk of container distortion.

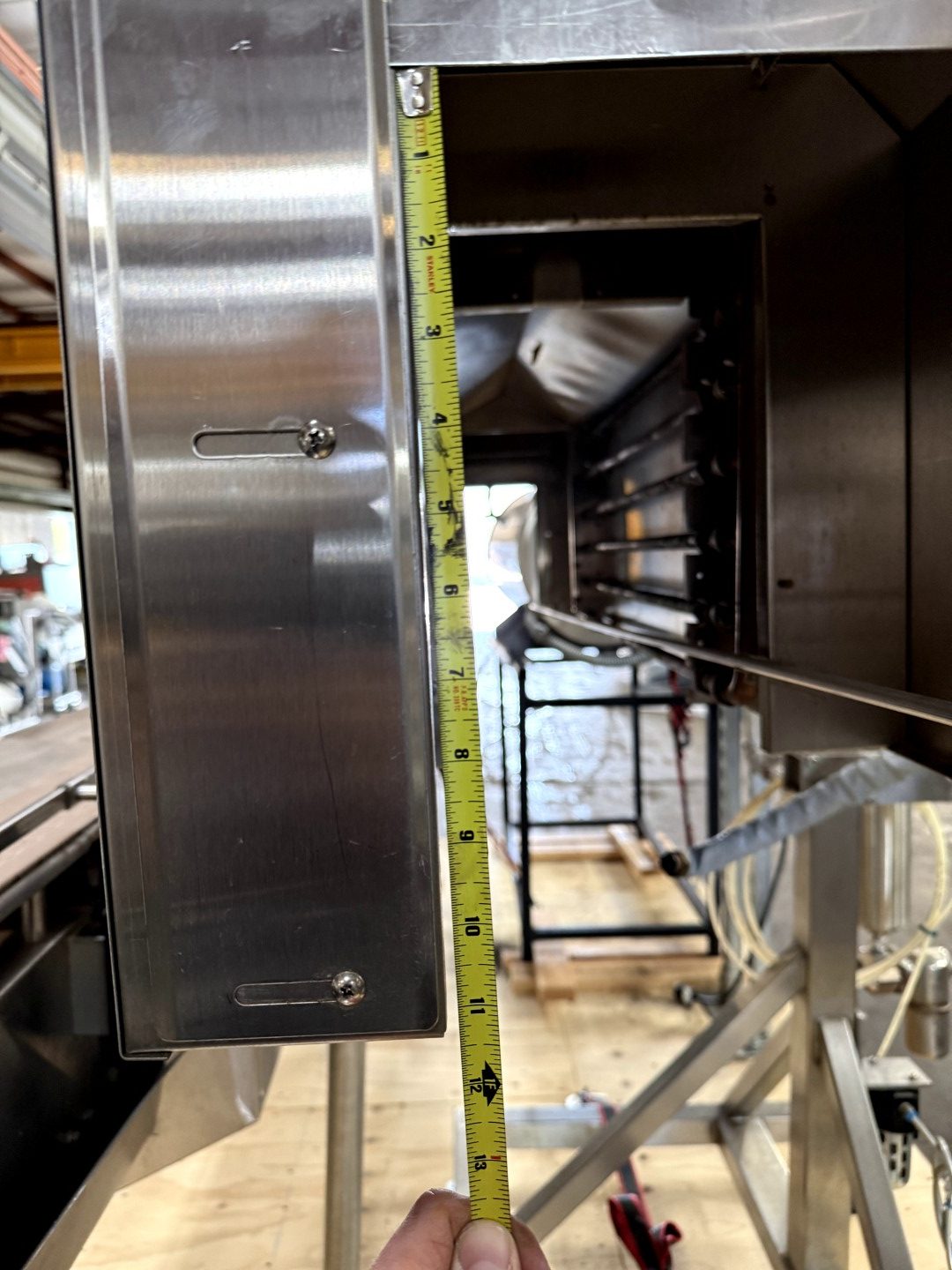

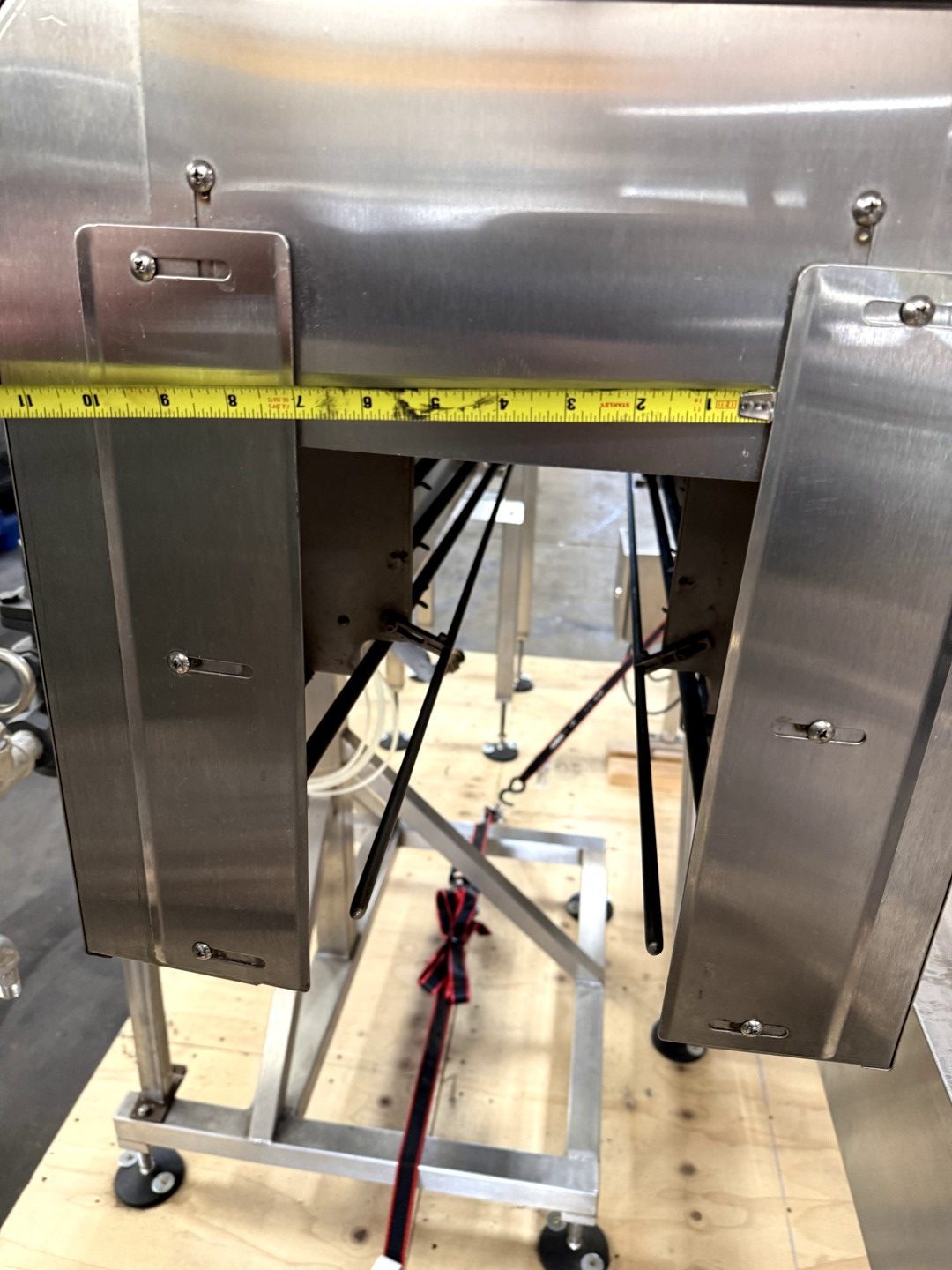

The 9-inch by 11-inch opening accommodates a wide range of container sizes and shapes. The system handles filled or empty containers, round, oval, or square shapes.
Steam operation at lower temperatures (180-200°F) compared to dry heat tunnels (350-500°F) makes this used PDC shrink tunnel ideal for several challenging applications. It works with containers under pressure, products with low flash points, or empty bottles where deformation must be avoided.
Adjustable Manifold System for Maximum Flexibility

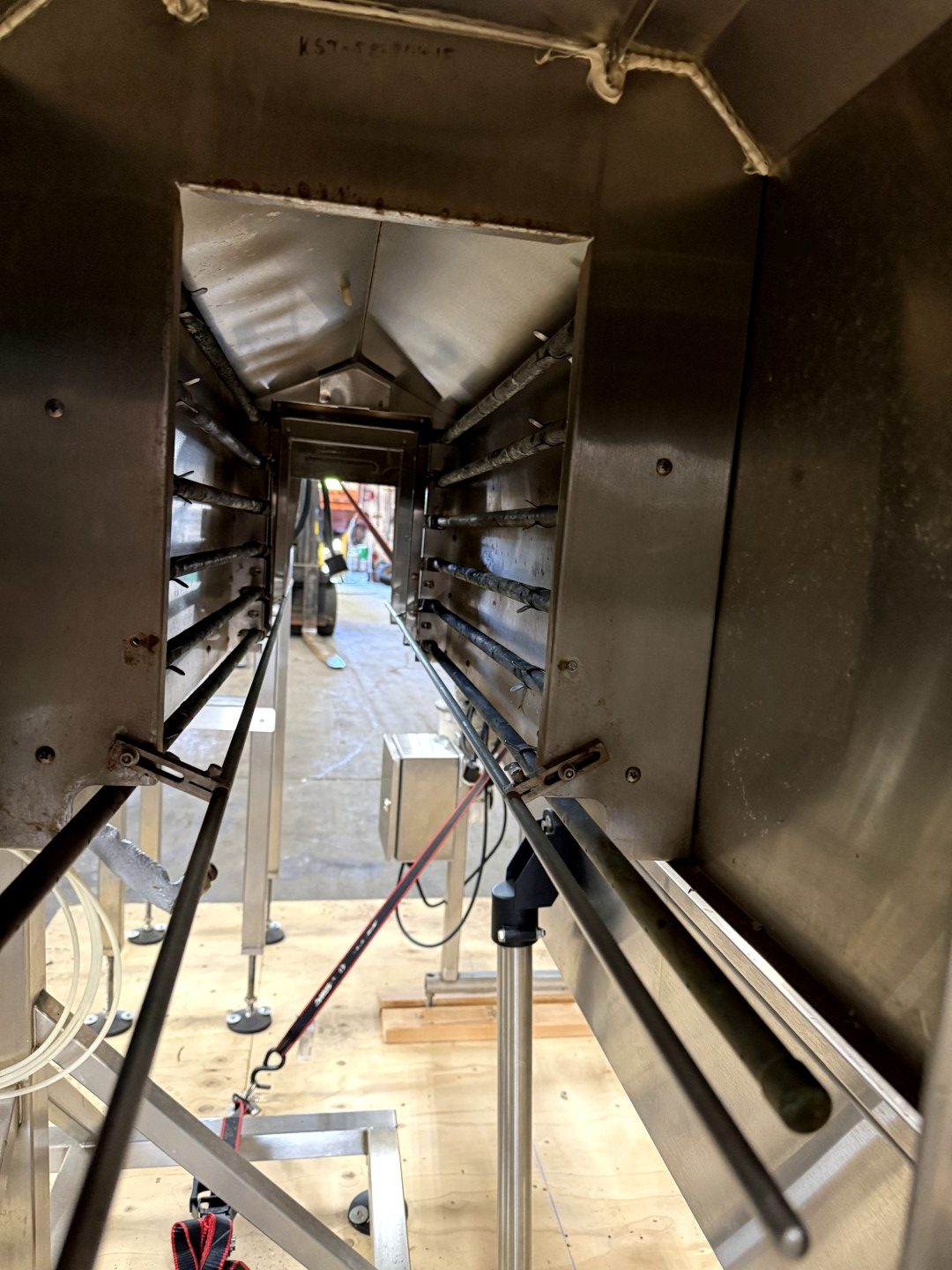

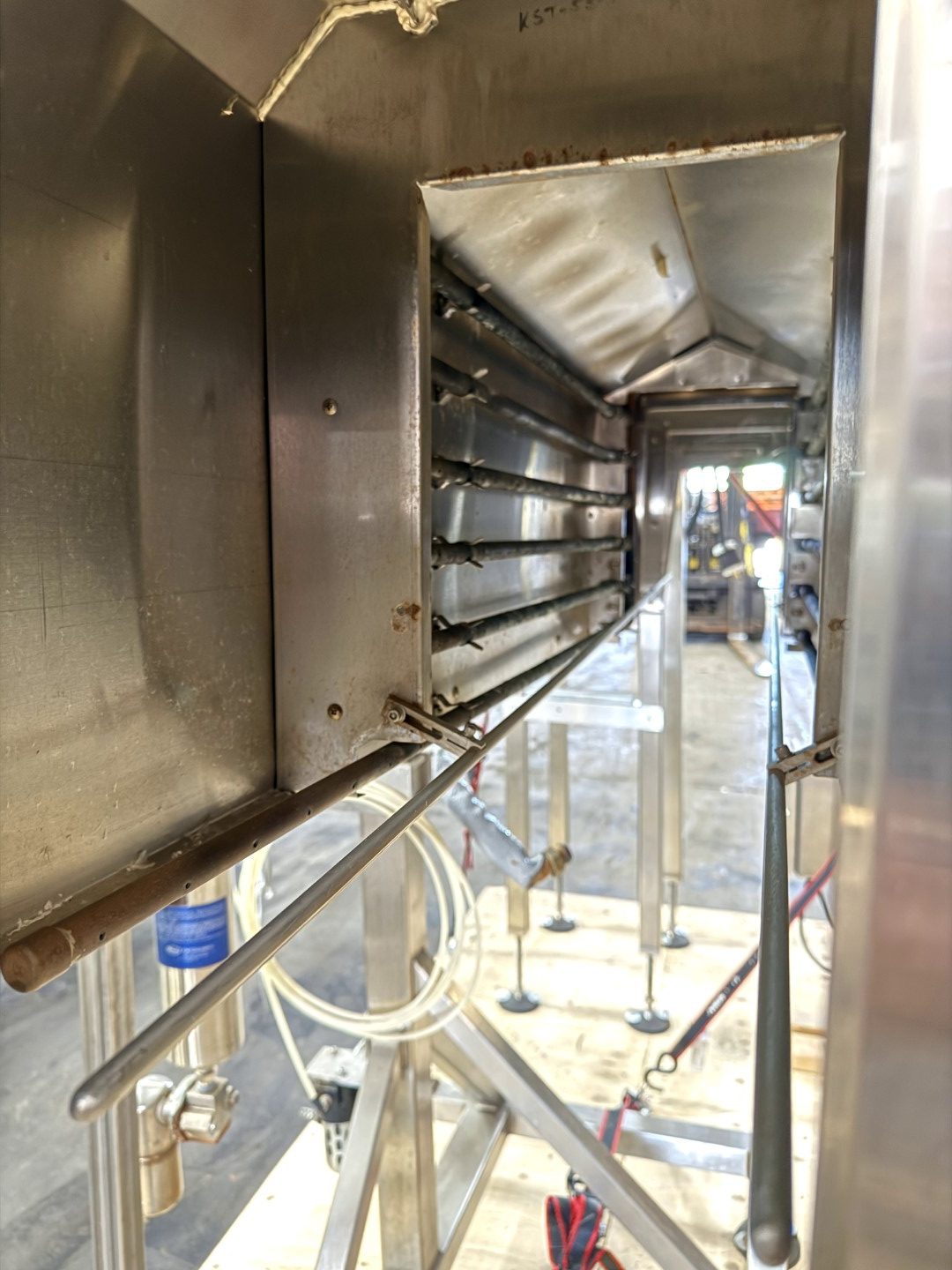

The adjustable manifold system allows operators to move manifolds in and out. This provides maximum container range and processing flexibility. Each manifold can be adjusted to direct steam precisely where needed for optimal shrinking results.

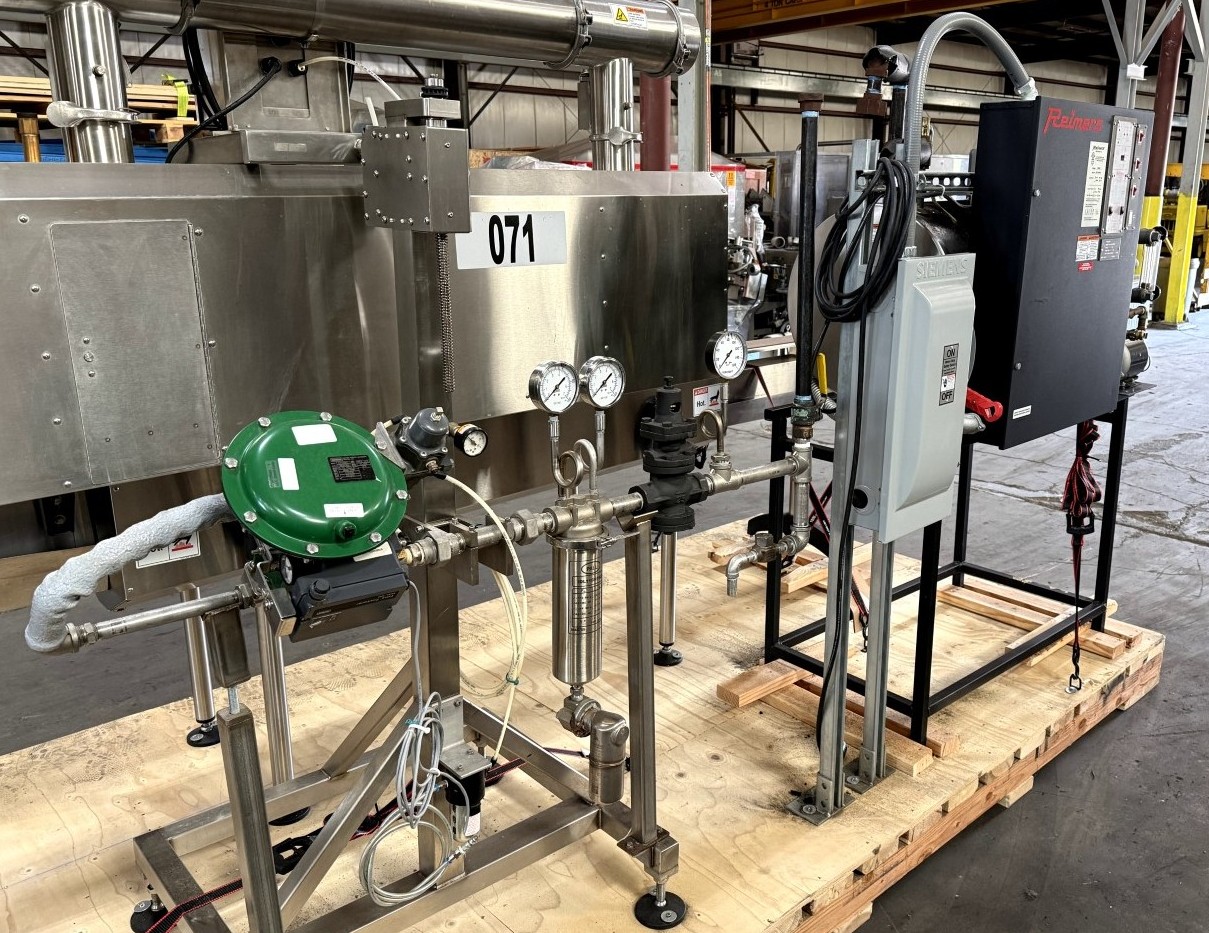

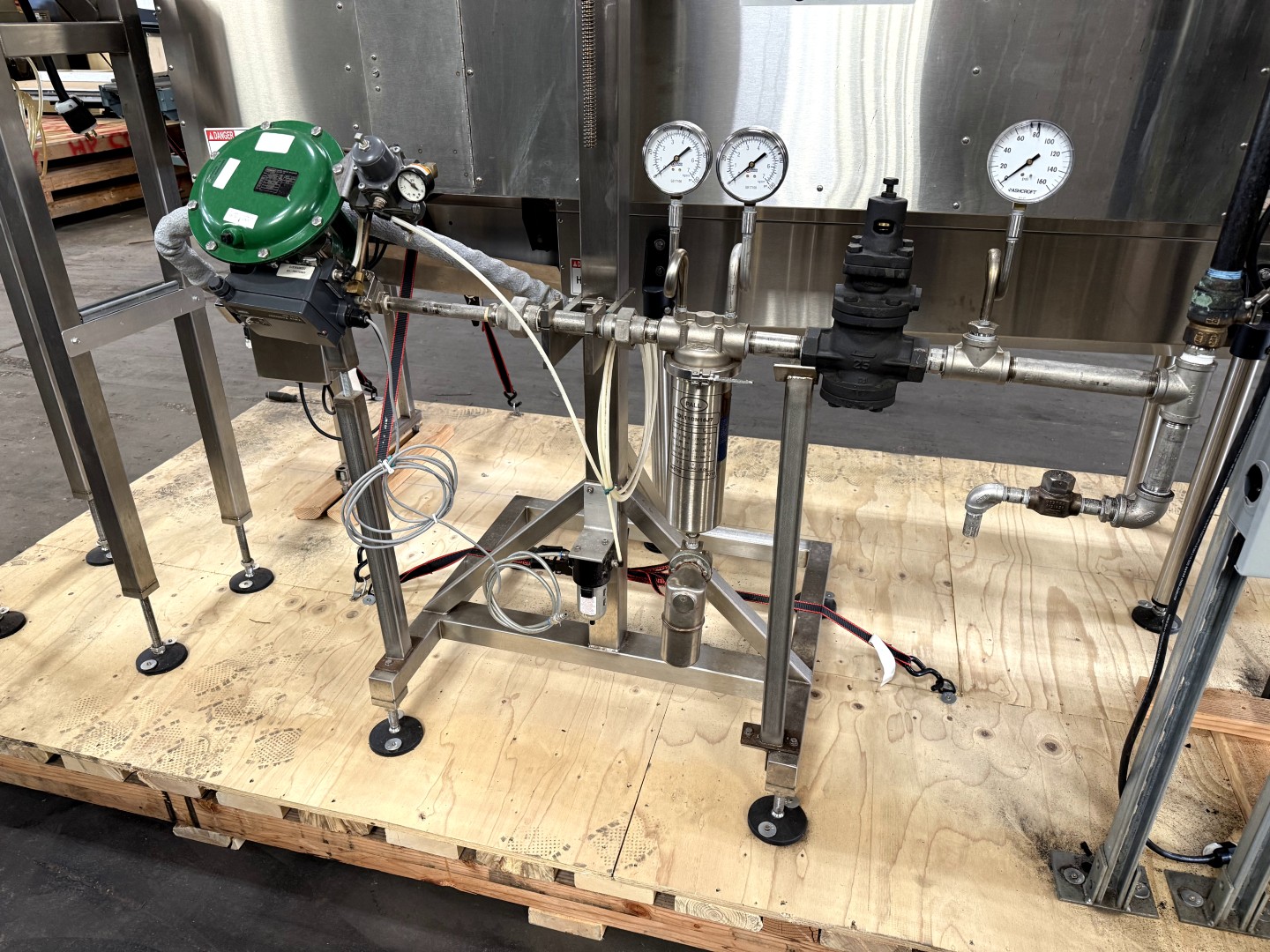

The manually adjustable primary steam regulator offers hands-on control. Two pressure gauges (0-100 psi) provide clear monitoring of steam conditions. A condensate trap ensures efficient steam delivery throughout the tunnel.
Steam regulation includes a standard steam filter and water separator. This maintains steam quality for consistent shrinking performance. The steam exhaust manifold efficiently removes spent steam from the tunnel.
Corrosion-Resistant Ventilation System

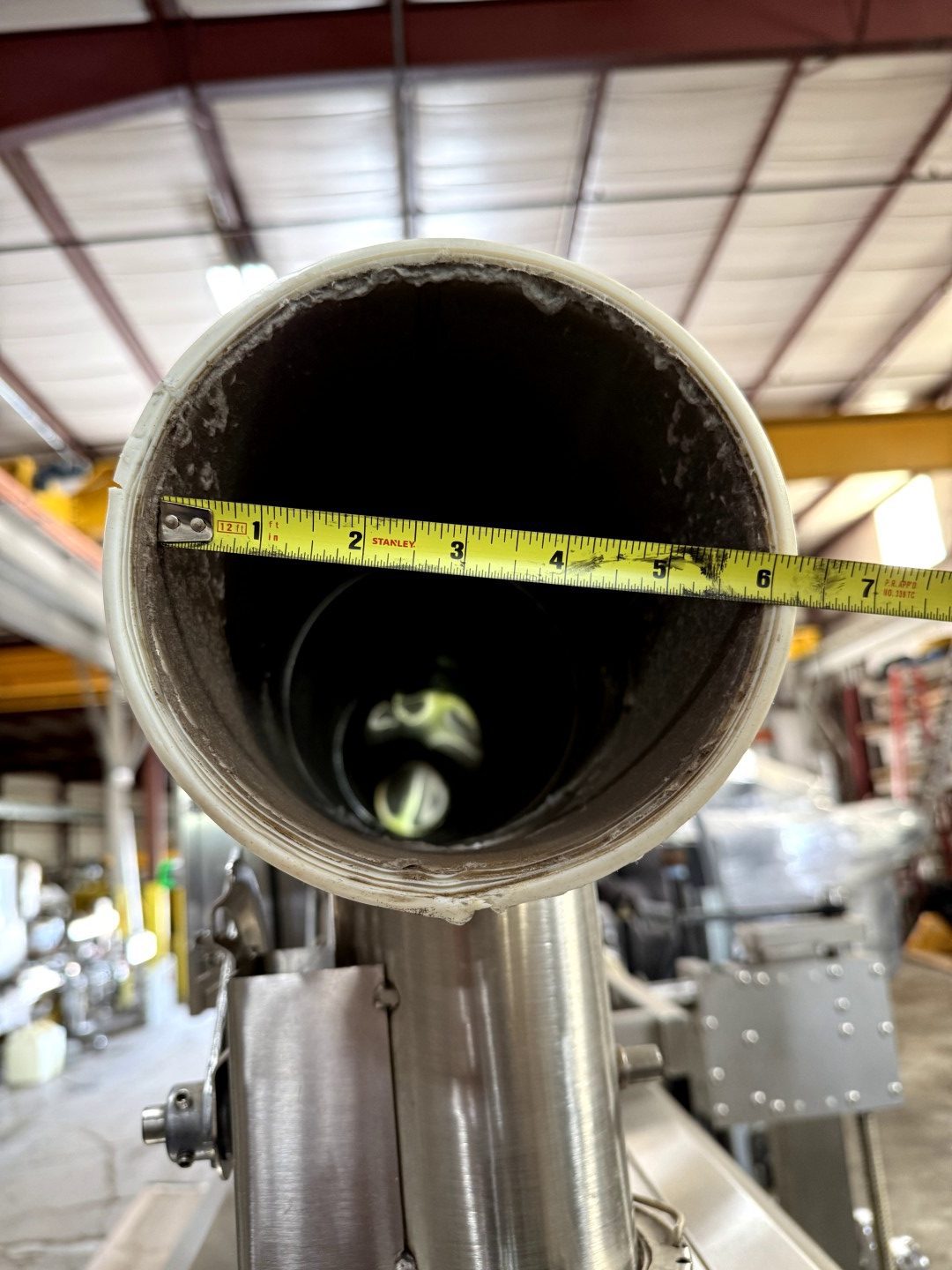

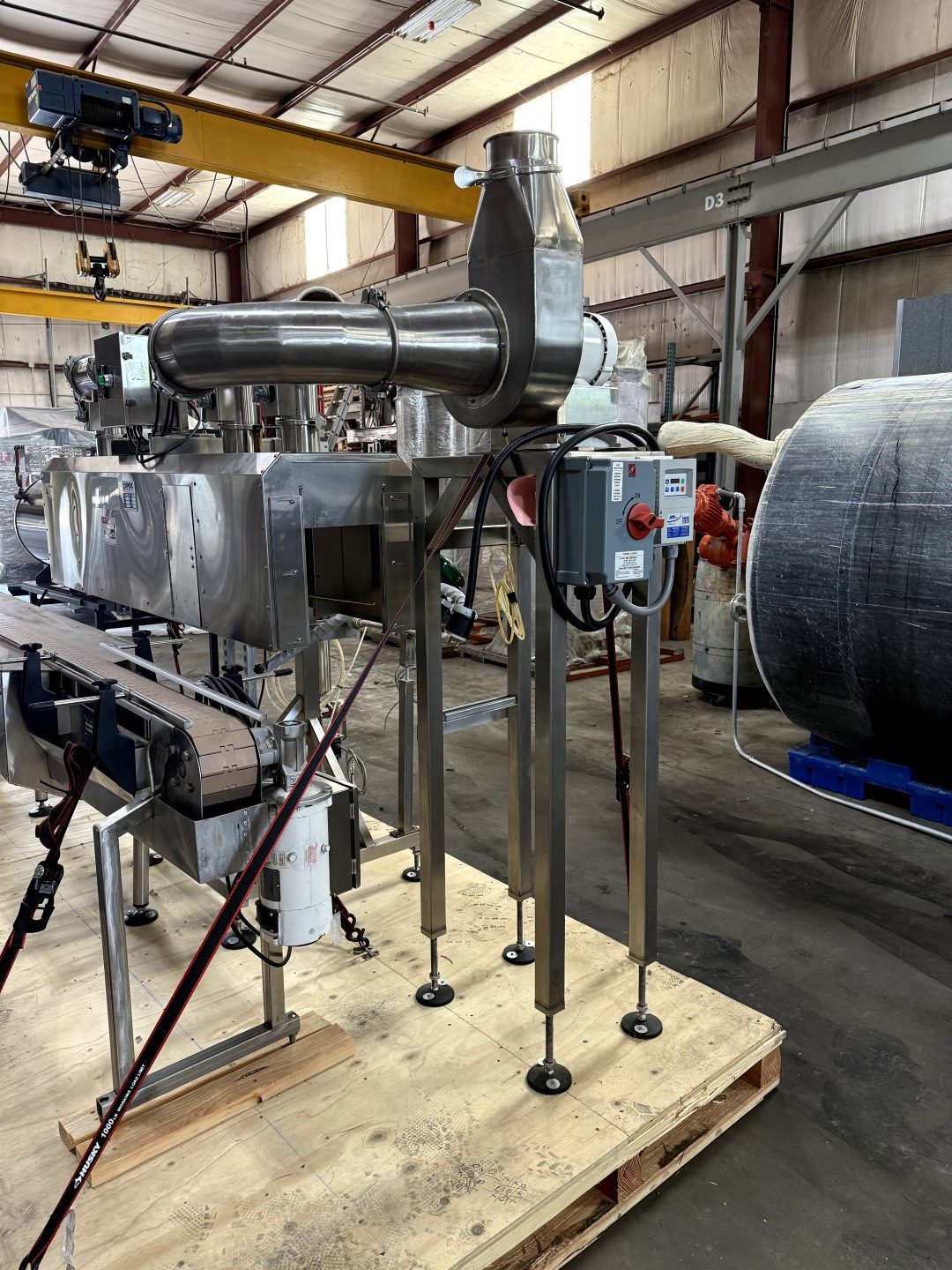

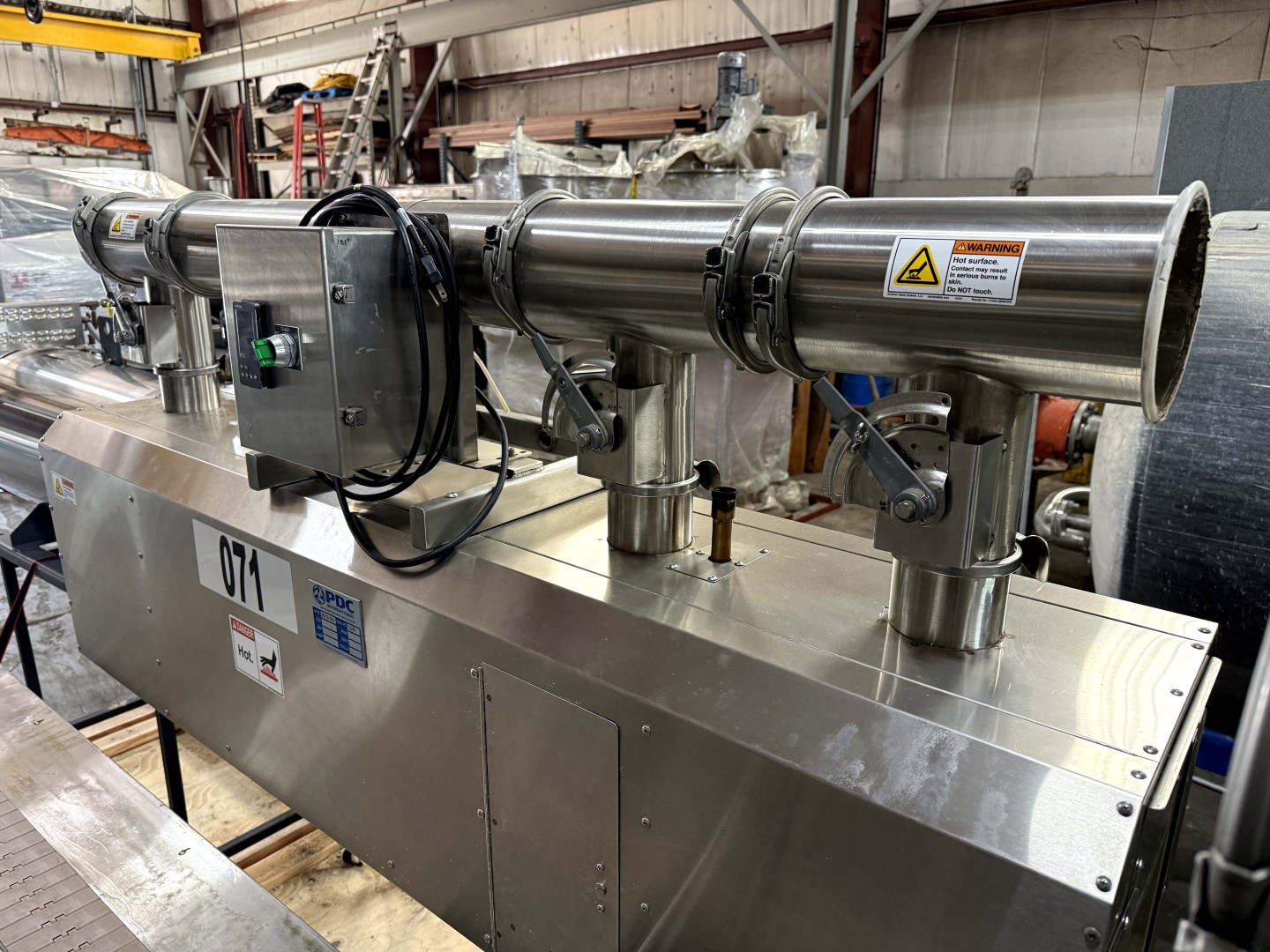

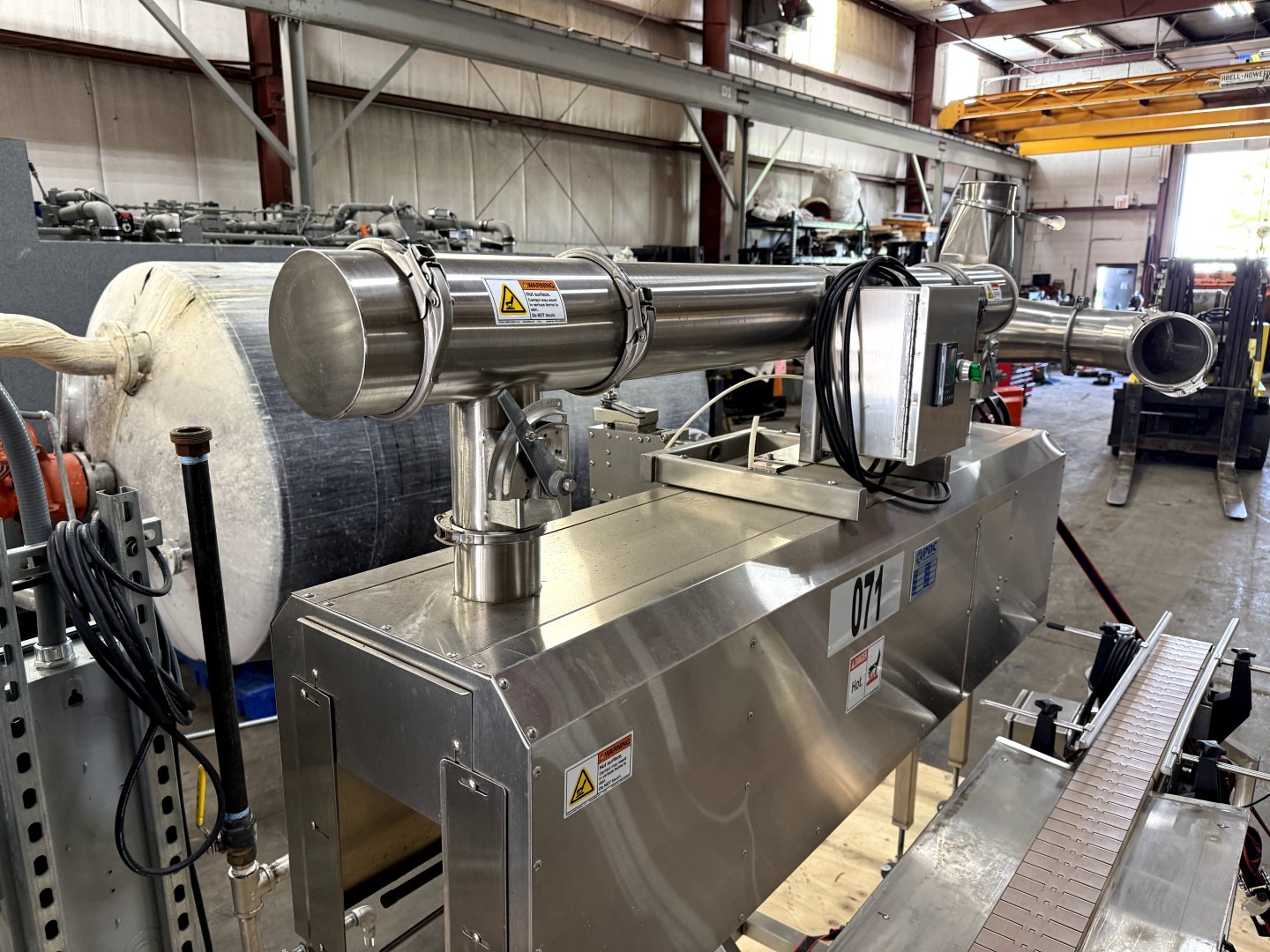

The corrosion-resistant vent manifold is constructed of stainless steel for long-term durability. Three stainless steel vent stacks provide efficient steam evacuation. Two 6-inch diameter vent ports accommodate facility exhaust requirements.

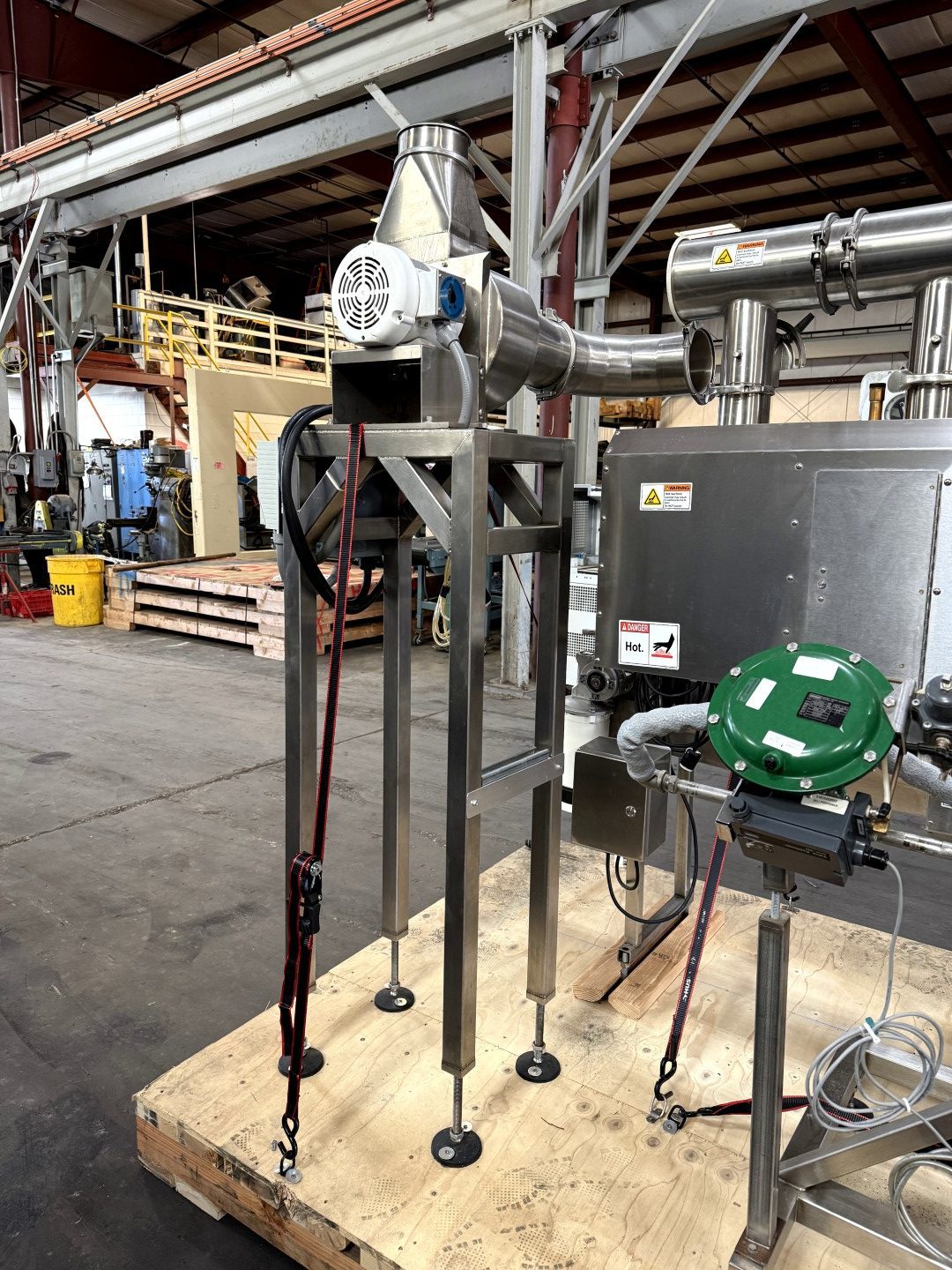

Three adjustable dampers control vent flow for precise tunnel atmosphere management. A blower with 1/2HP motor ensures positive air movement and proper tunnel ventilation during operation.

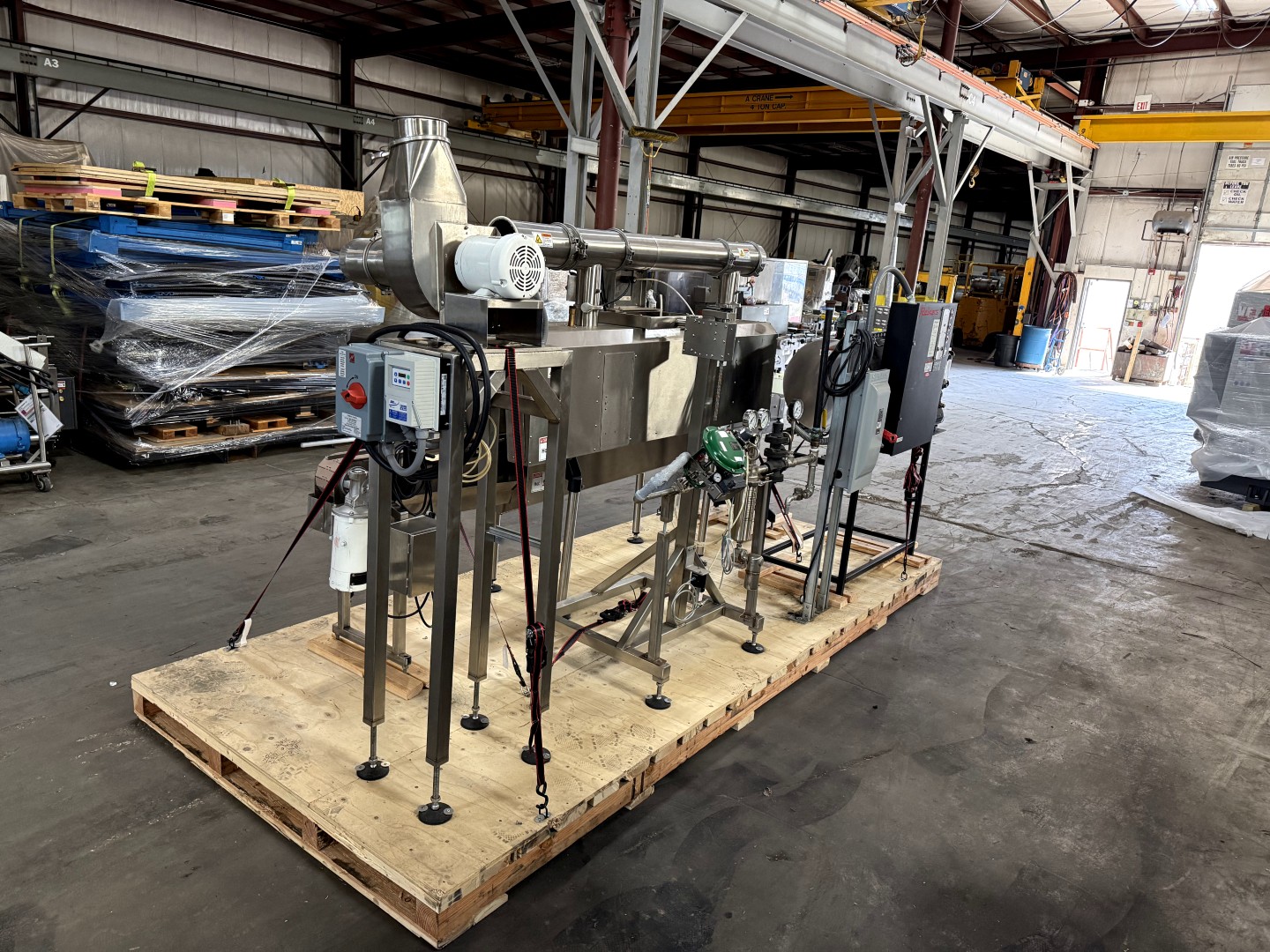

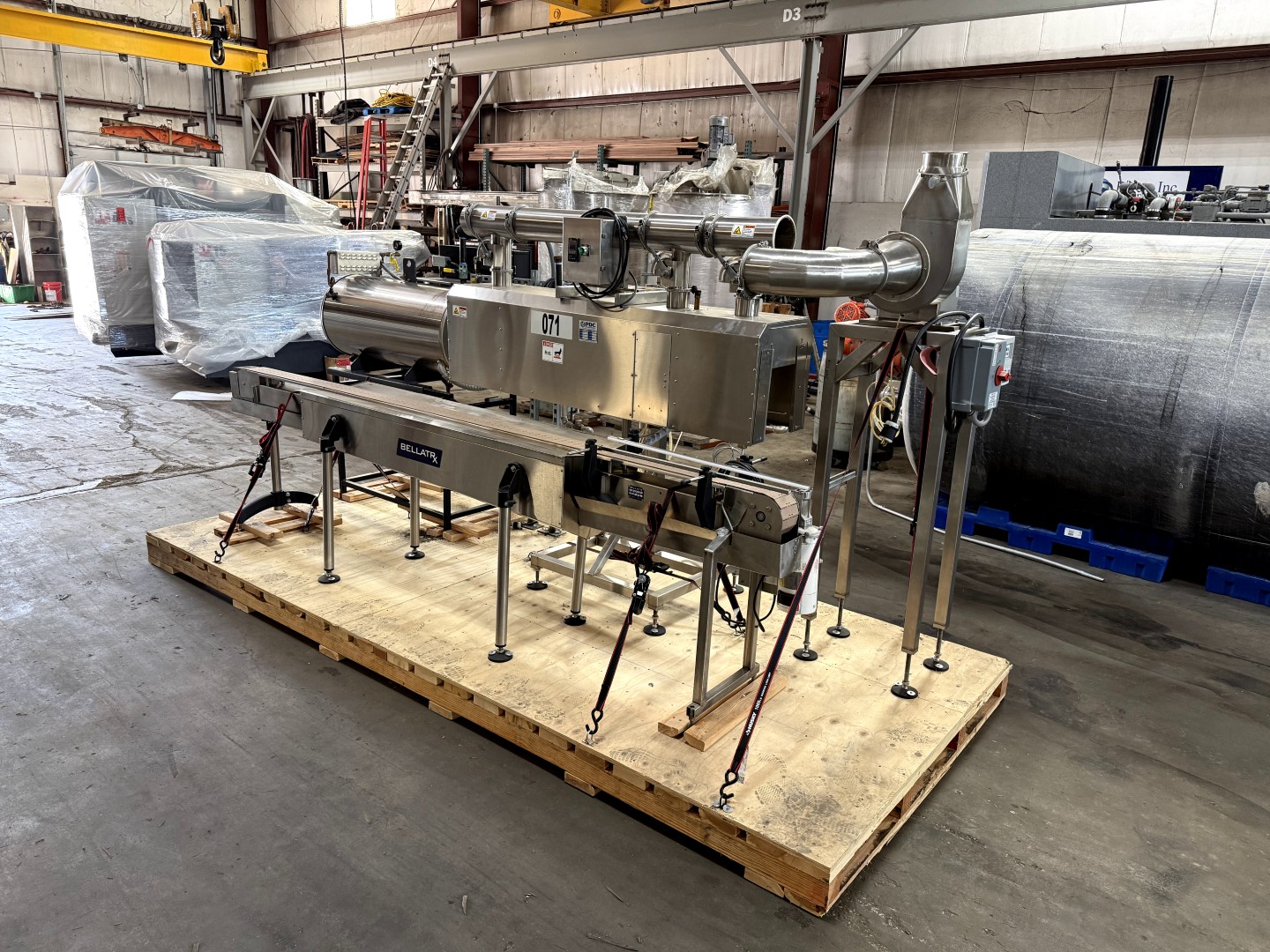

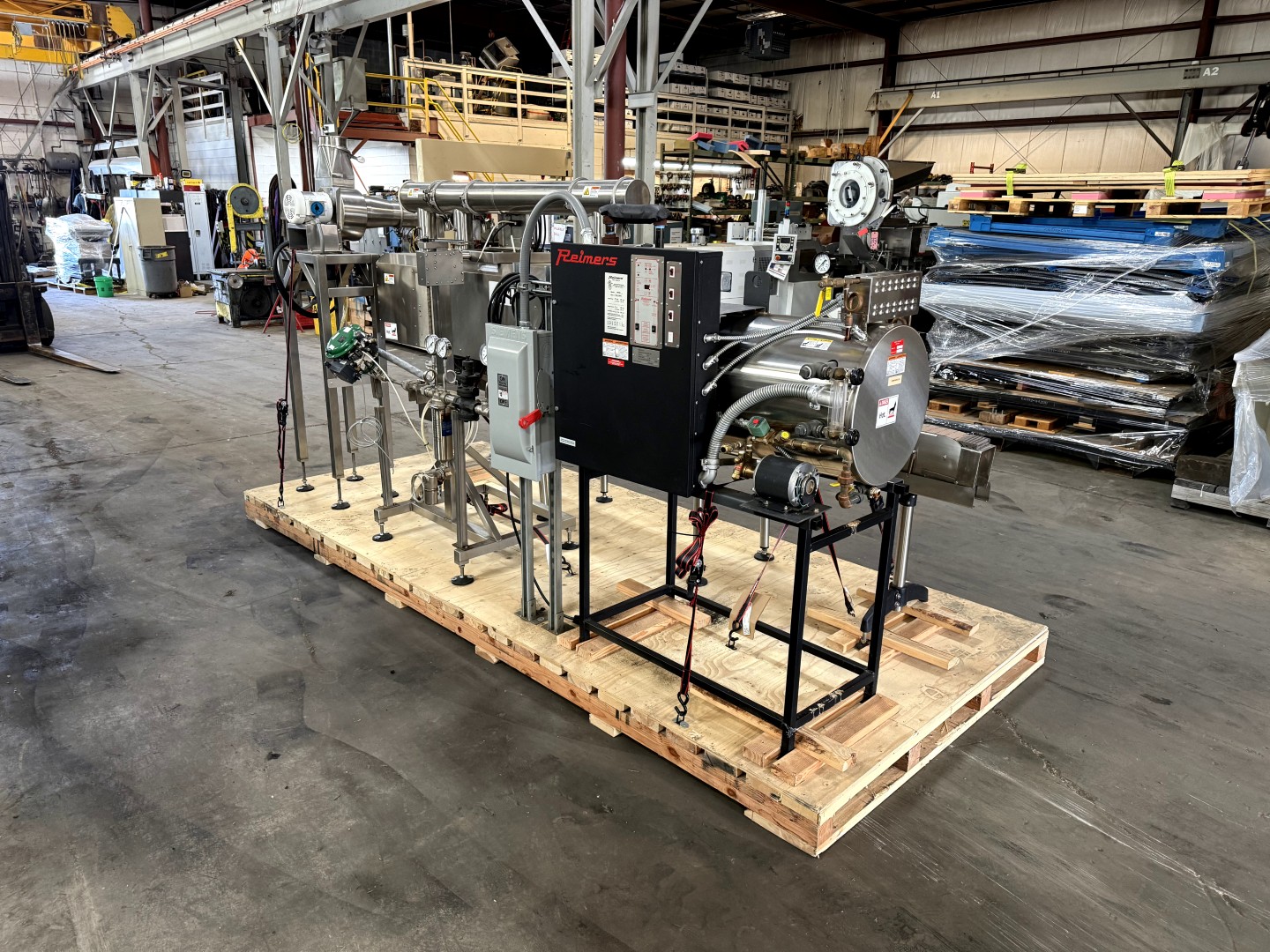

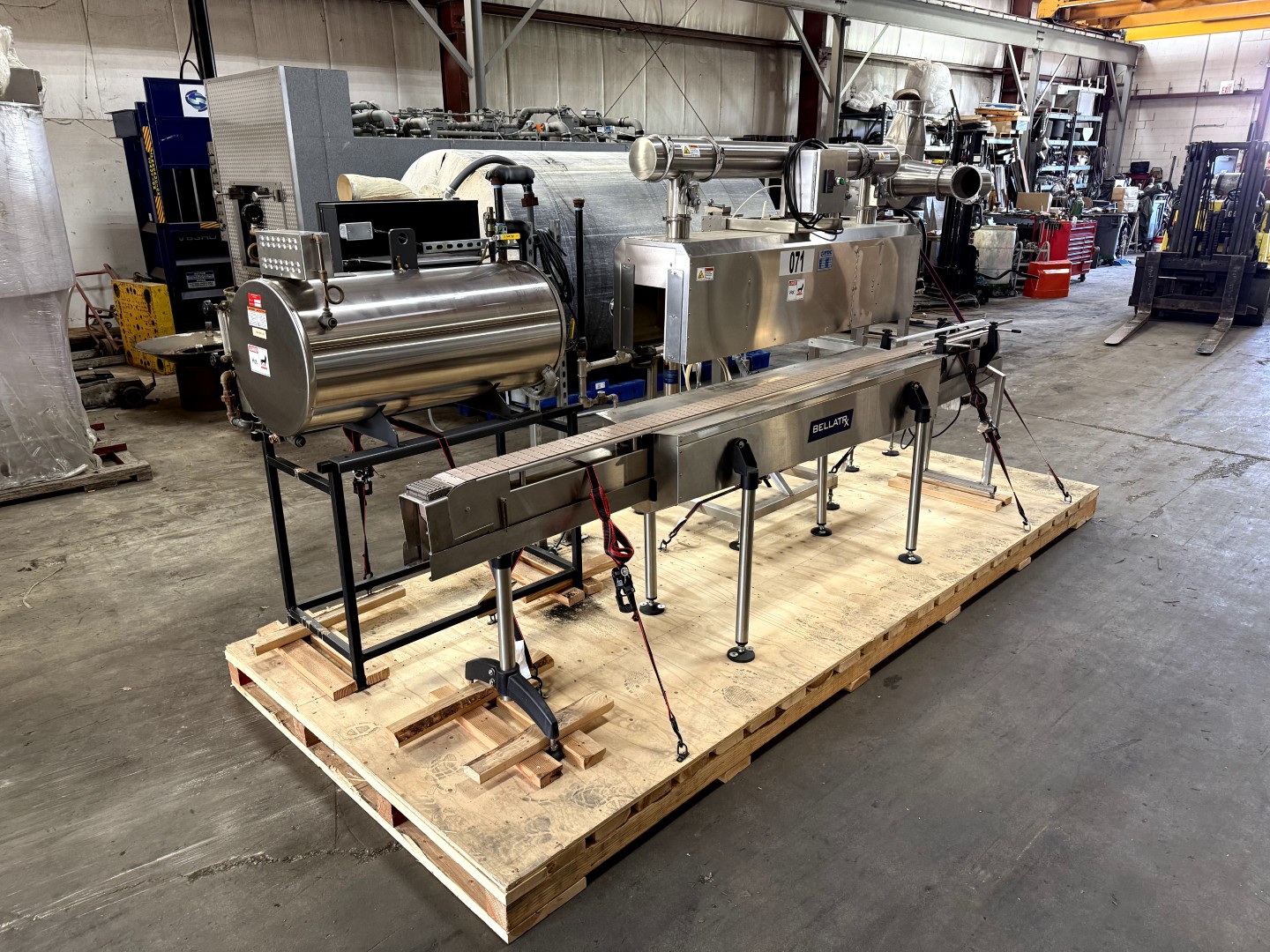

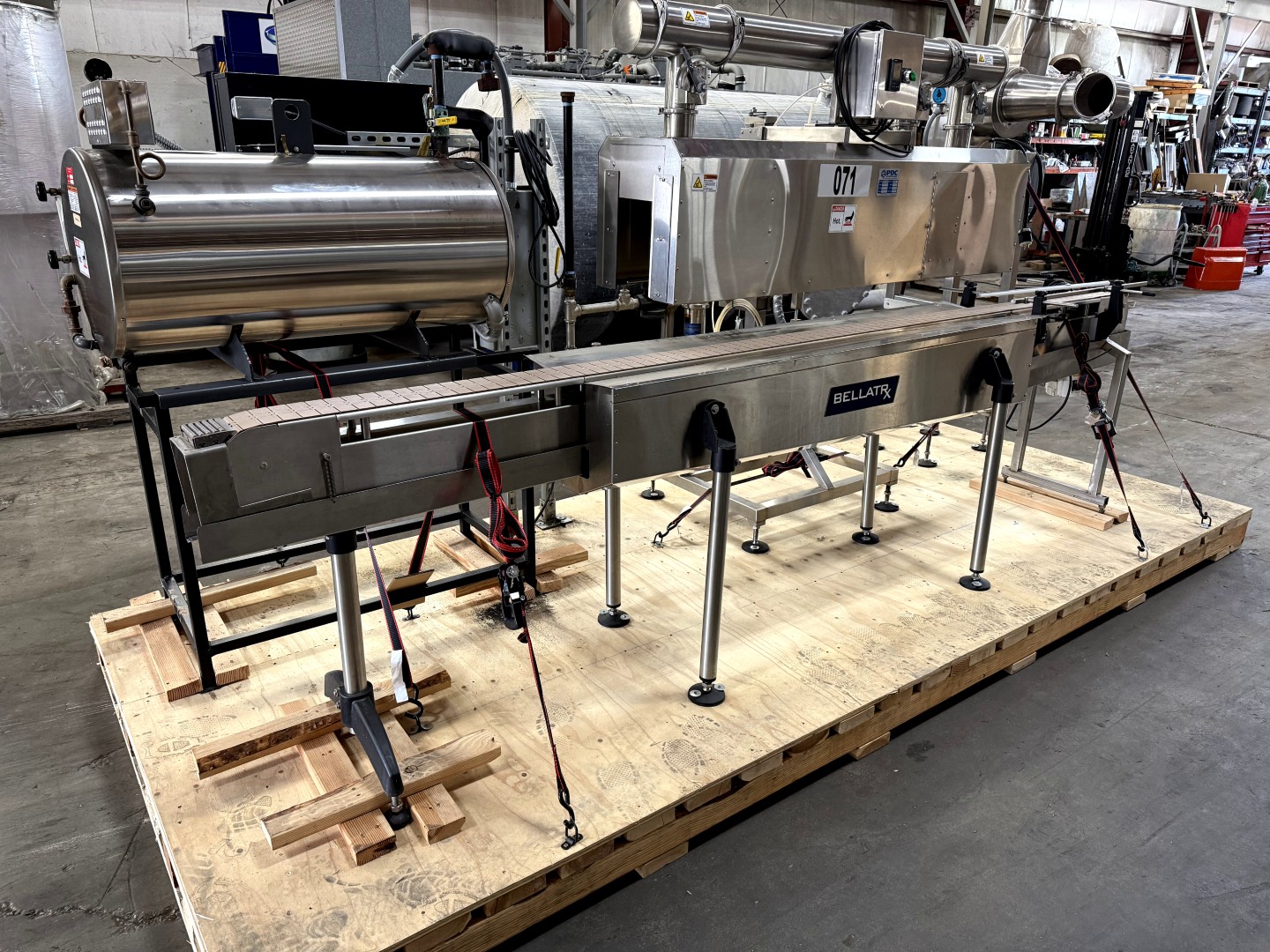

Complete System with Integrated Conveyor and Boiler

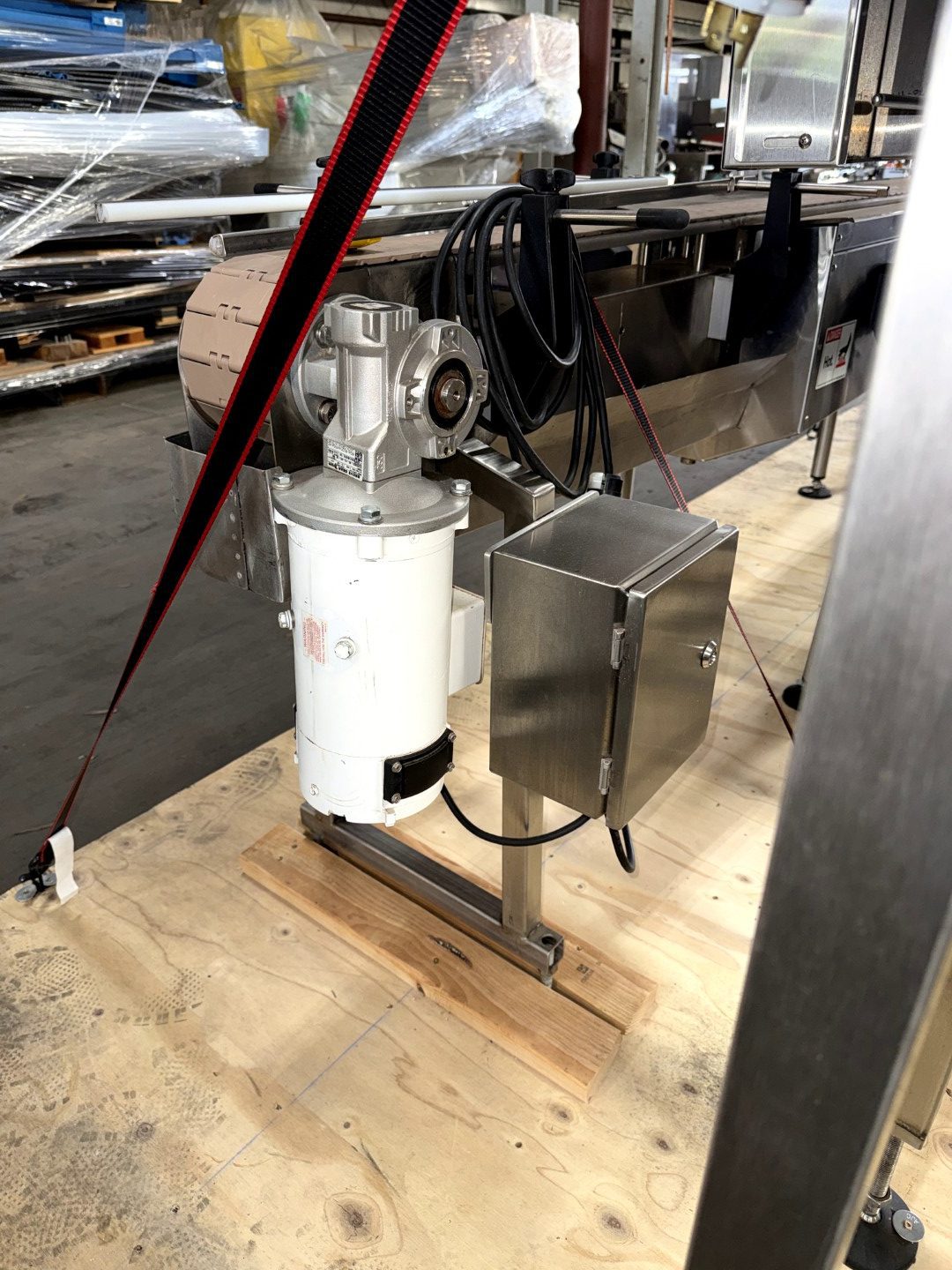

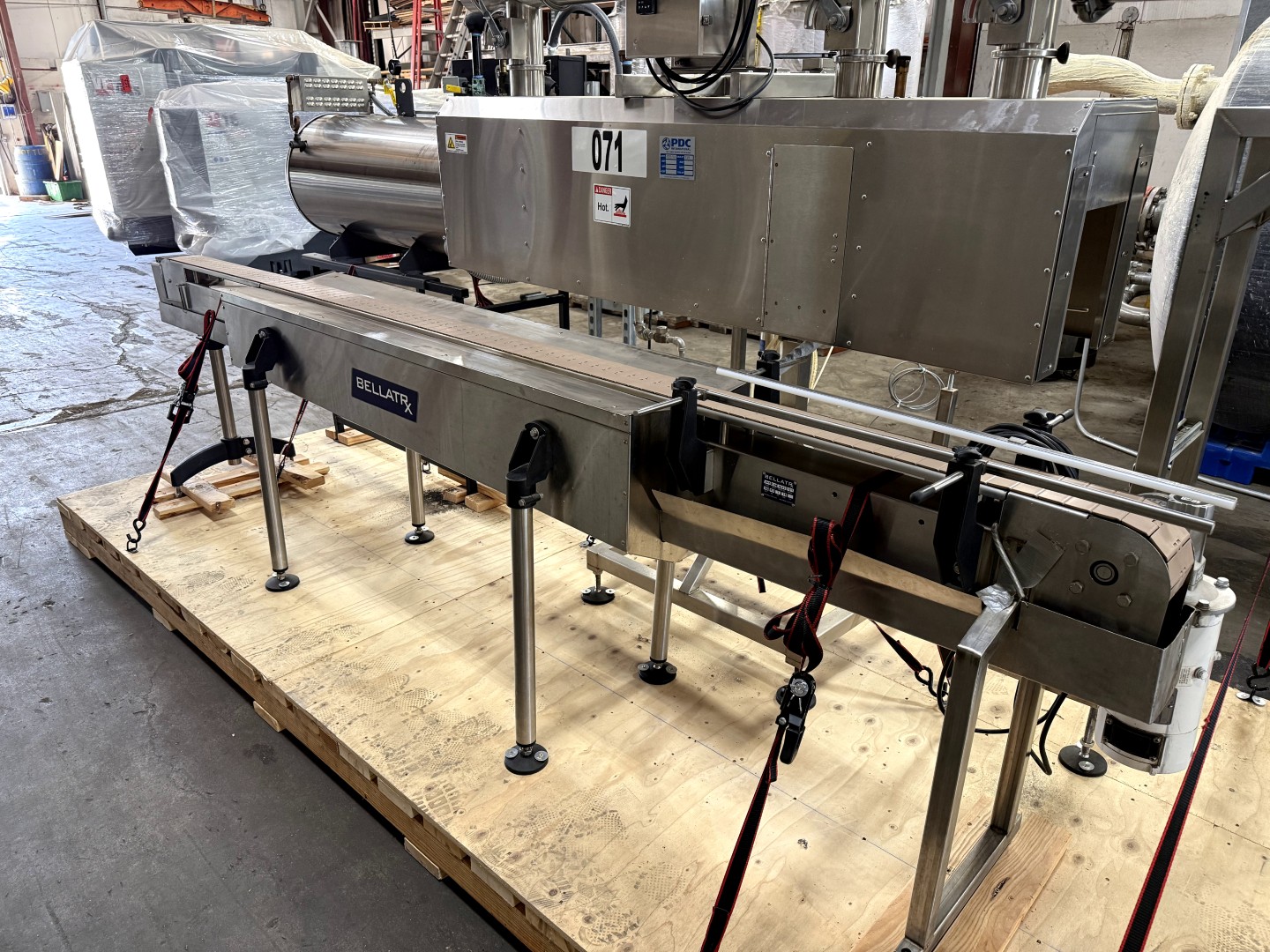

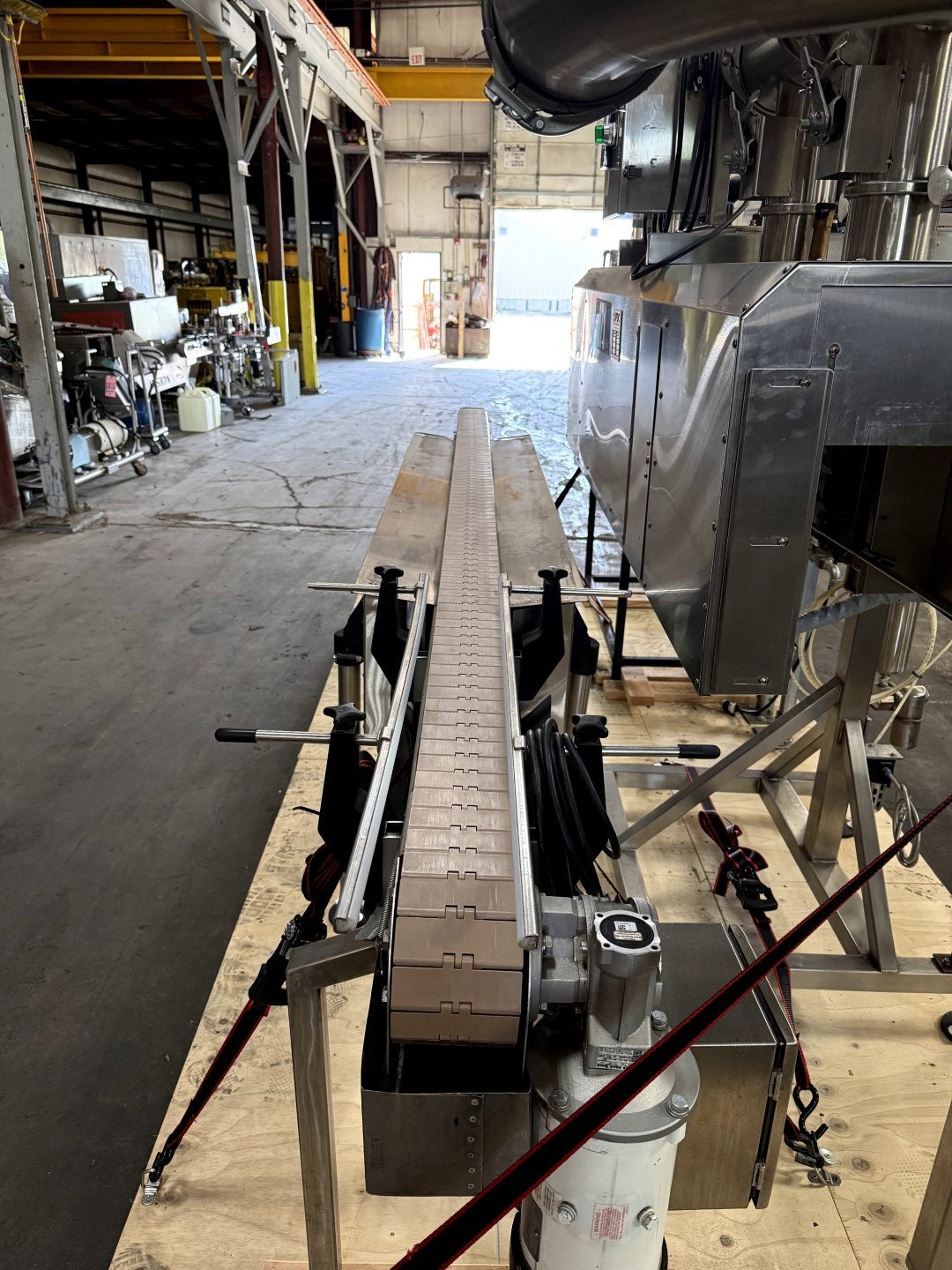

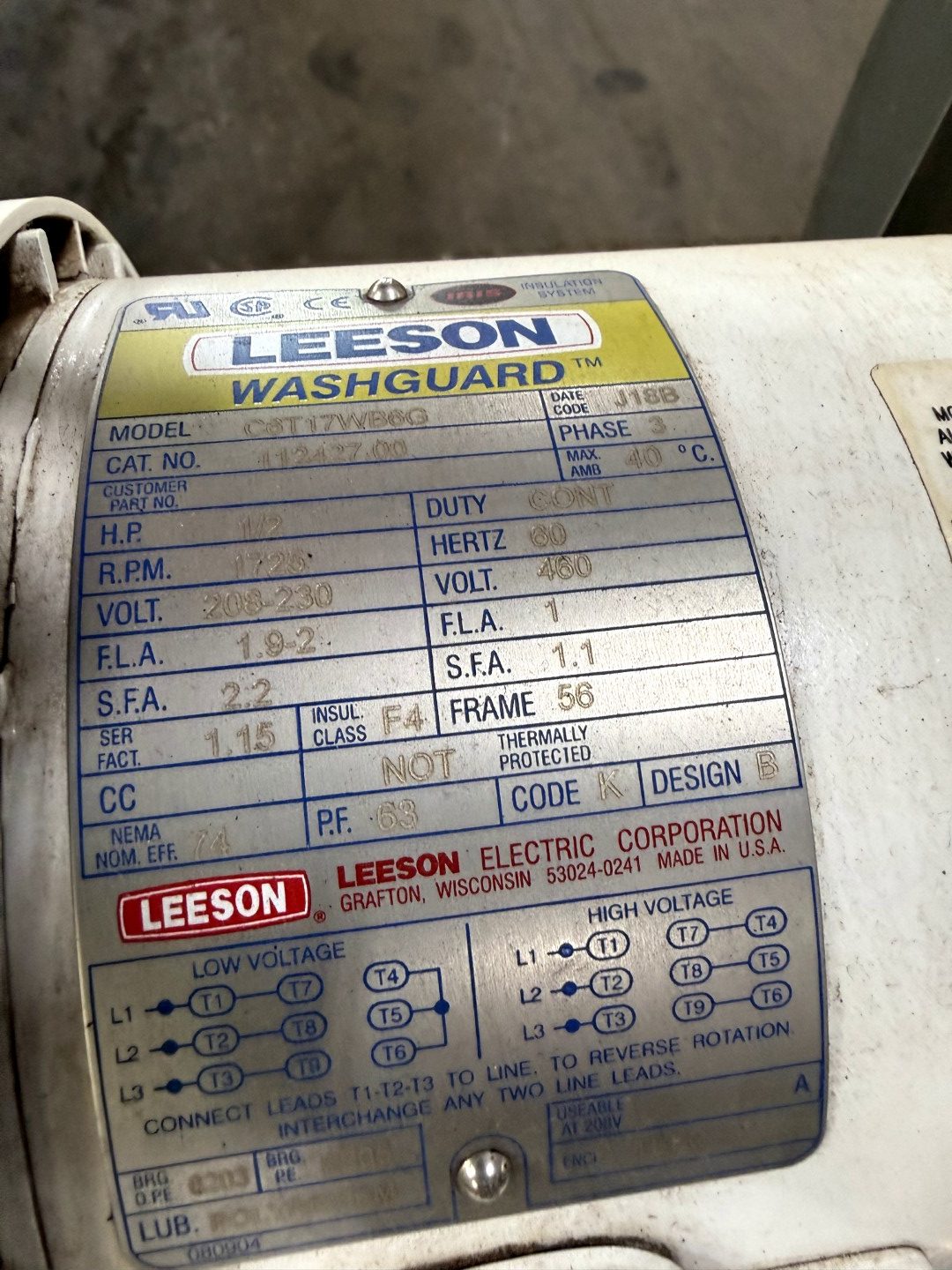

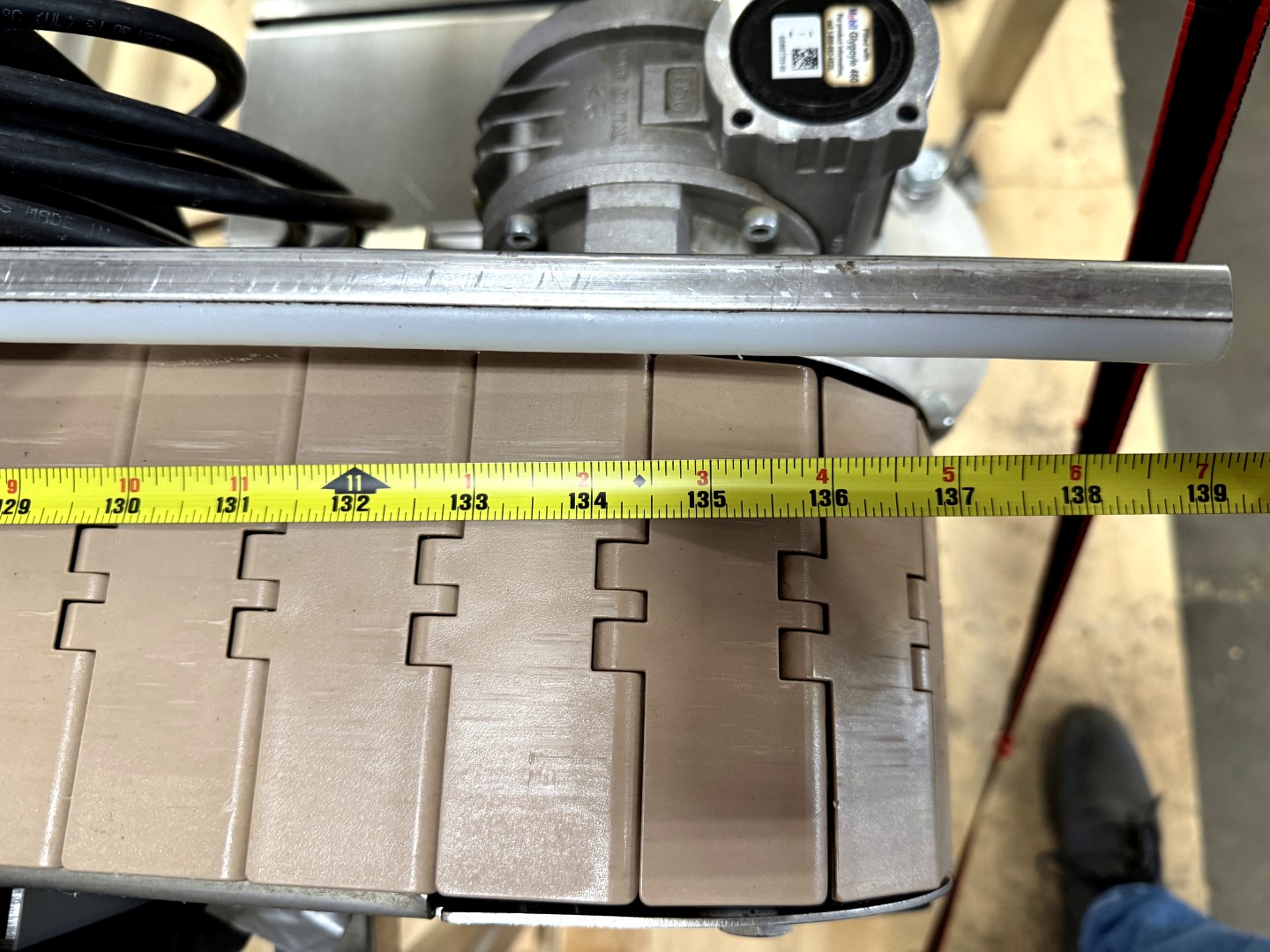

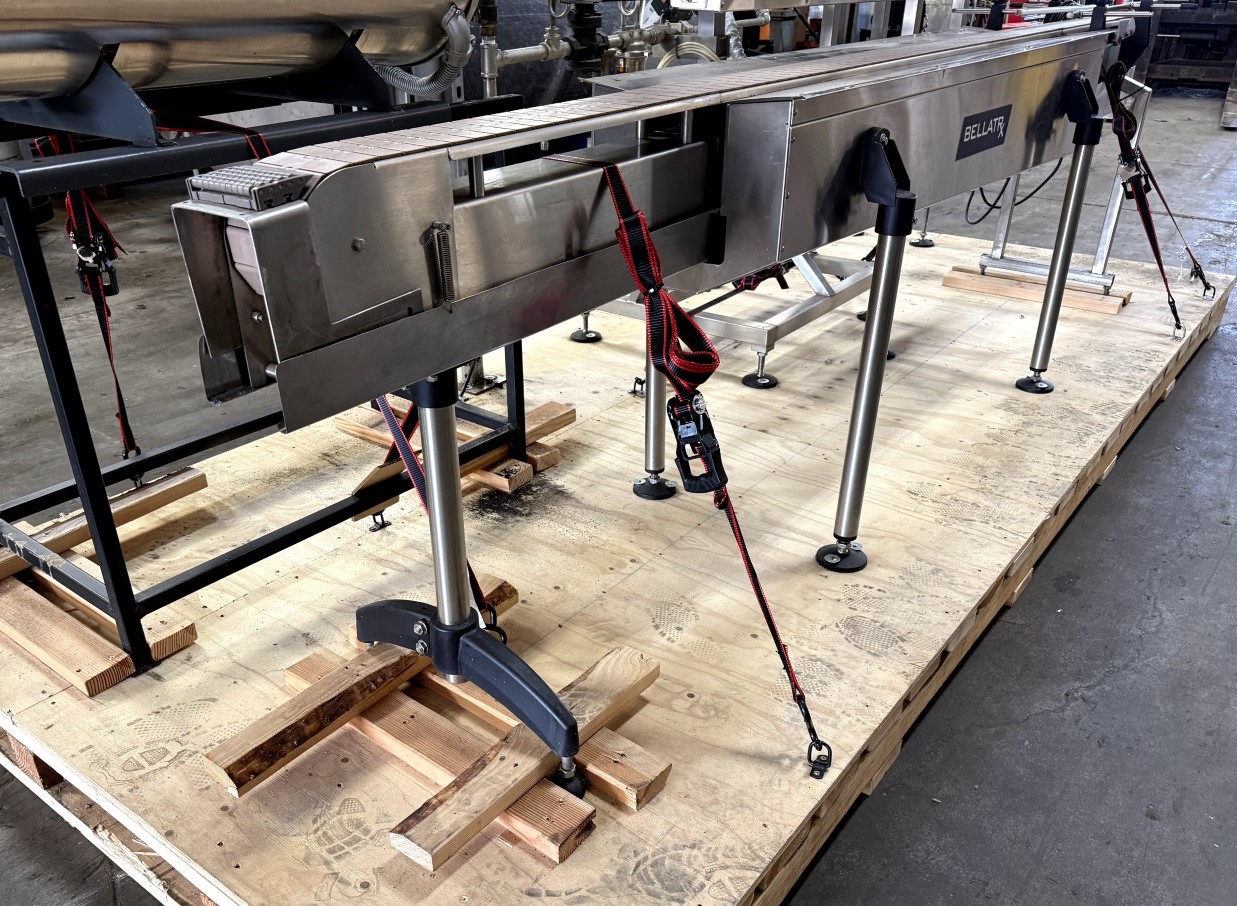

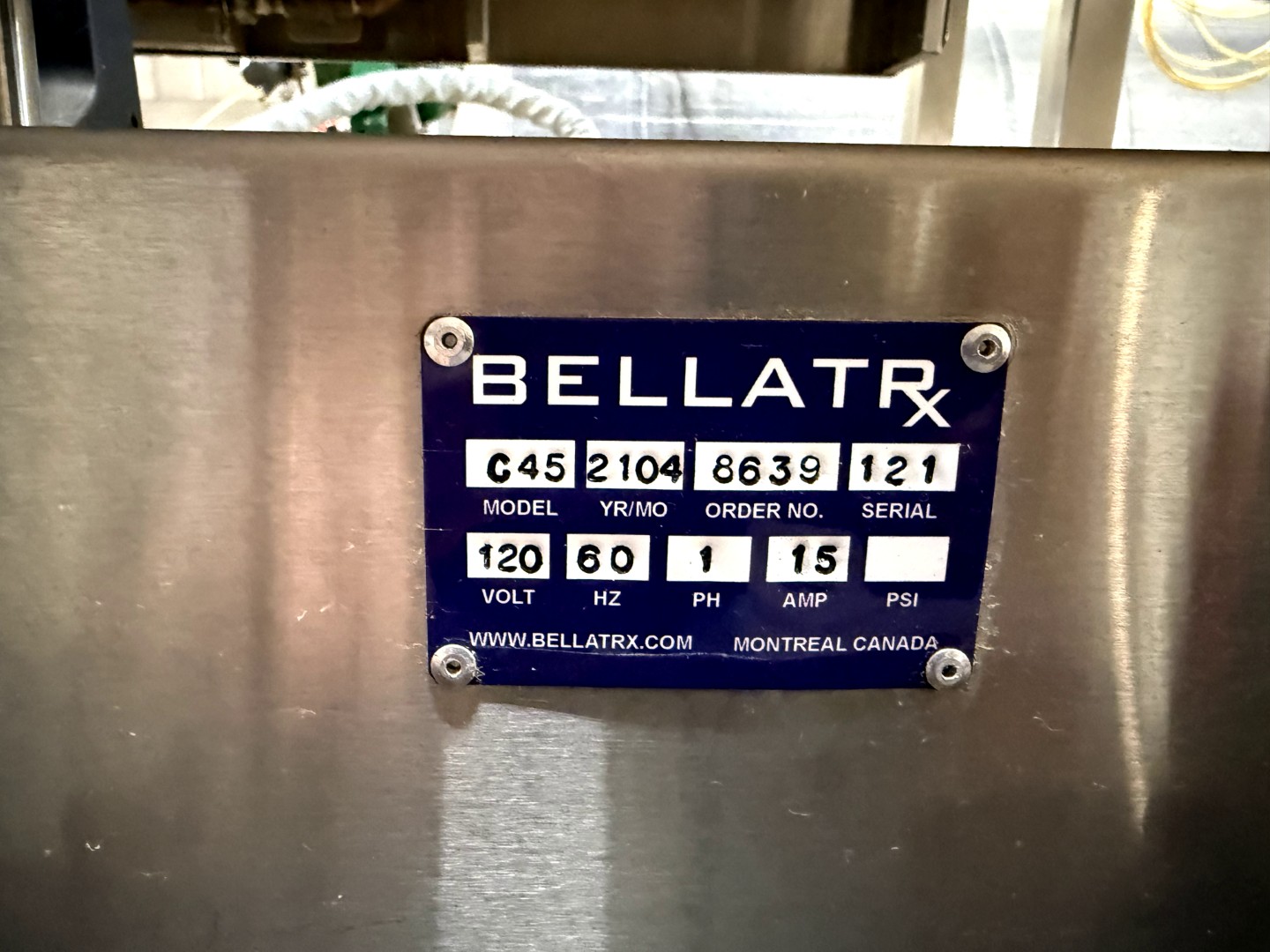

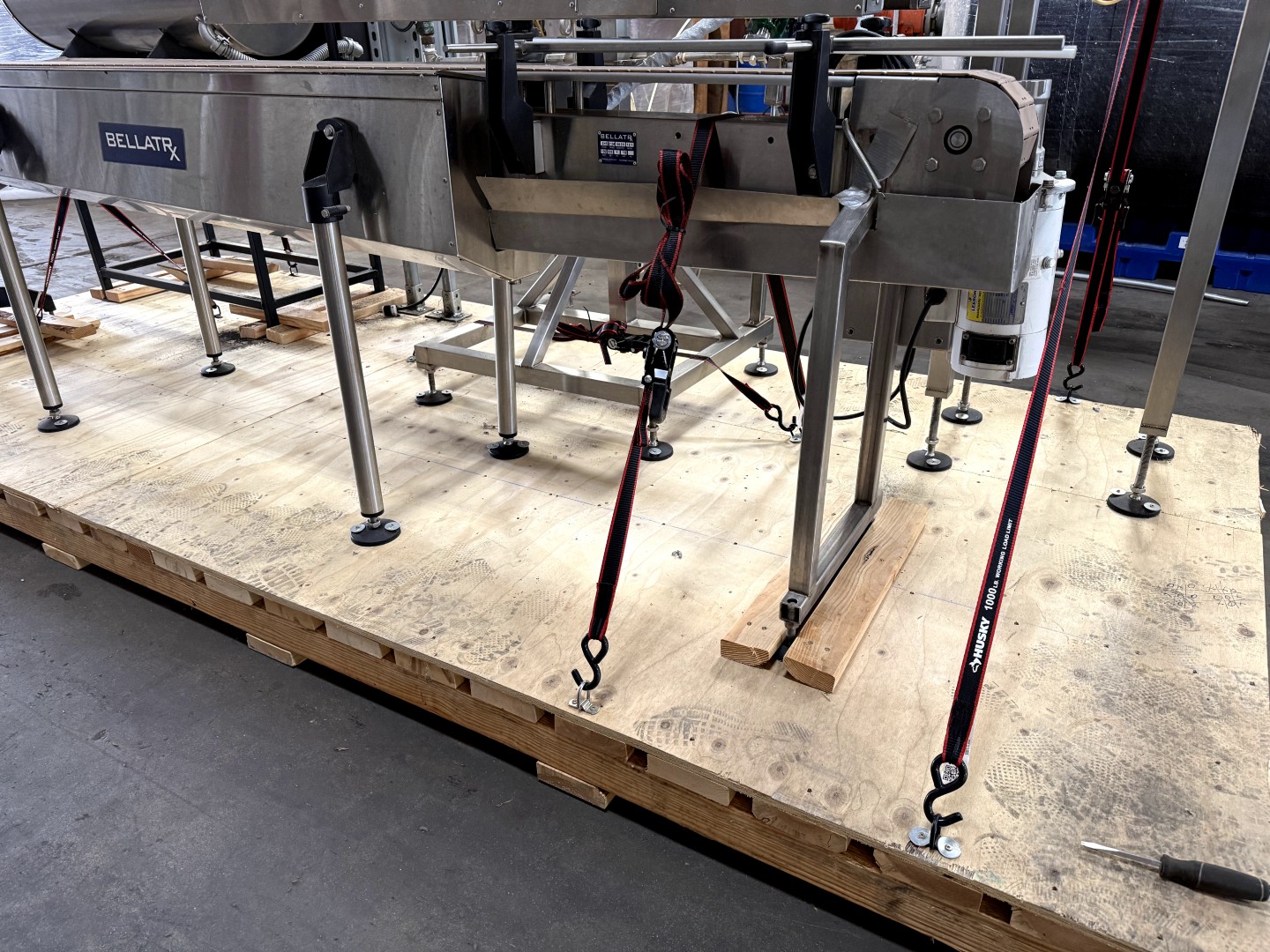

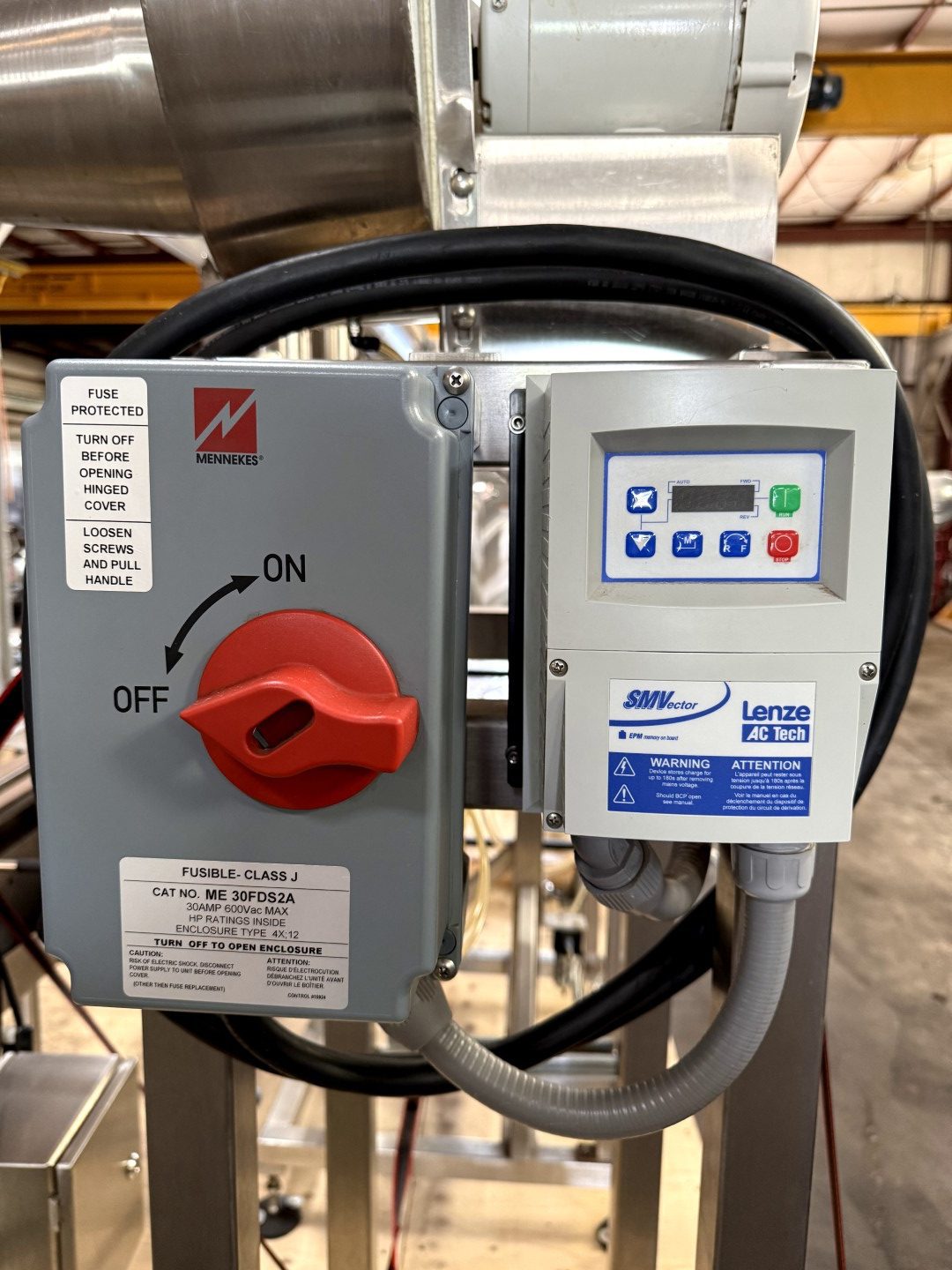

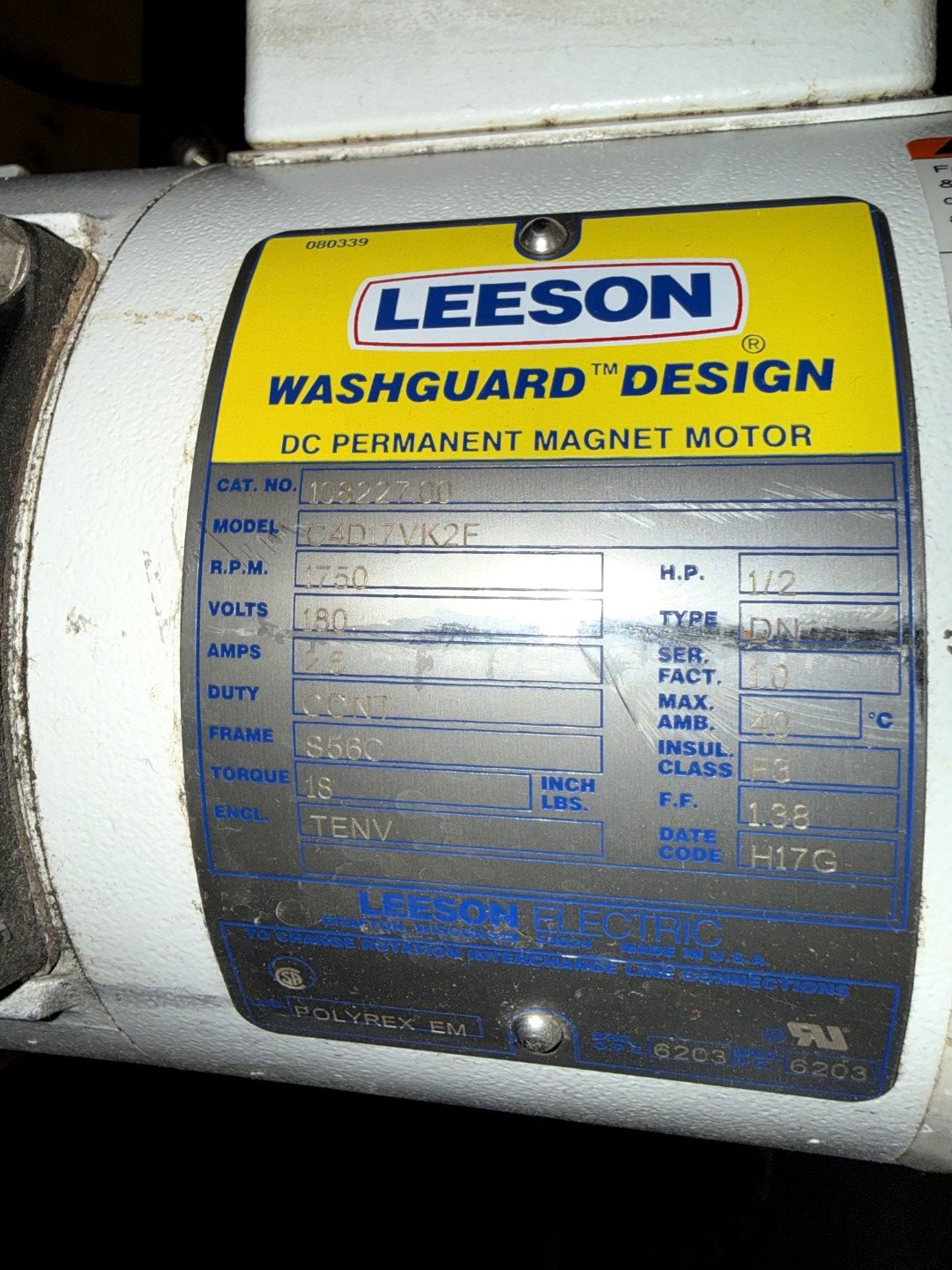

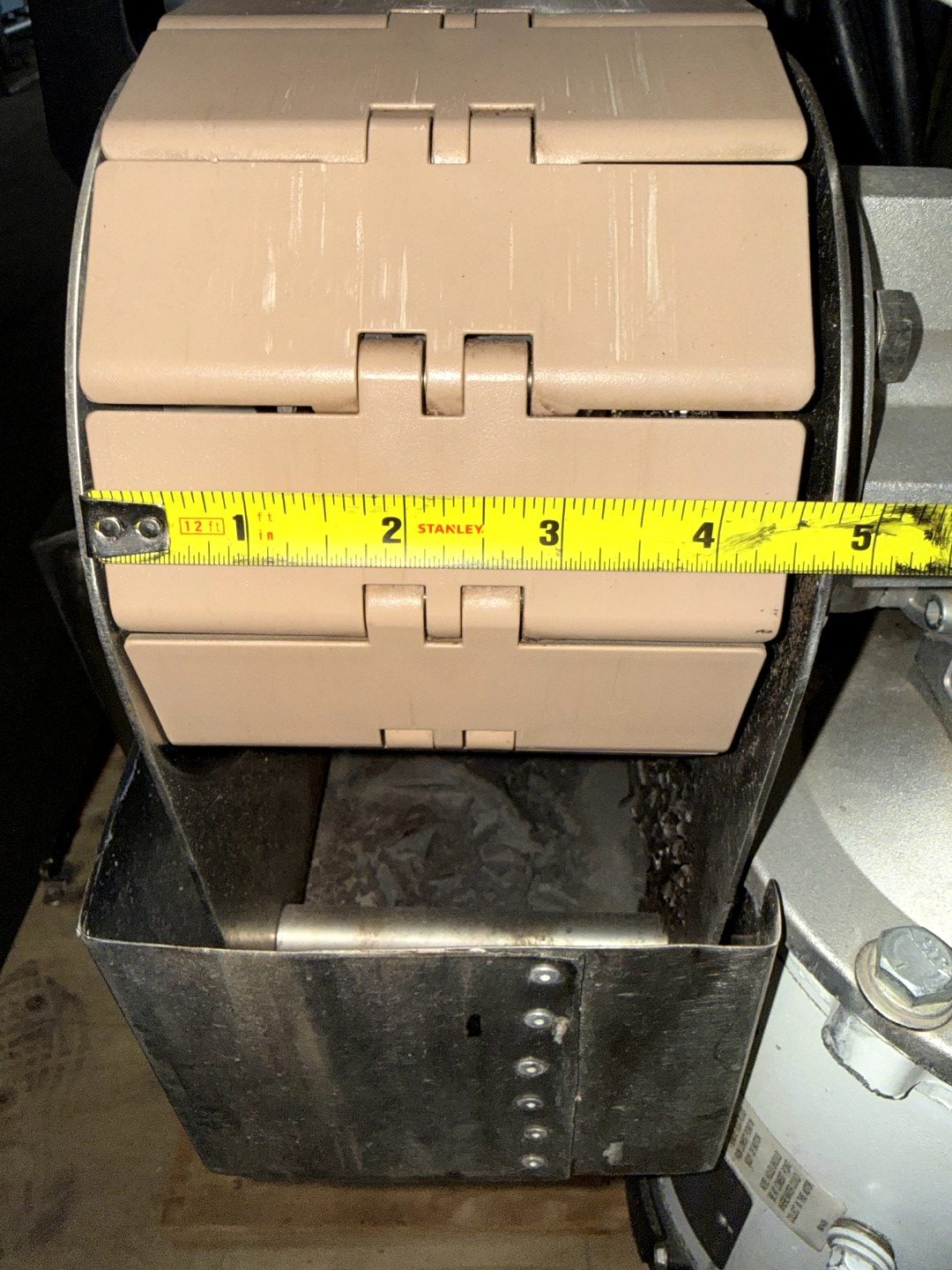

The Bellatrx conveyor measures 137 inches long by 4.5 inches wide. It features a 1/2HP washdown motor designed for wet steam environments. Variable speed control allows operators to adjust throughput and dwell time to match product and film requirements.

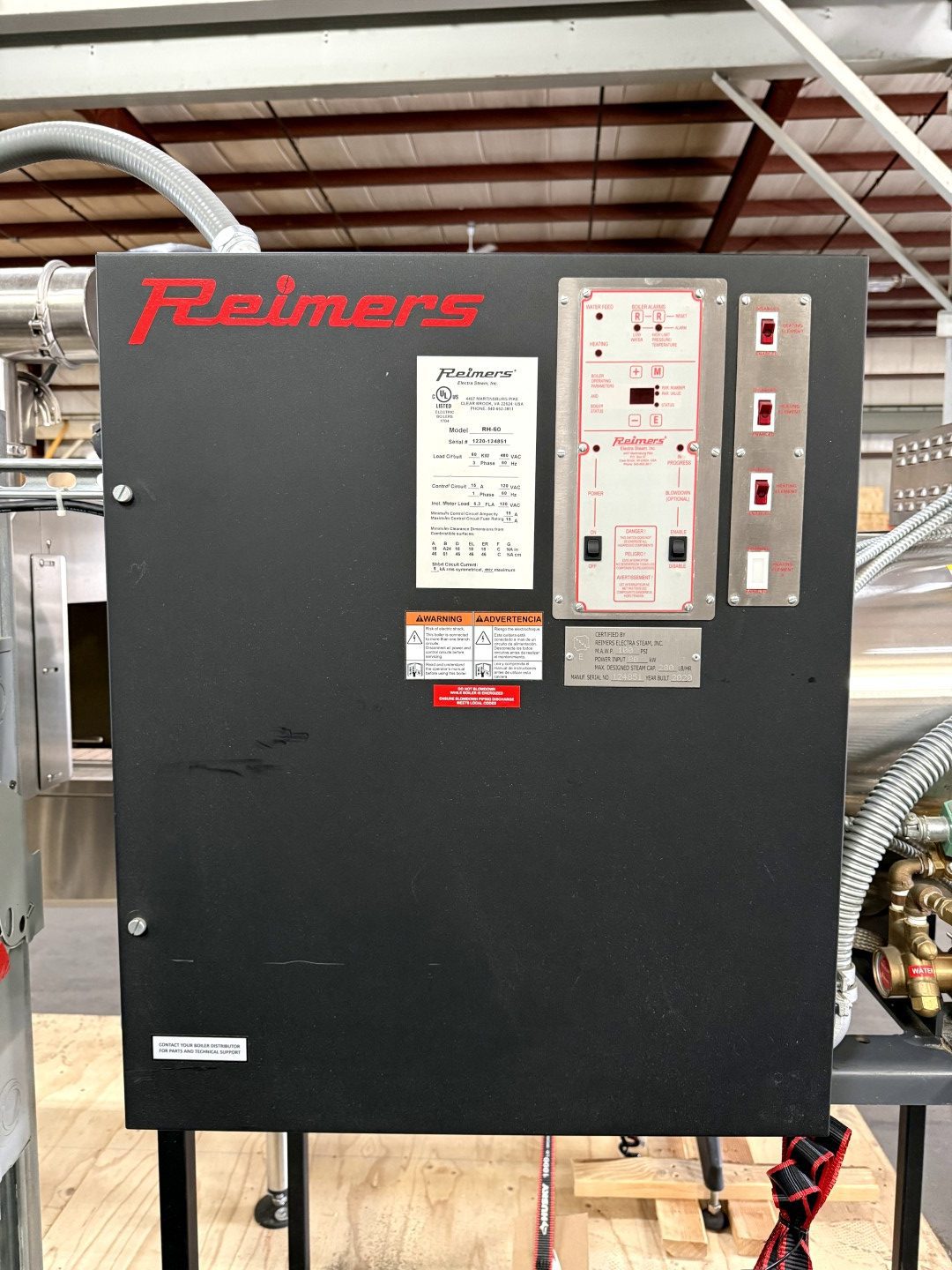

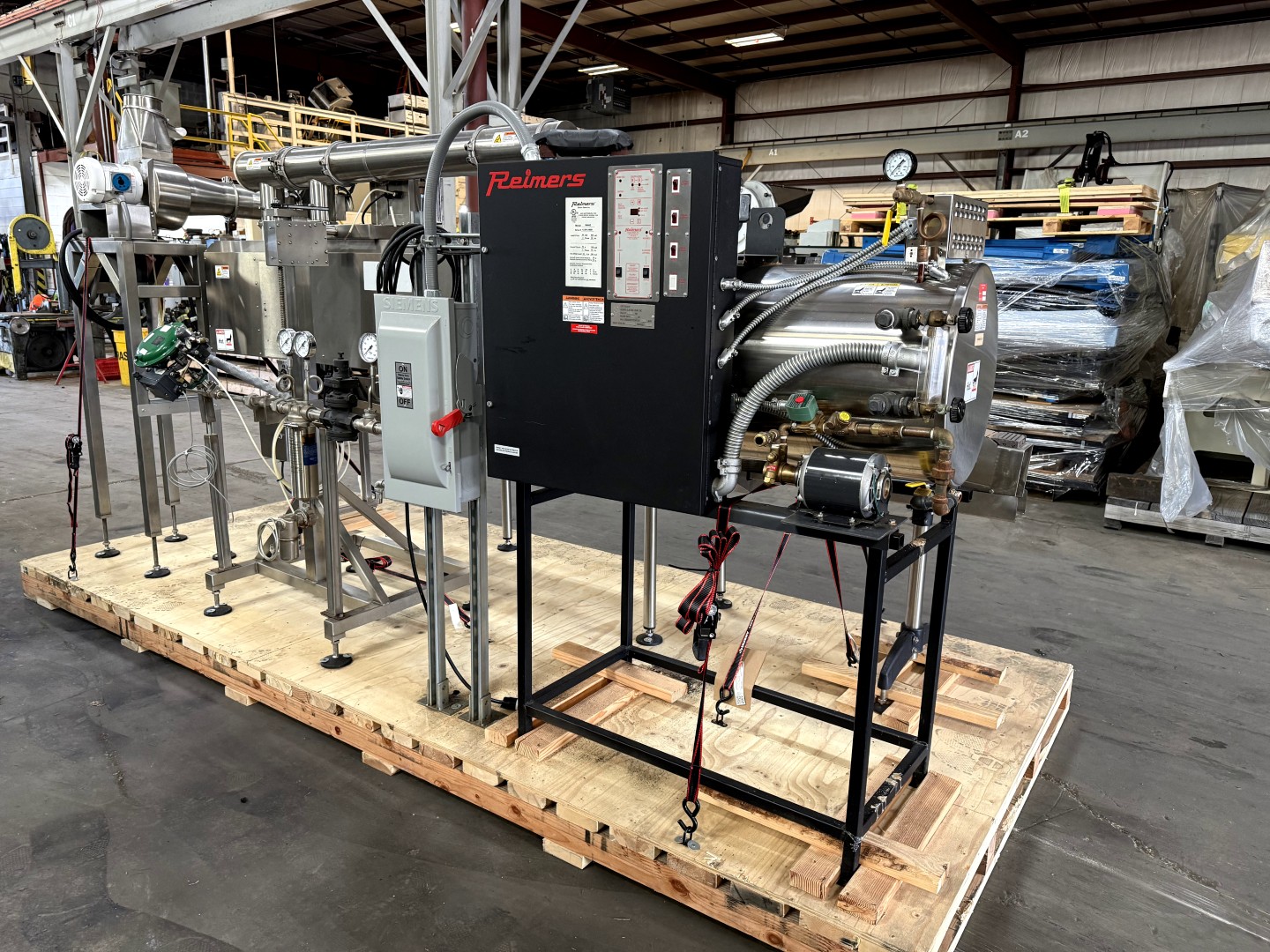

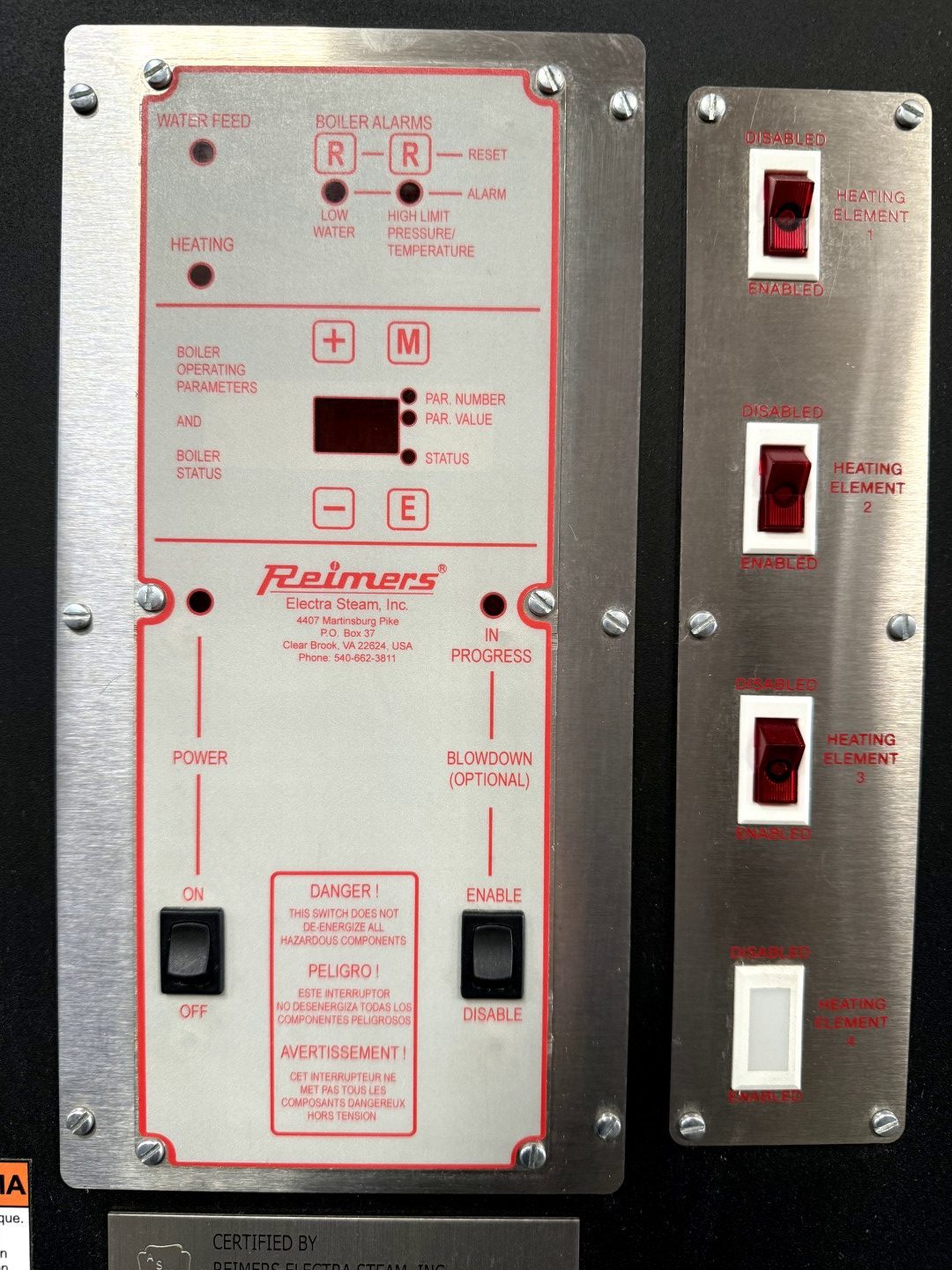

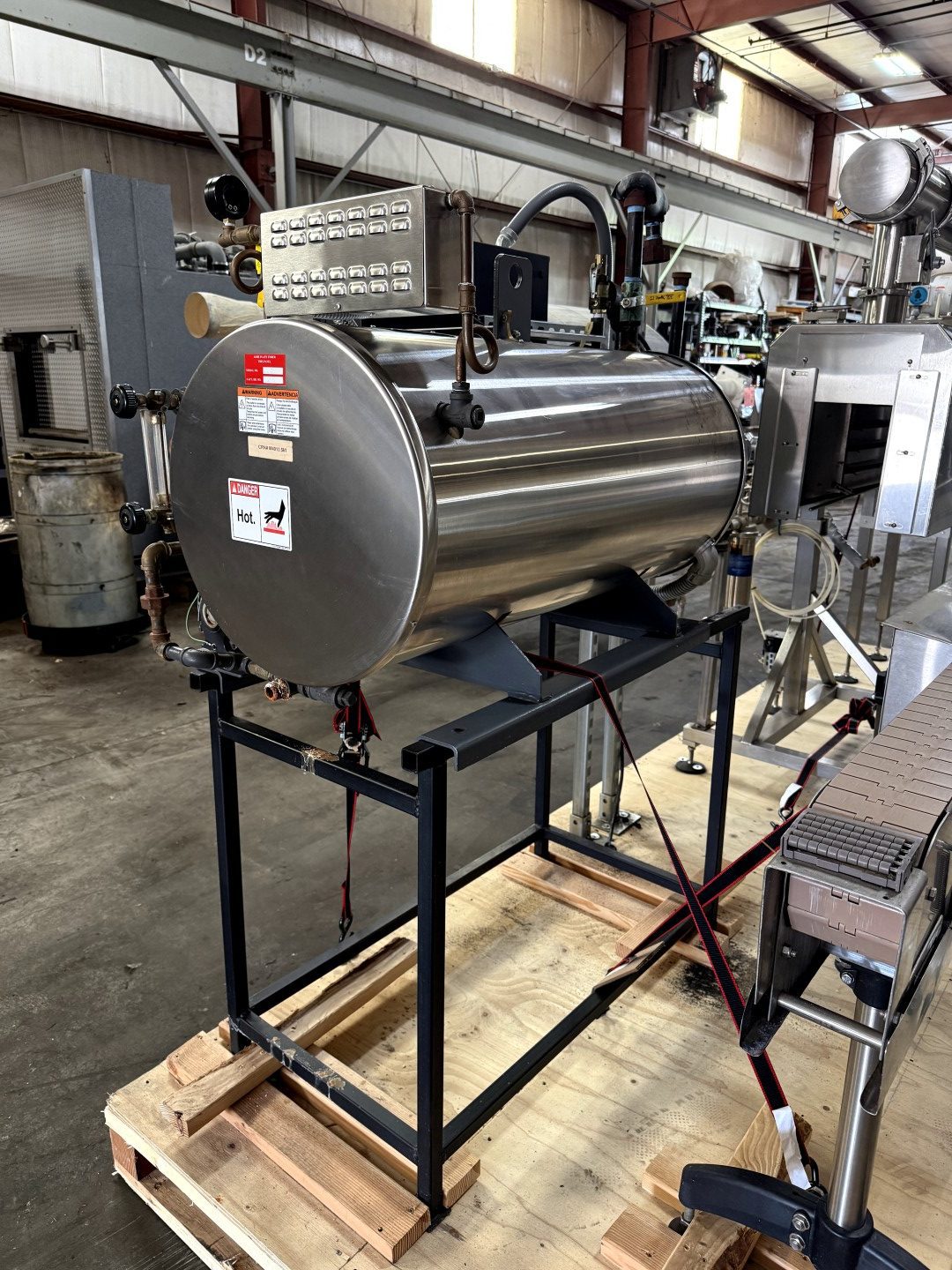

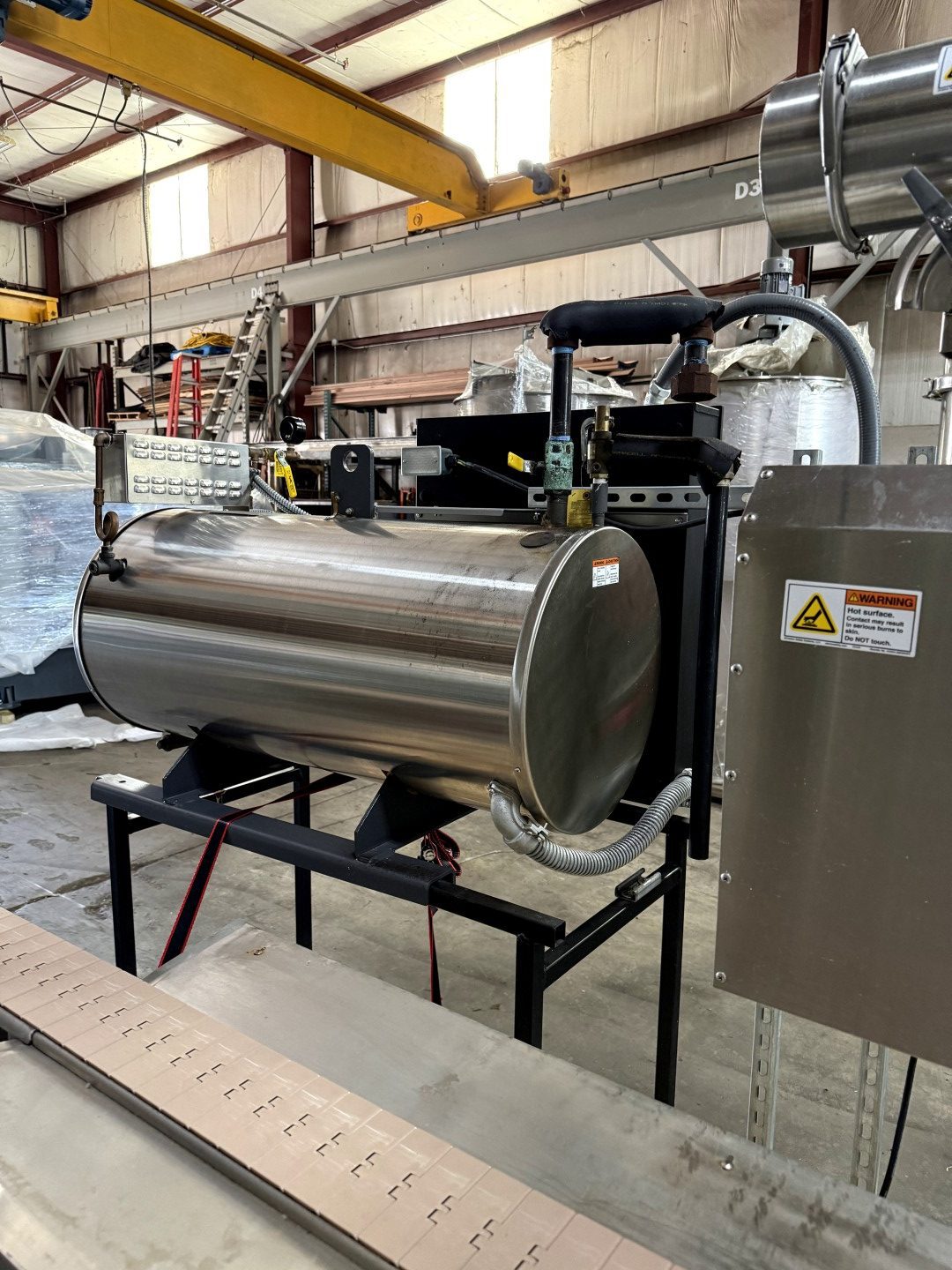

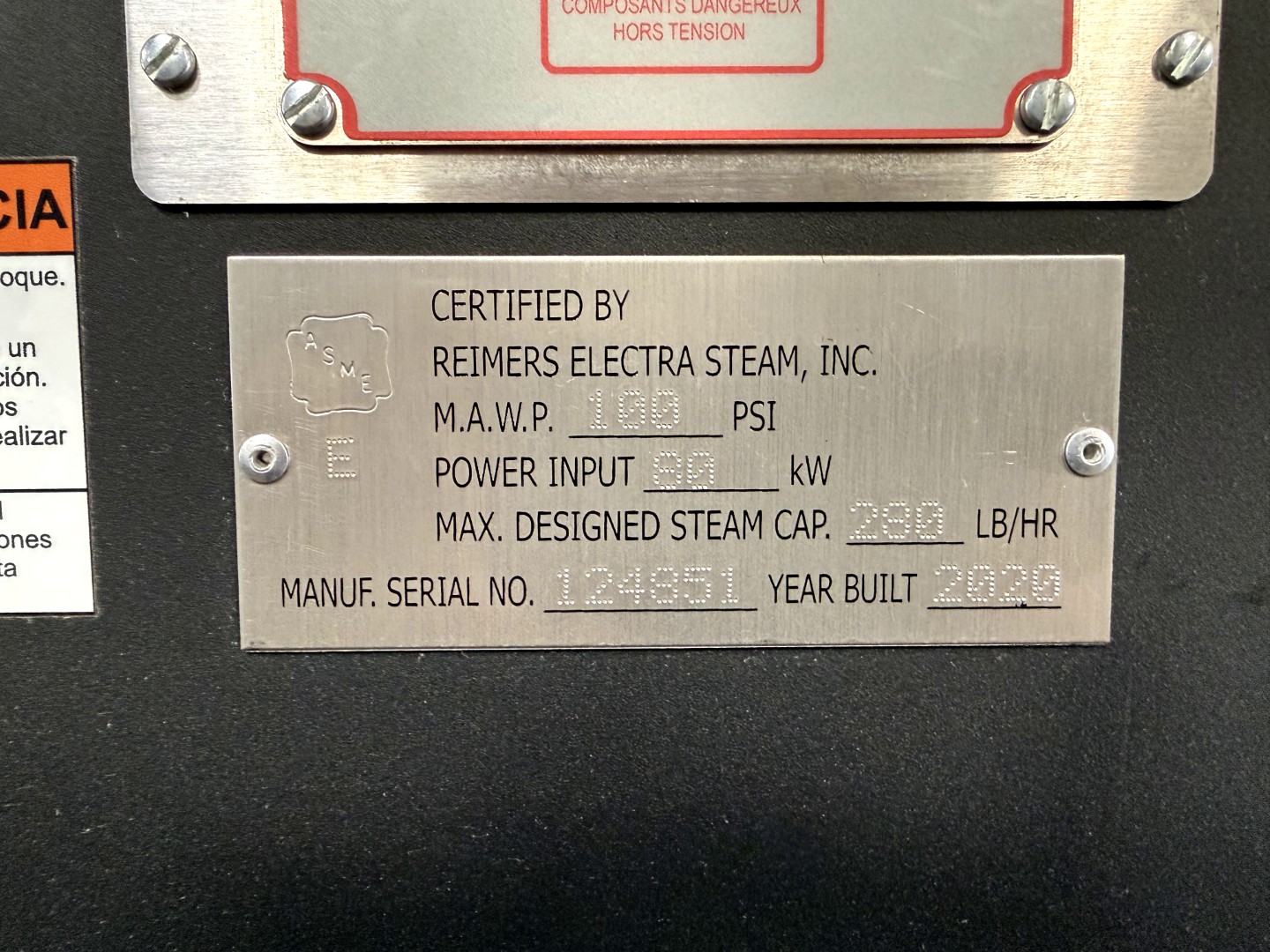

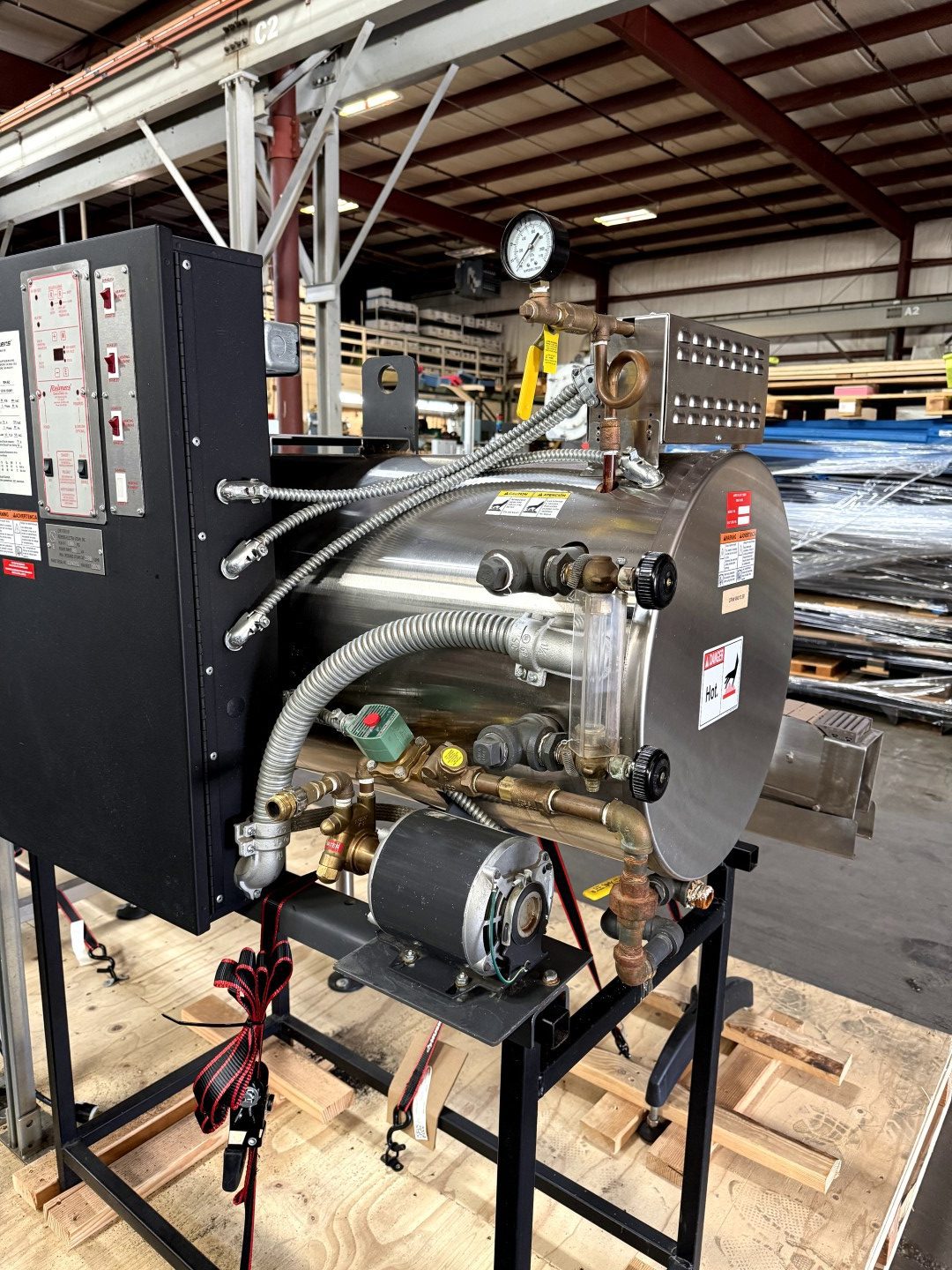

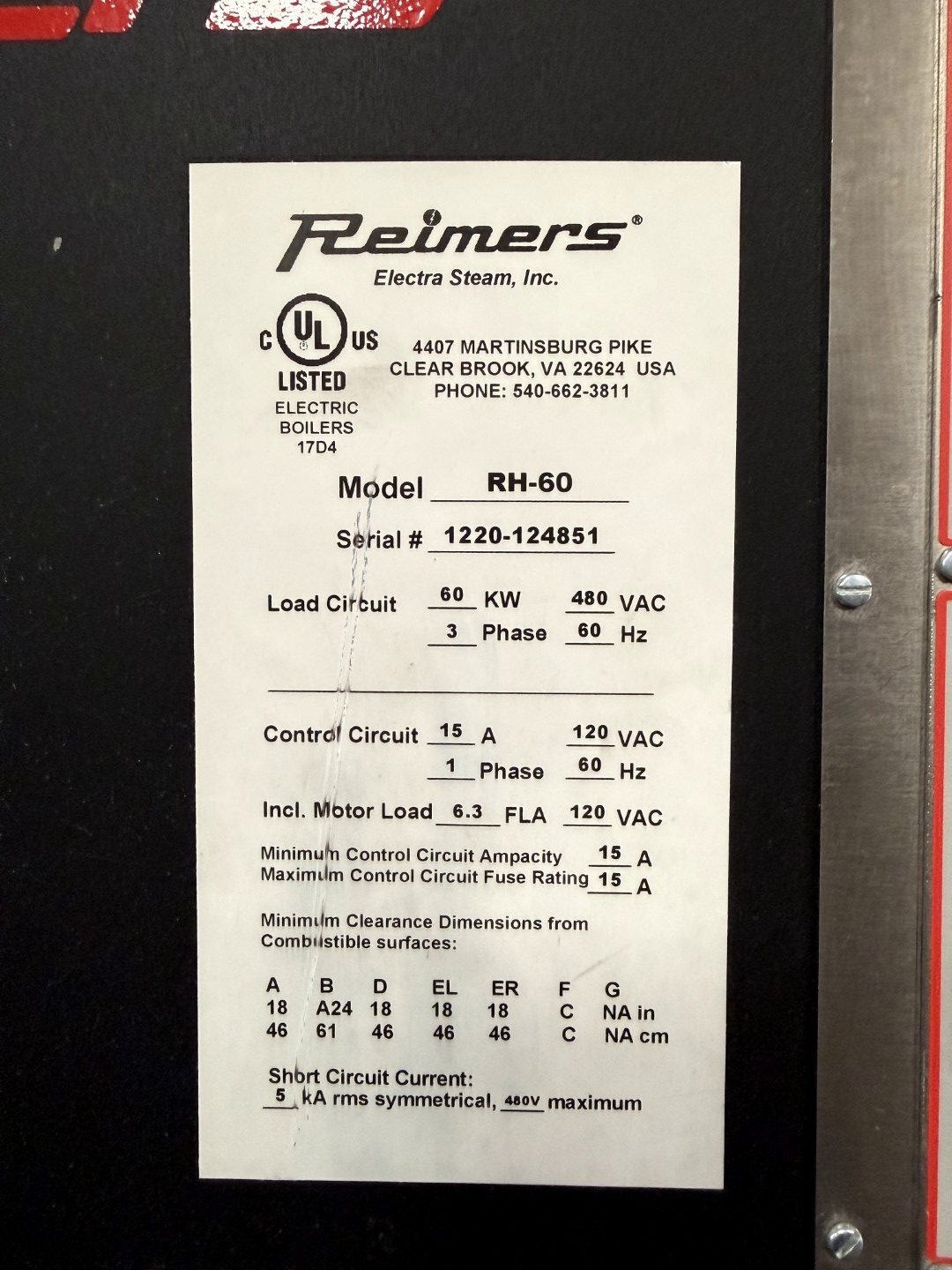

This complete system includes a Reimers RH-60 electric steam boiler built in 2020. The boiler provides dedicated steam generation, eliminating the need for facility steam connections. Maximum Allowable Working Pressure (MAWP) is 100 PSI with maximum designed steam capacity of 280 lb/hr.
The integrated boiler configuration simplifies installation and commissioning. Power requirements and steam generation are contained in one package.
Heavy-Duty Construction for Production Reliability
The heavy-duty stainless steel tunnel stand provides stable mounting. The 70-inch overall tunnel length provides adequate dwell time for complete shrinking at production speeds.
Dual-wall stainless steel construction provides durability while reducing heat loss. This efficient design minimizes energy consumption while maintaining precise temperature control.
Built in 2021, this used steam tunnel represents relatively recent technology with modern components and engineering improvements.
Proven PDC Quality at Exceptional Value
PDC International has been an industry leader in shrink tunnel technology for decades. Their steam tunnels are known for producing high-quality, distortion-free results on even the most challenging container shapes and label applications.
This used PDC shrink tunnel offers access to that proven performance and American-built quality at substantial savings. For operations looking to add steam tunnel capability, upgrade from hot air systems, or expand shrink labeling capacity, this 2021-built KST55-914 represents smart investment in field-proven technology.
Contact our team to learn more about this PDC KST55-914 steam tunnel and how it can enhance your shrink labeling operations.
Details
- Type: Single Zone Steam Tunnel
- Overall Tunnel Length: 70″
- Opening Size: 9″ x 11″
- Construction: Stainless steel, dual-wall
- Vent Requirement: Two 6″ diameter ports
- Manifold: Adjustable for container range flexibility
- Steam Regulation: Manually adjustable primary regulator
- Pressure Gauges: (2) 0-100 PSI
- Condensate Management: Condensate trap included

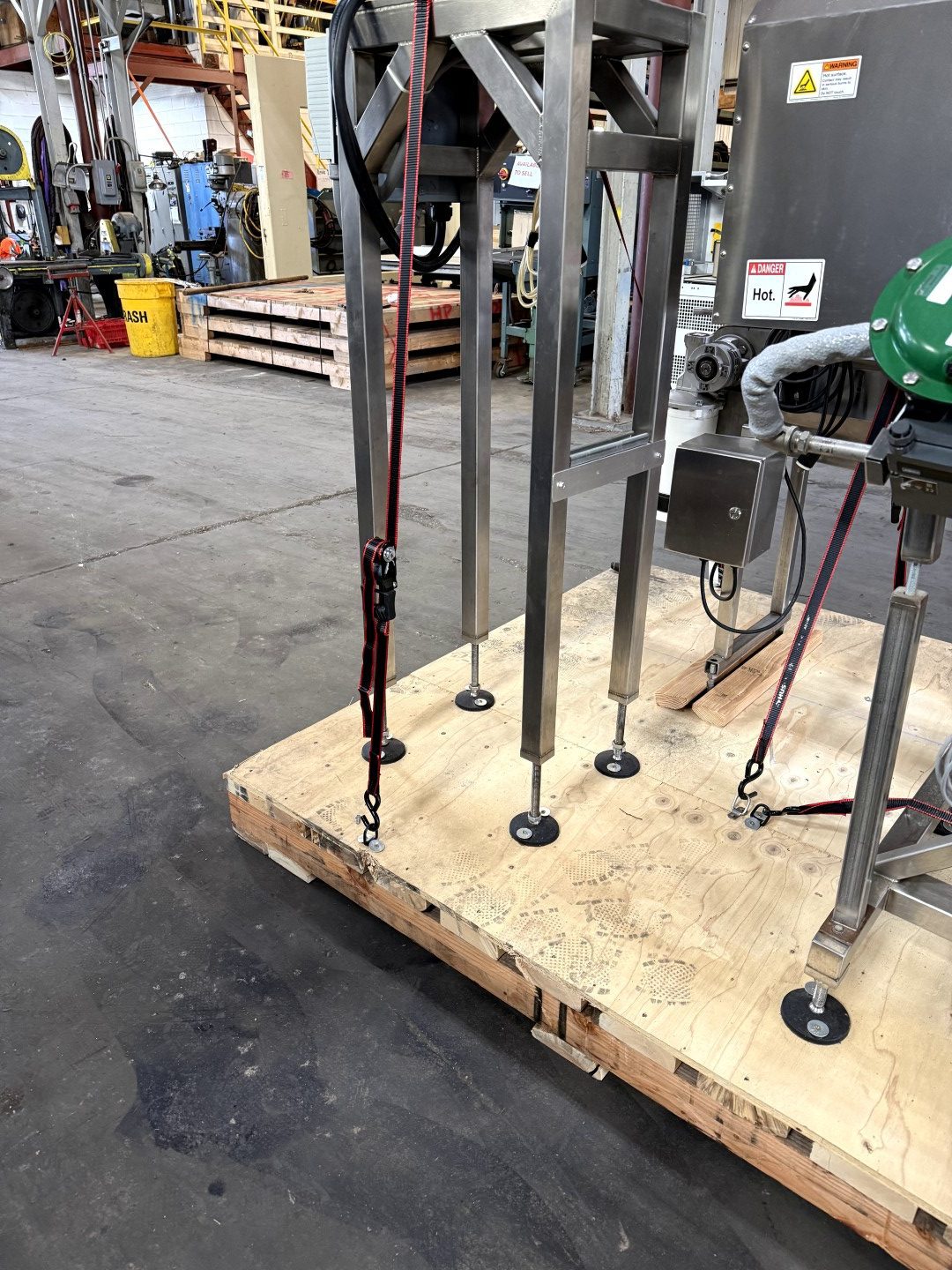

- Tunnel Stand: Heavy-duty stainless steel
- Steam Filtration: Standard steam filter and water separator
- Exhaust: Steam exhaust manifold
- Vent Manifold: Corrosion-resistant stainless steel
- Vent Stacks: (3) stainless steel
- Vent Control: (3) adjustable dampers
- Blower: 1/2HP motor
- Conveyor: Bellatrx 137″L x 4.5″W

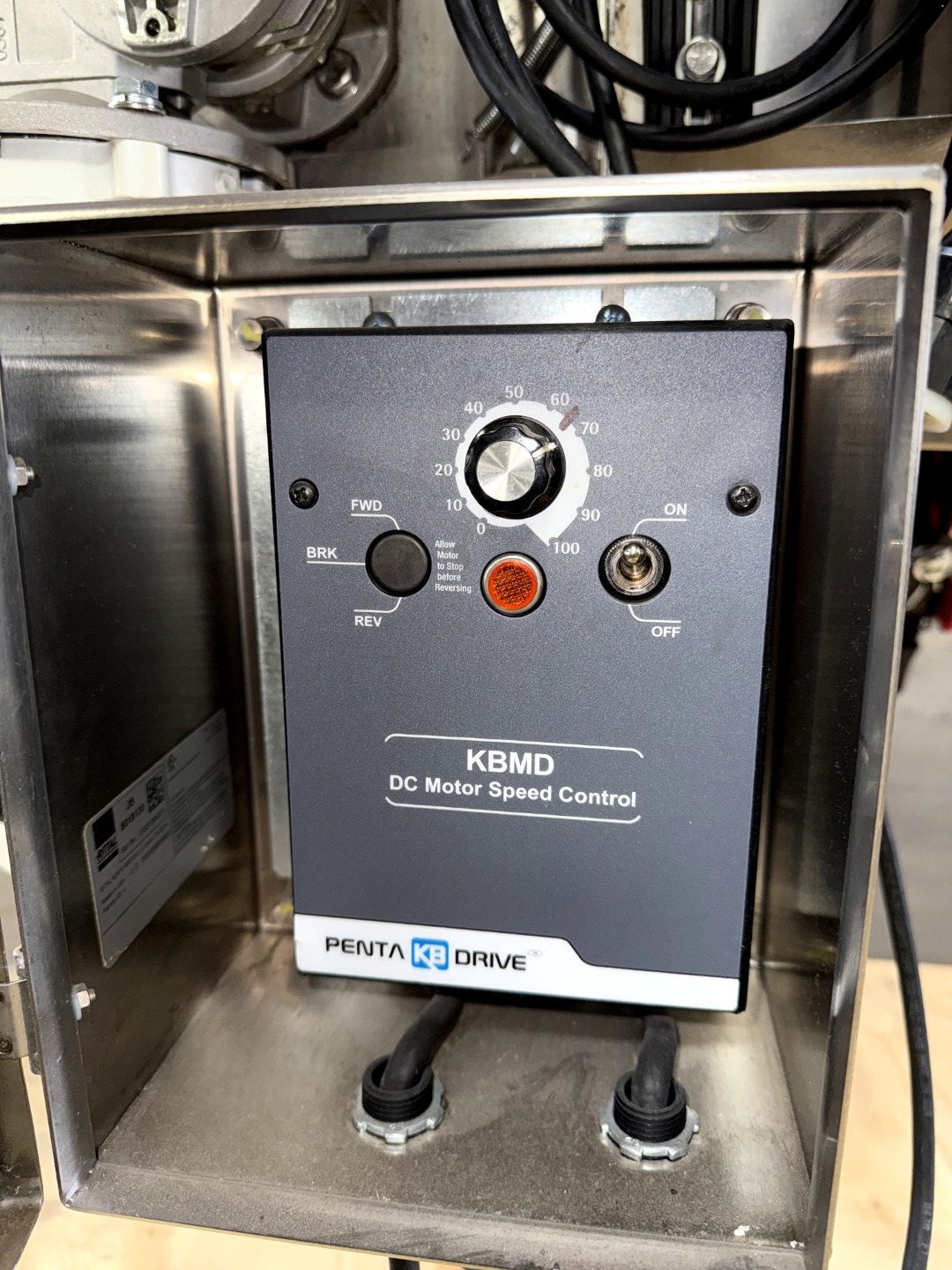

- Conveyor Motor: 1/2HP washdown with speed control
- Steam Boiler: Reimers RH-60 electric (built 2020)
- MAWP: 100 PSI
- Max Steam Capacity: 280 lb/hr
- Year: 2021
