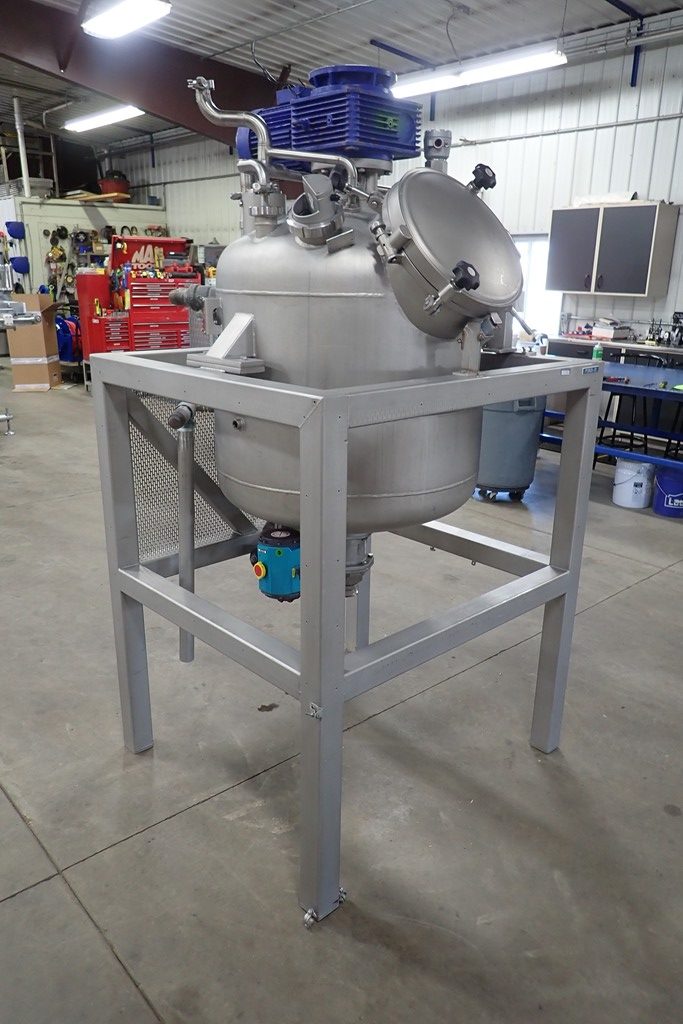

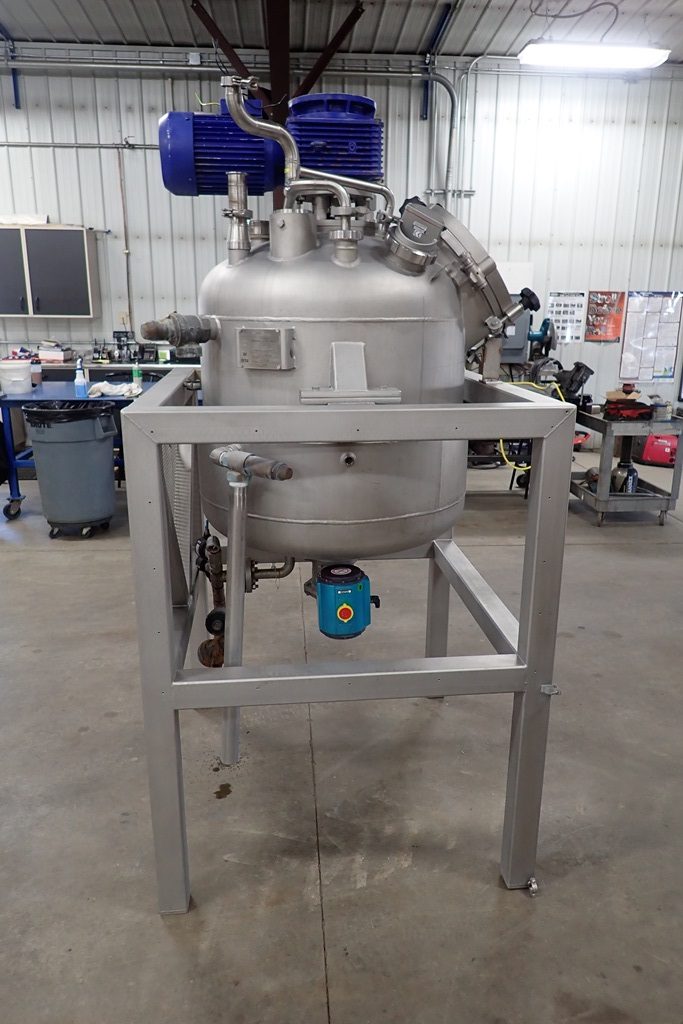

Roks Montage SS 1/2 Jacketed Cooker Cooler

Equipment Specifications

Roks Montage
Stanton, ND
Serial Number
03-117 U 01
Overall dimensons
54″ L x 43″ W x 92″ T (w/out skid)

Contact for price
  • The Roks Montage Stainless Steel 1/2 Jacketed Cooker Cooler, with an approximate capacity of 125 gallons, combines precision cooking and cooling capabilities in one robust unit. Featuring single-motion scrape surface agitation, this equipment ensures uniform heat distribution and prevents product from sticking to the vessel walls, ideal for a wide range of applications. This used cooker cooler is designed with a 32″ diameter and 36″ straight wall, complemented by a dome top and bottom for efficient processing.

    This machine is equipped with a variety of ports for versatility in connections, including two 4″ male threaded ports, two 4″ female threaded ports, and multiple other ports for comprehensive process integration. Its efficient cleaning is supported by two CIP rotating balls, one CIP ring, and a CIP spray ball, ensuring stringent hygiene standards. The unit also features two baffles for improved mixing, a pneumatic valve discharge with a 3 1/2″ sanitary fitting for easy product transfer, and a level indicator for monitoring fill levels.

    Powered by a 5.5/7 HP motor and drive operating on 480V, 3 phase, 60 Hz, this stainless steel constructed cooker cooler is built to last. With its jacket capable of handling pressures from -14.5 to +100.8 psi at up to 361° F, and a minimum design metal temperature of 32° F at 100.8 psi, the Roks Montage cooker cooler is an essential piece of equipment for any facility looking to streamline their cooking and cooling processes with high efficiency and reliability.

    • 125 gallon (approximate)
    • Single motion scrape surface agitation
    • 32″ DIA x 36″ straight wall w/ dome top and bottom; 24″ discharge height; 17″ round cover
    • (2) CIP rotating balls; (1) CIP ring, top ports: (2) 4″ male threaded ports, (2) 4″ female threaded ports, (1) 3 1/2″ male threaded port, (1) 1 1/2″ male threaded port, (1) 2 1/2″ male threaded port, (2) 3 in. male threaded ports, (1) 1 in. female threaded port; CIP spray ball, (2) baffles, pneumatic valve discharge w. 3 1/2″ sanitary fitting, level indicator
    • 5.5/7 HP motor and drive, 480V, 3 phase, 60 Hz
    • Stainless steel construction
    • Max. allowable working pressure: -14.5/+100, 8 psi at 361° F
    • Min. design metal temperature: 32° F at 100, 8 psi
