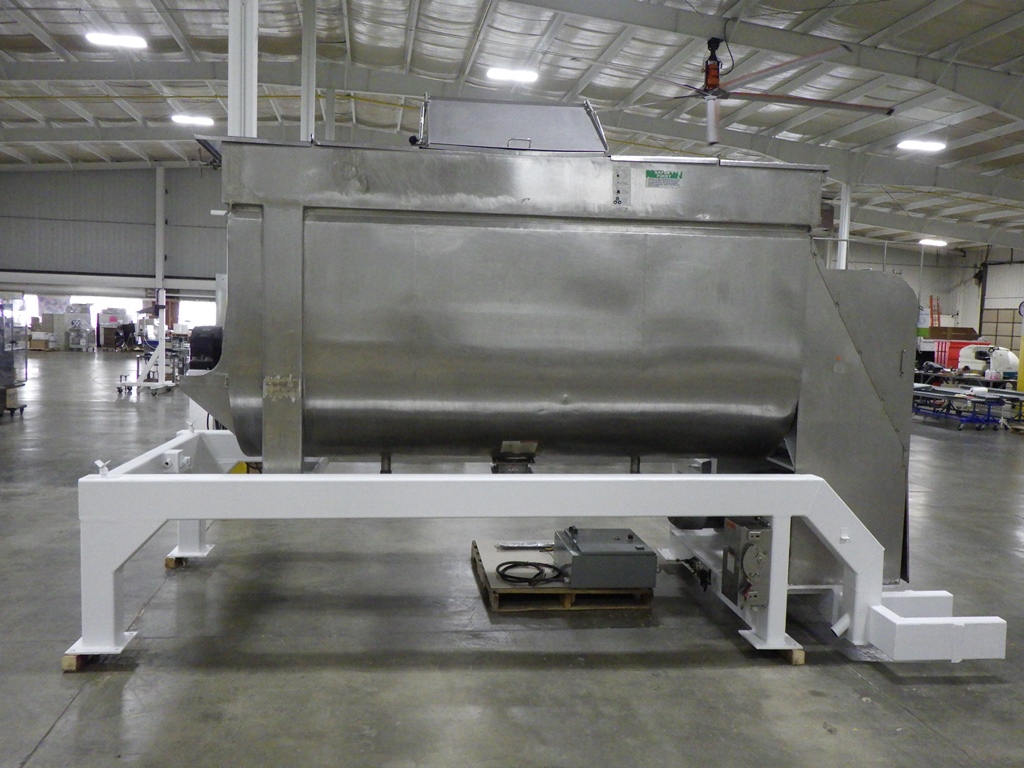

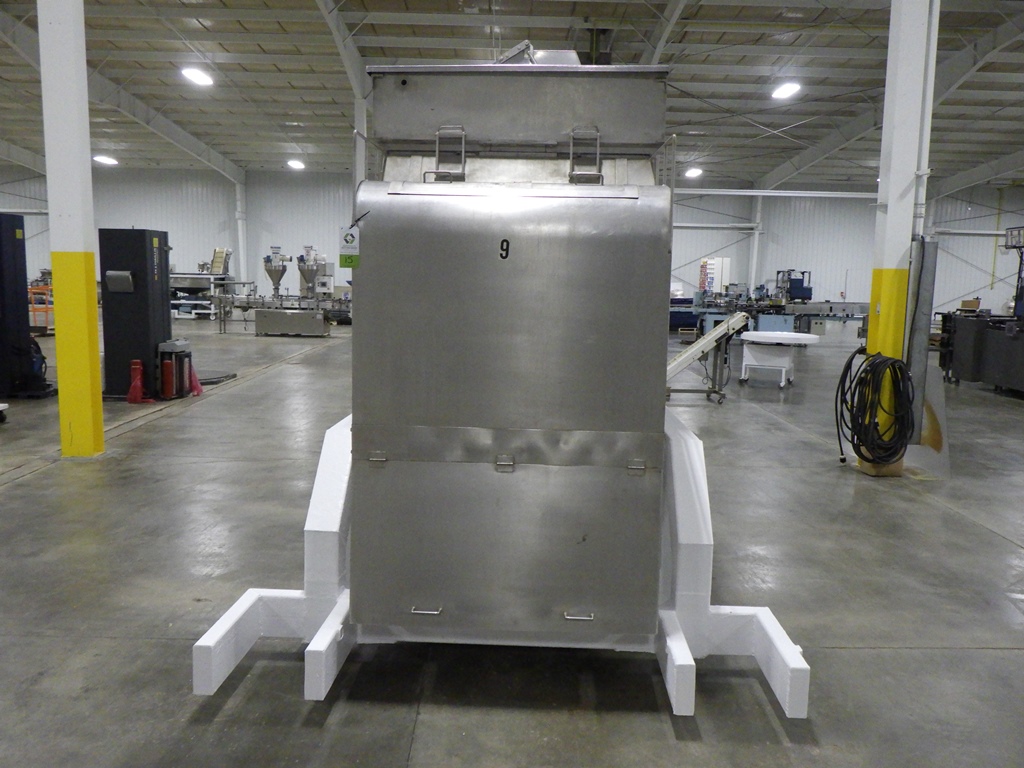

    160 cu ft Stainless Steel Double Ribbon Blender

    Equipment Specifications

    Manufacturer
    Phenix Equipment Co
    Location
    Batavia, IL.
    Stock Number
    00040
    Condition
    used
    Contact for price
    +1 (630) 262-9595

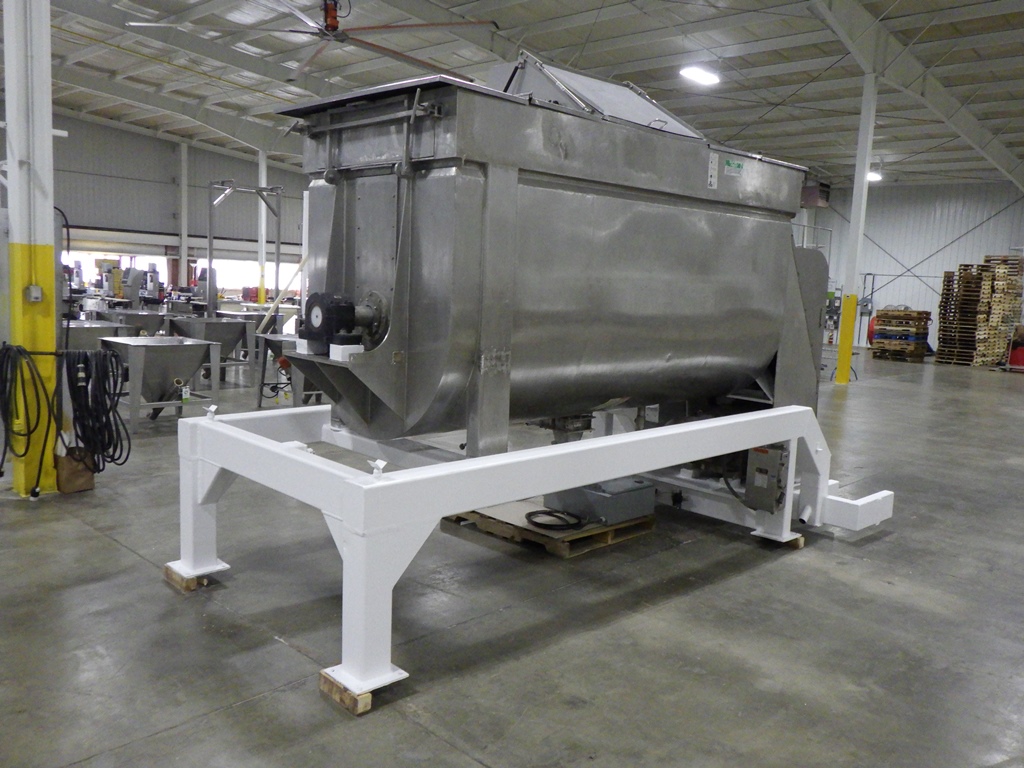

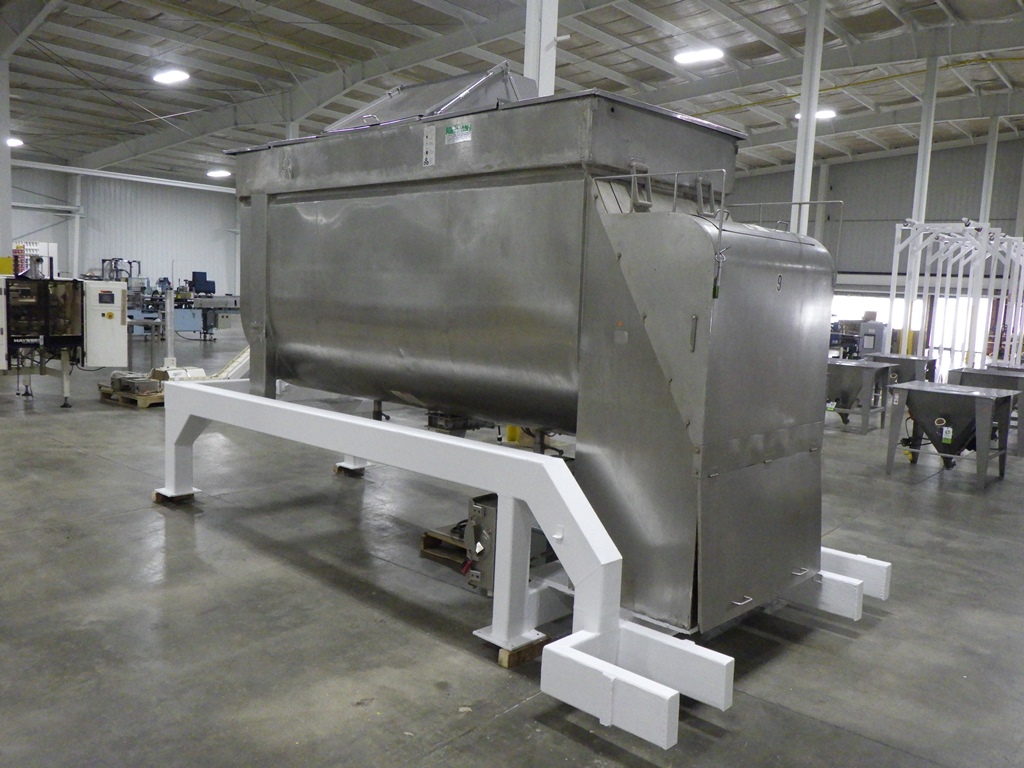

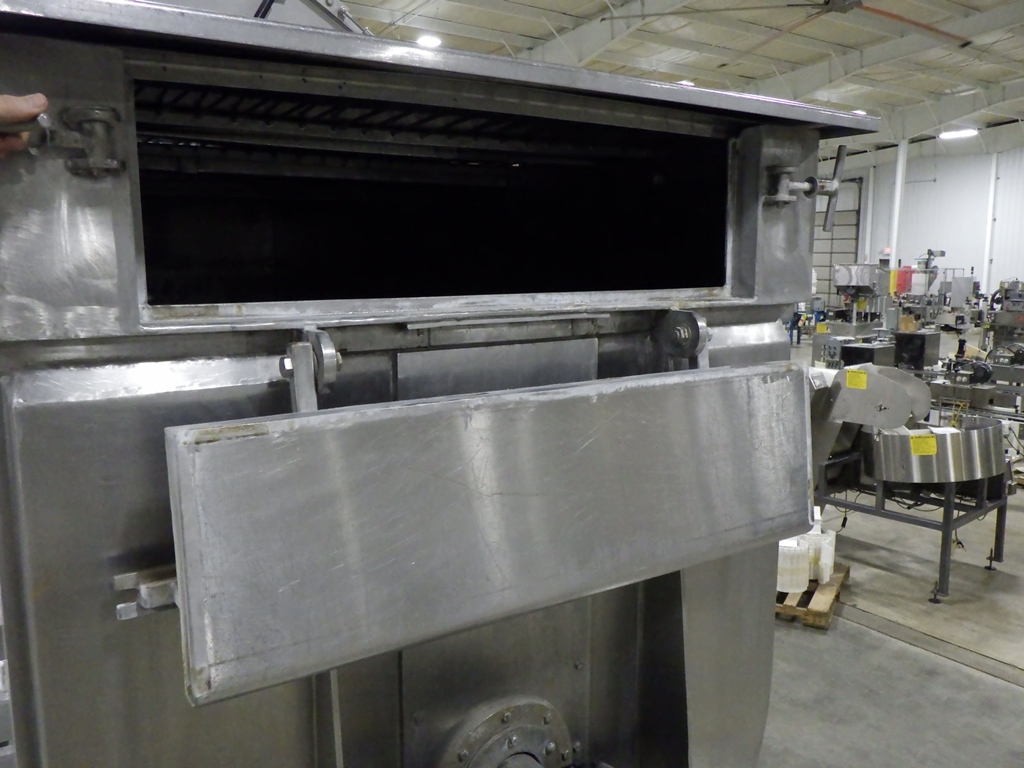

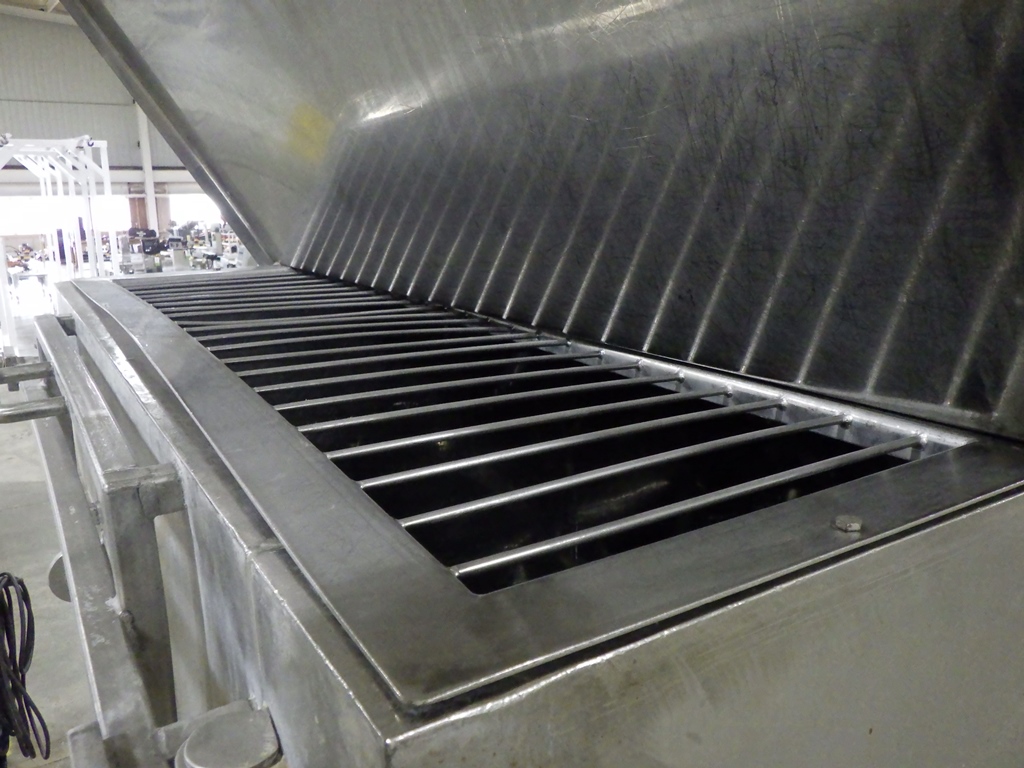

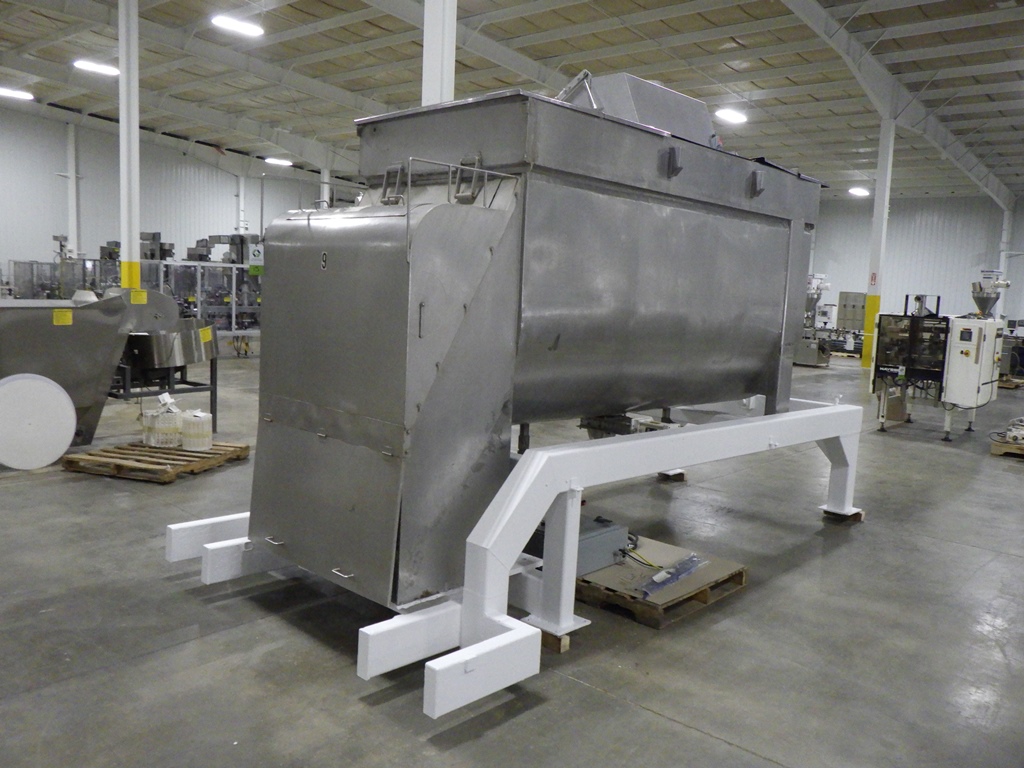

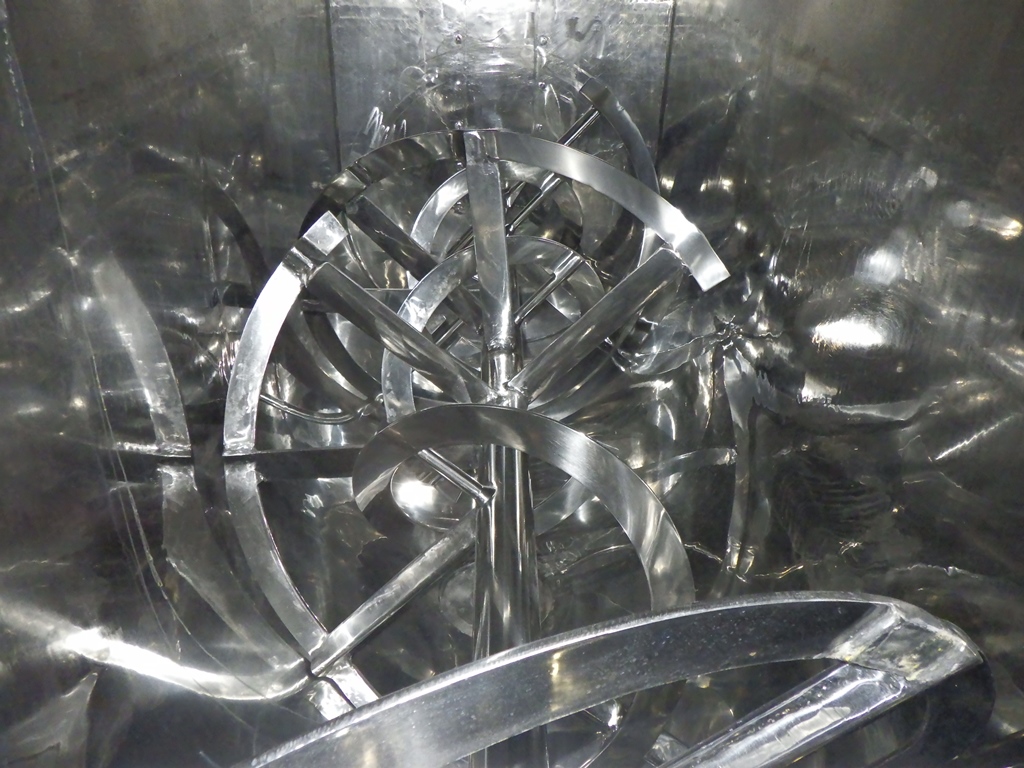

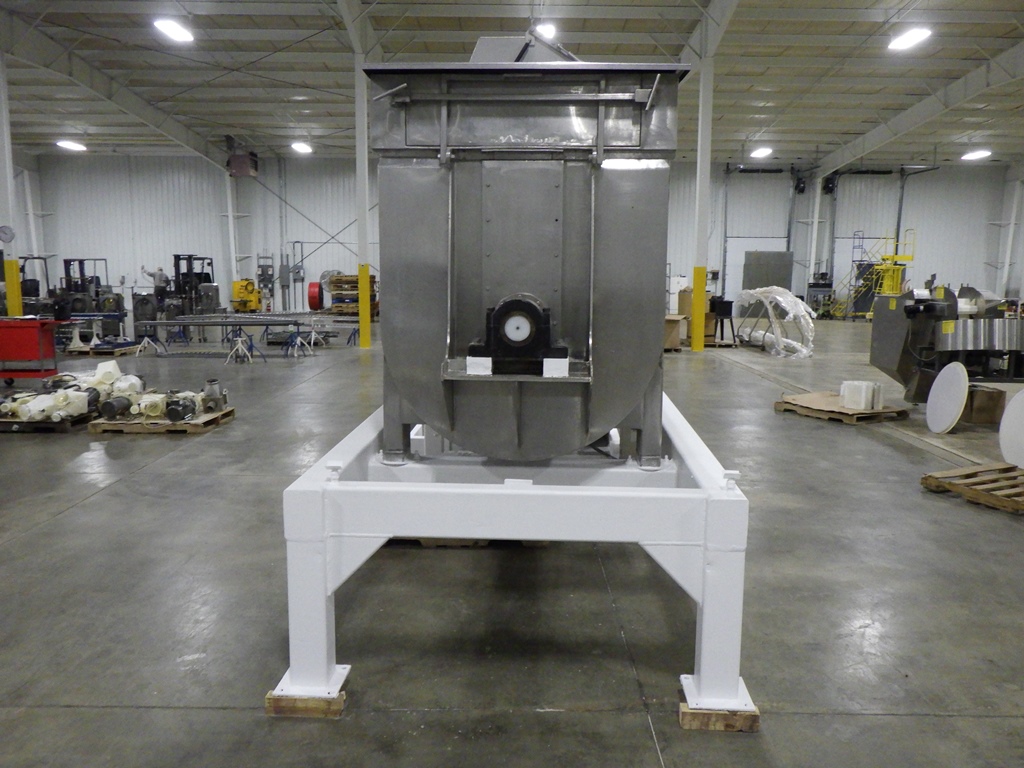

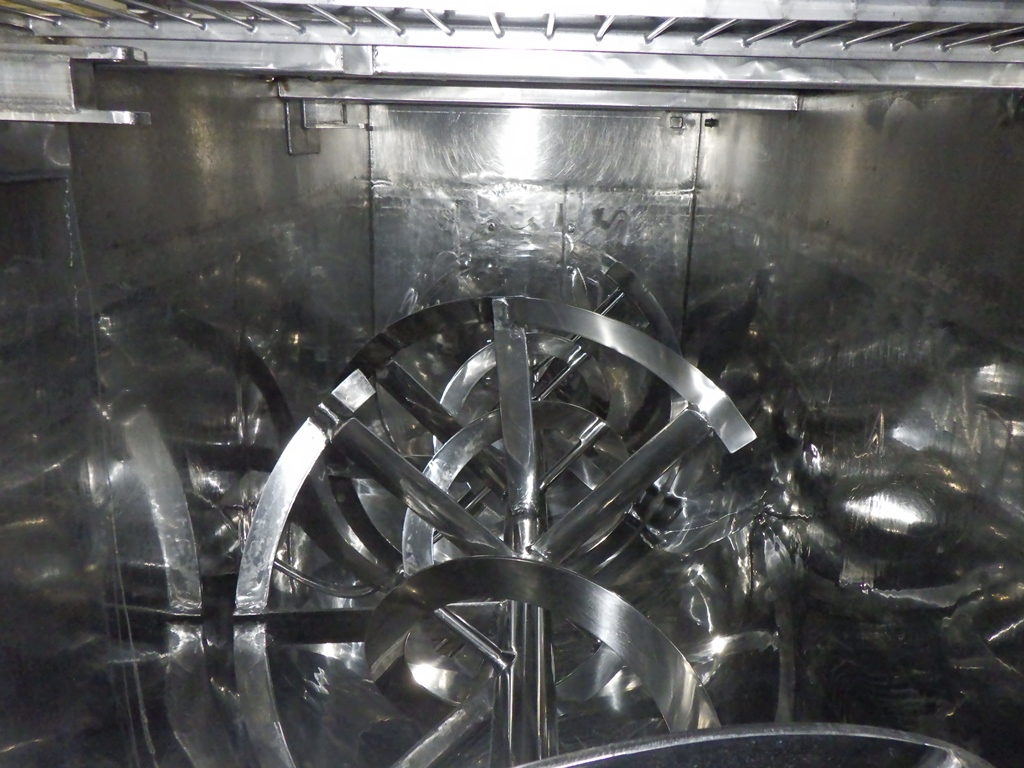

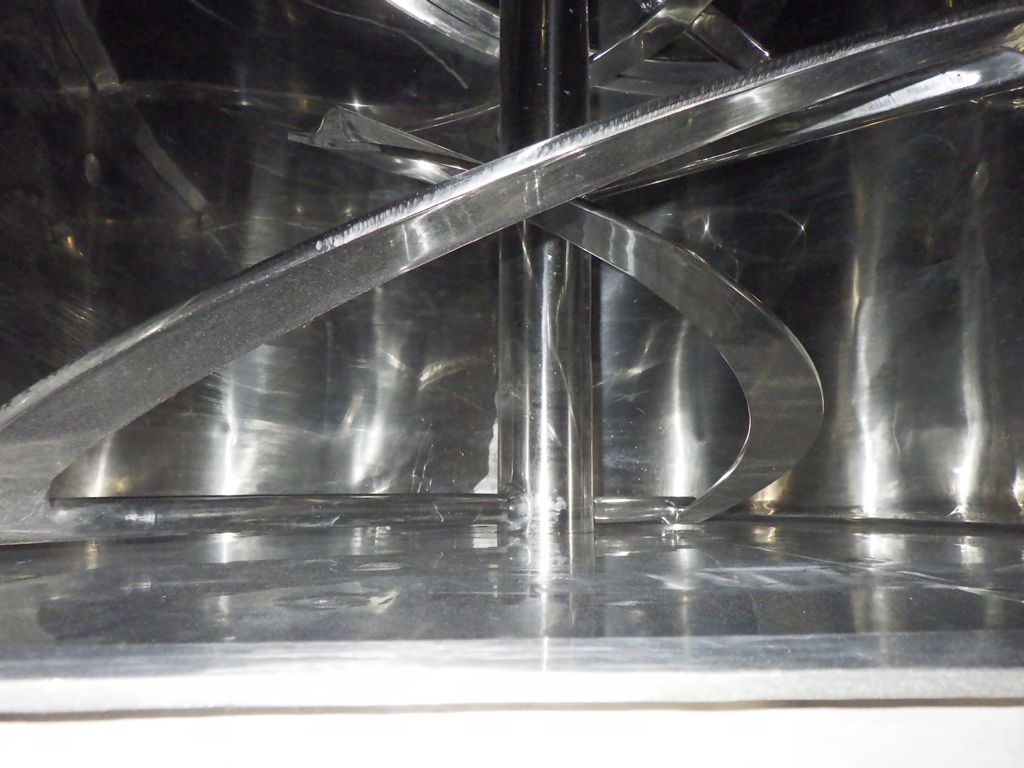

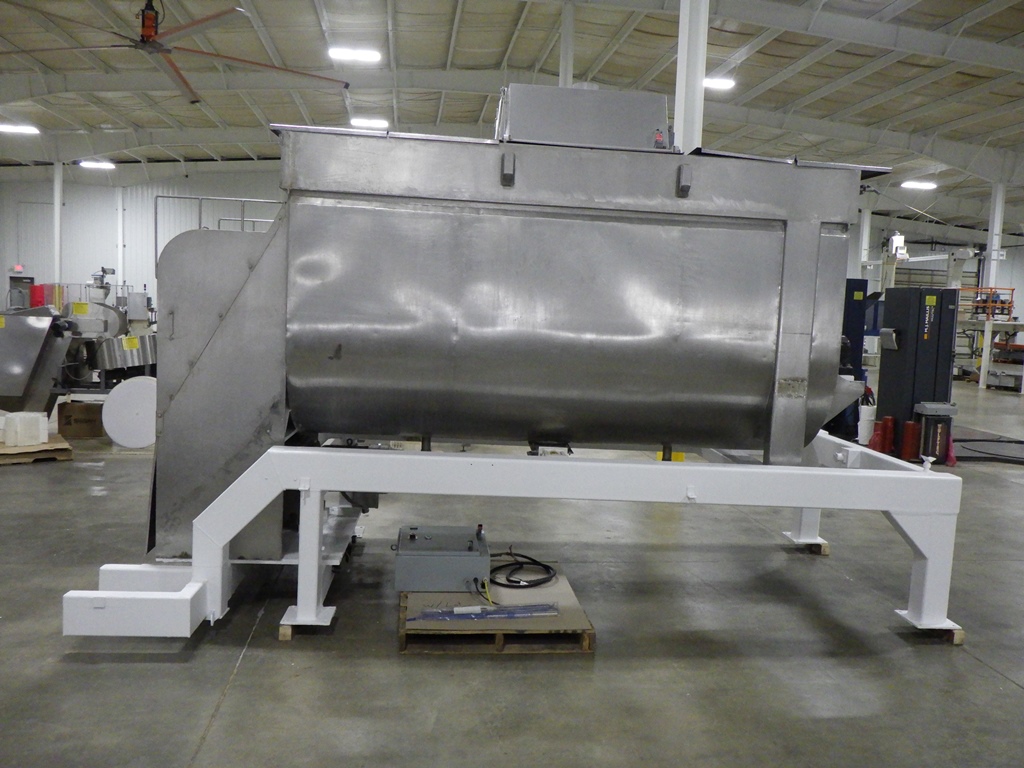

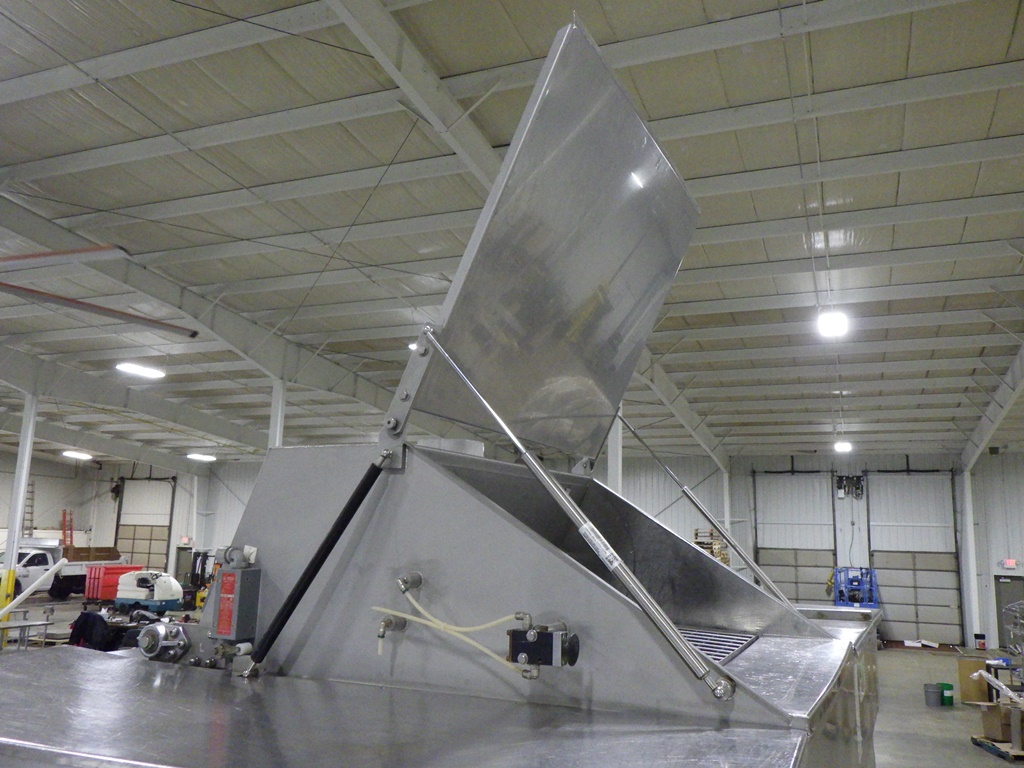

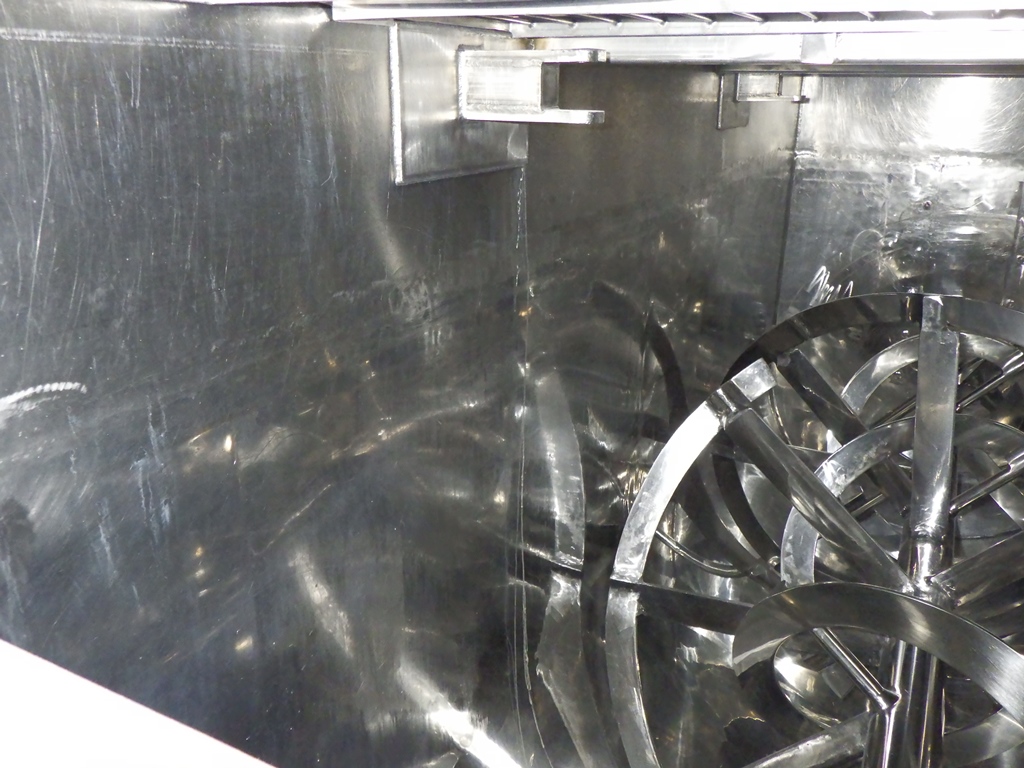

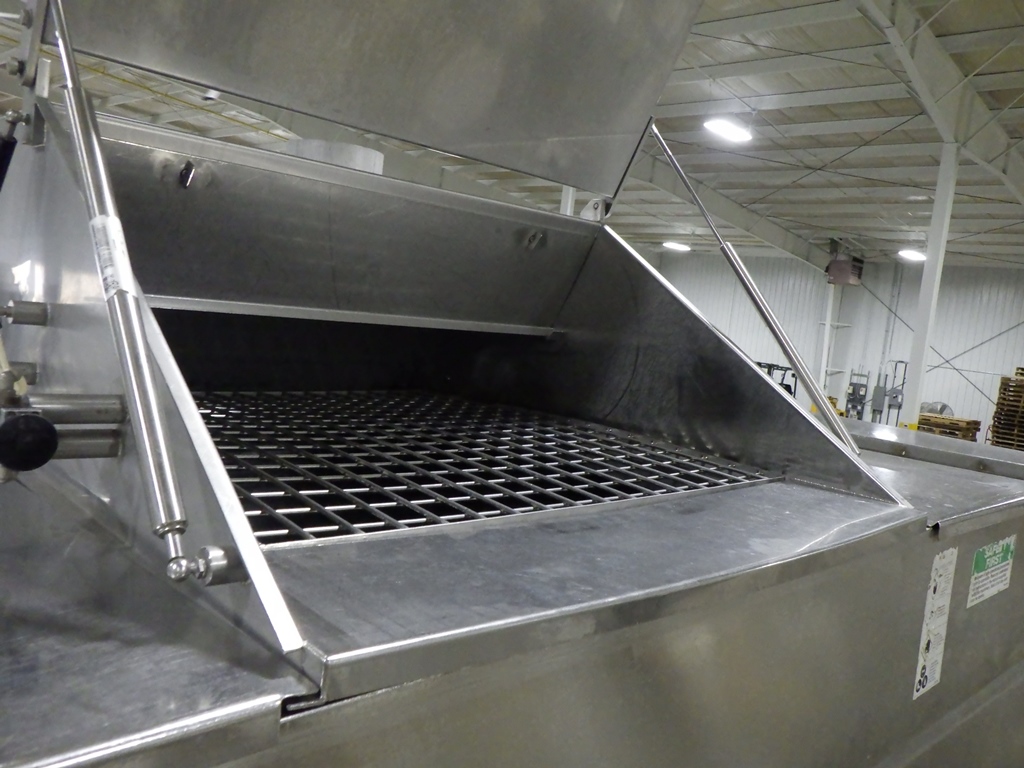

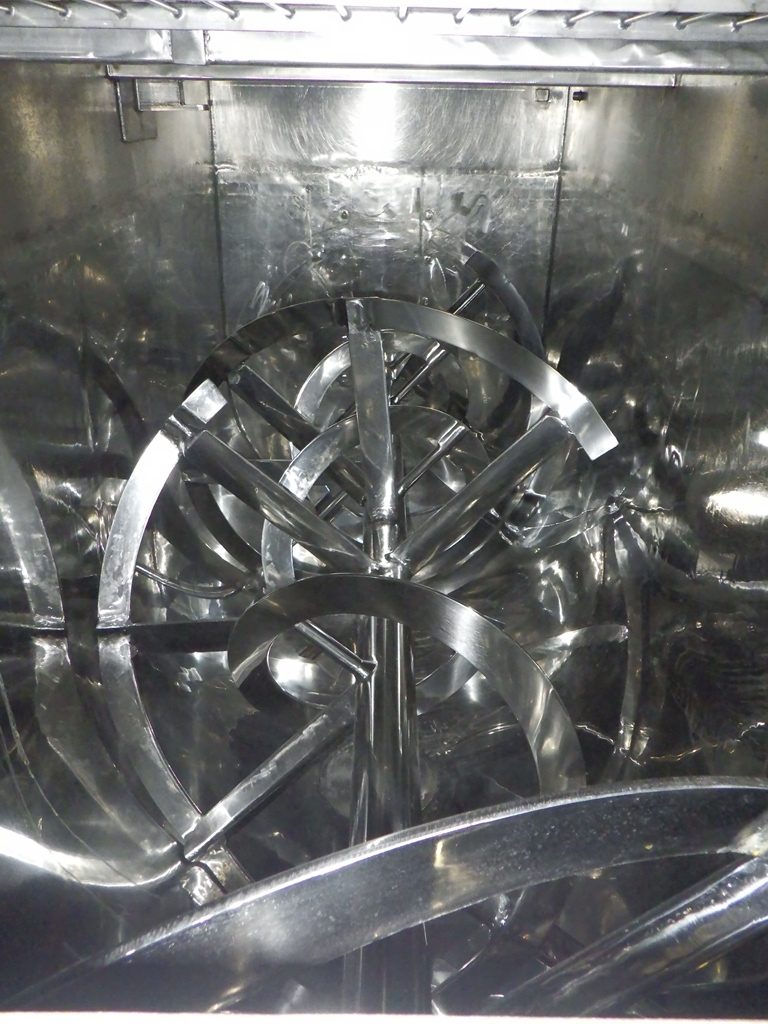

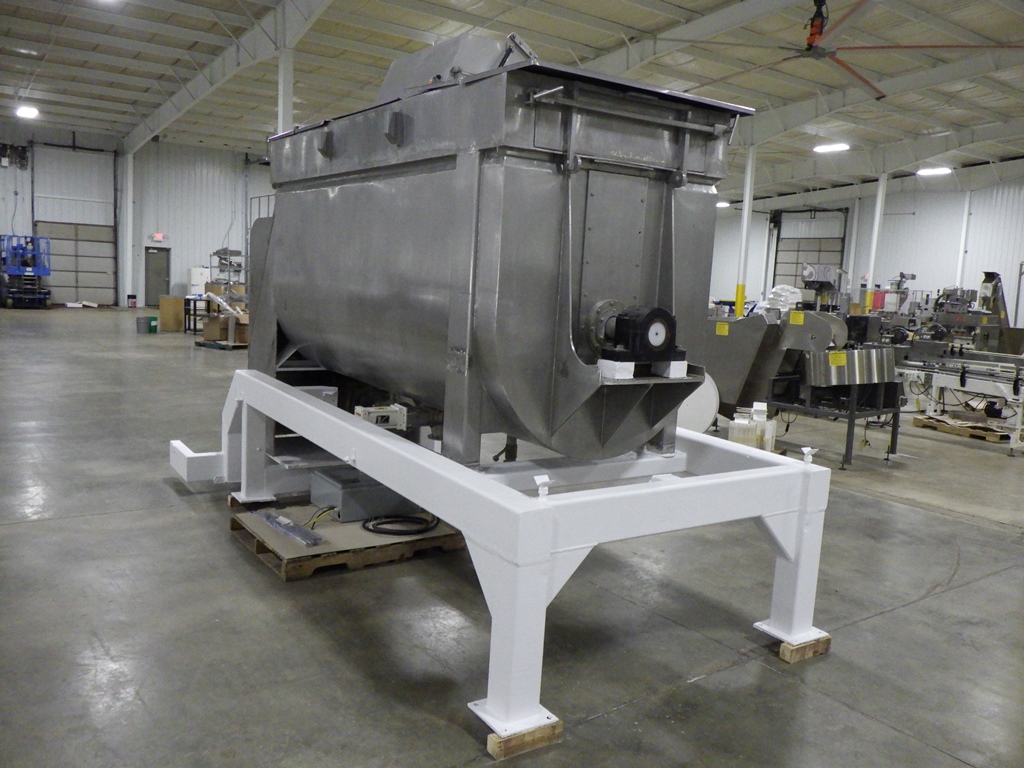

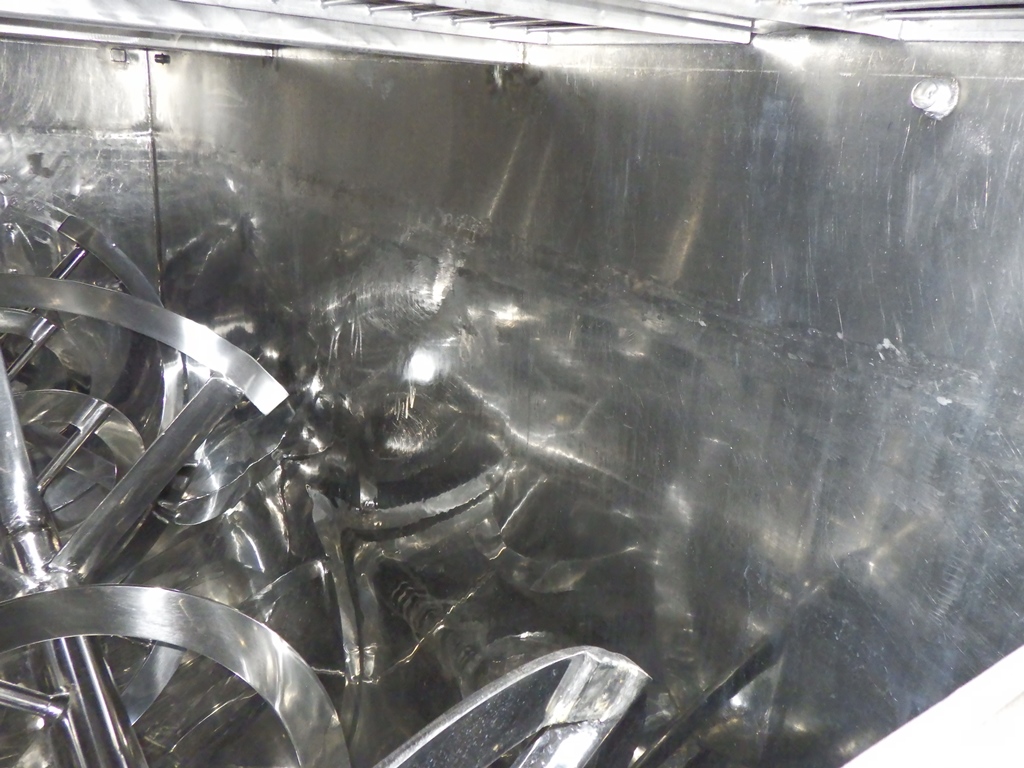

    • Phenix Equipment Co. Stainless Steel Double Ribbon Blender 160 cu ft (approximate). Serial No.: PE5 Job# 56-4004. 25HP 3/60/230/460volt Motor. Chain drive. Inside dimensions 121 in. long x 48 in. wide, 47 in. deep to top of the ribbon, 64 in. total depth. 4.25 in. dia. Center Shaft. Inner ribbon measures 3 in. x .375 in. Outer ribbon measures 2.375 in. x .375 in. Solid cover and grate on top. Center bottom discharge with slide gate 5.75 in. ID. Two bottom injector ports piping measures 2.25 in. OD. O/A Dim: 185 in. long x 93 in. wide x 123 in. tall. Condition: Used.
